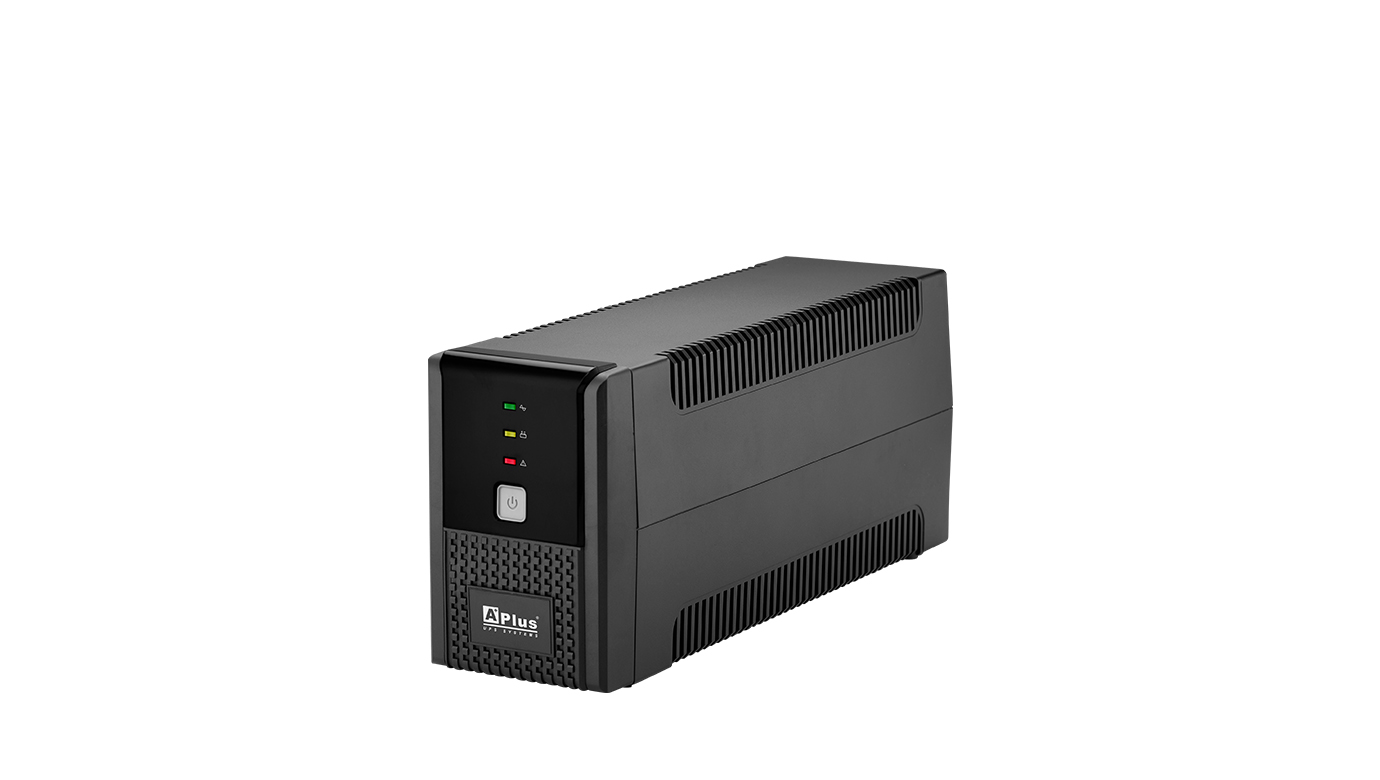

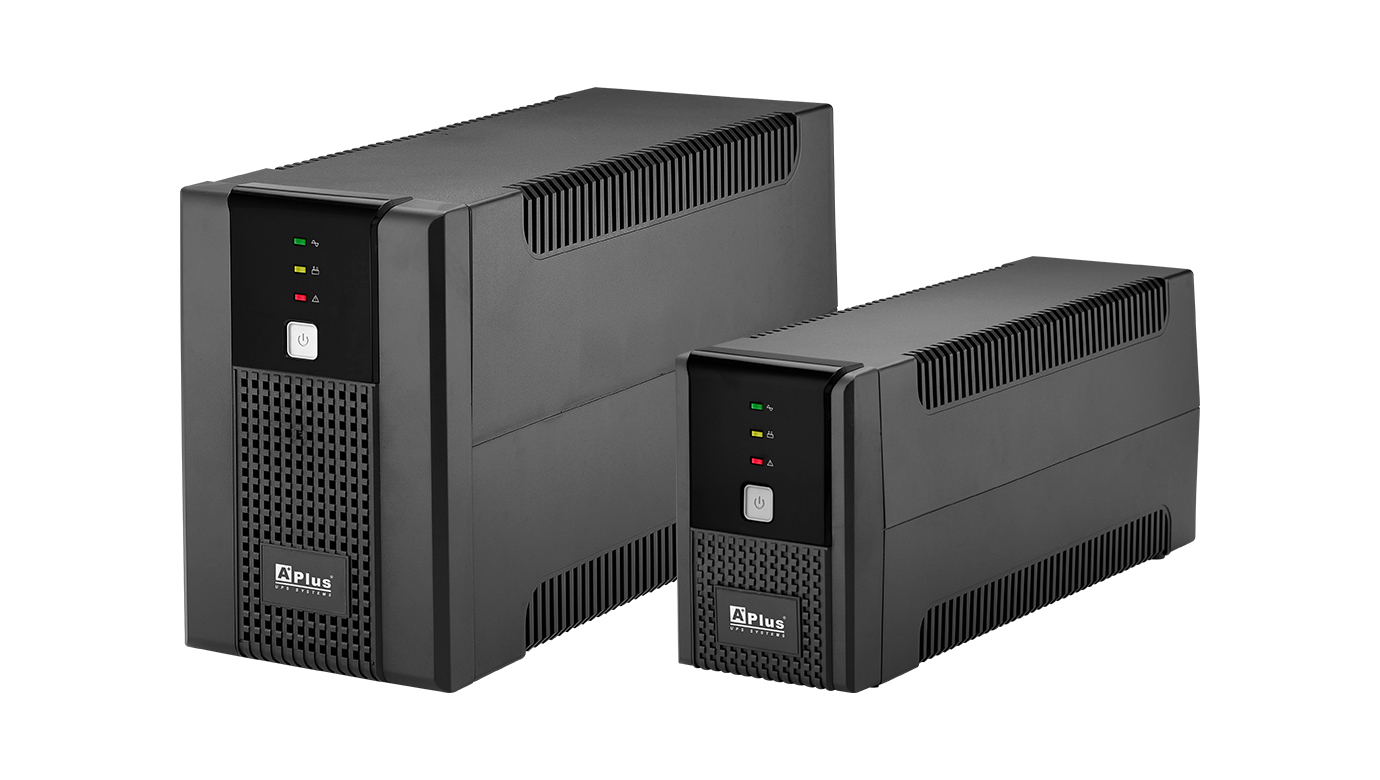

Plus5E Series
600VA to 2000VA
The Plus5E Series 600VA to 2000VA provides guaranteed battery backup power during outage and unsafe fluctuation, along with full protection from damaging surges and spikes.
Unique battery compartment makes it easy, fast and money saving to change battery.
Featuring 600VA to 2000VA integrated with microprocessor controller, voltage stabilizer, LED indicators and battery easy replacement in a stand-alone unit, Plus5E Series UPS is the best choice to protect your data and keep you connected during utility blackout.
●  UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
●  Controlled by a technologically advanced microprocessor guaranteeing high reliability
●  USB port and monitor software is designed to manage UPS status via PC (Optional)
●  Built-in DC start function enables UPS to be started without AC power supplied
●  Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
●  Constant current, constant voltage battery charger (CCCV Battery Charger)
●  UPS will charge itself even though power switch is off (Off mode charging)

●  Over / under voltage protection (UPS will go to battery mode)
●  Lightning / surge protection 175 joules

●  Easy replacement battery design
MODEL Plus5E-600G Plus5E-650G Plus5E-800G Plus5E-850G Plus5E-1000G Plus5E-1200G Plus5E-1500G Plus5E-2000G
Plus5E-U600G Plus5E-U650G Plus5E-U800G Plus5E-U850G Plus5E-U1000G Plus5E-U1200G Plus5E-U1500G Plus5E-U2000G
CAPACITY 600VA/360W 650VA/325W 800VA/480W 850VA/425W 1000VA/600W 1200VA/720W 1500VA/900W 2000VA/1200W
INPUT
Voltage 220/230Vac
Voltage Range -30%, +25%
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation +/-10%
Frequency AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz
Waveform Simulated Sinewave
Transfer Time <6ms (Typical)

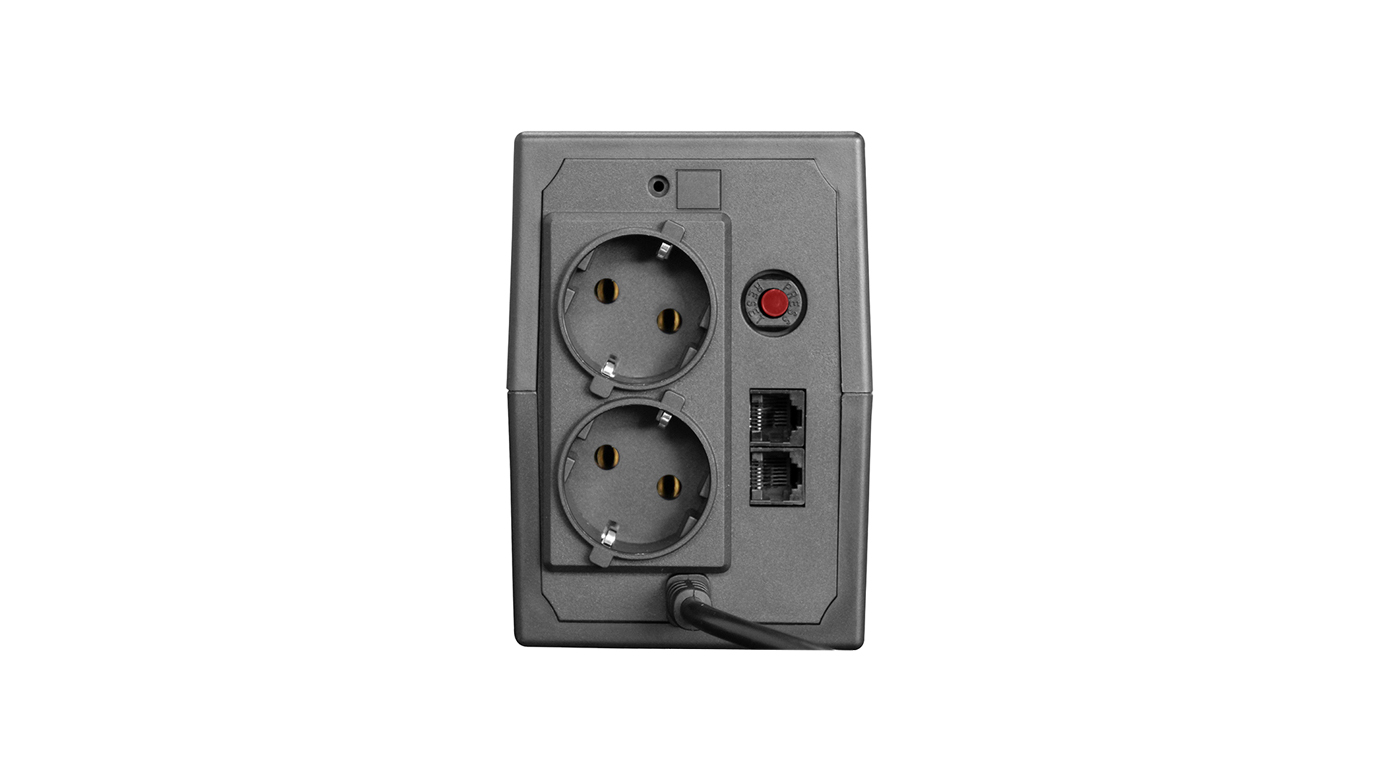

Outlet Schuko *2pcs Backup/AVR/Surge protected

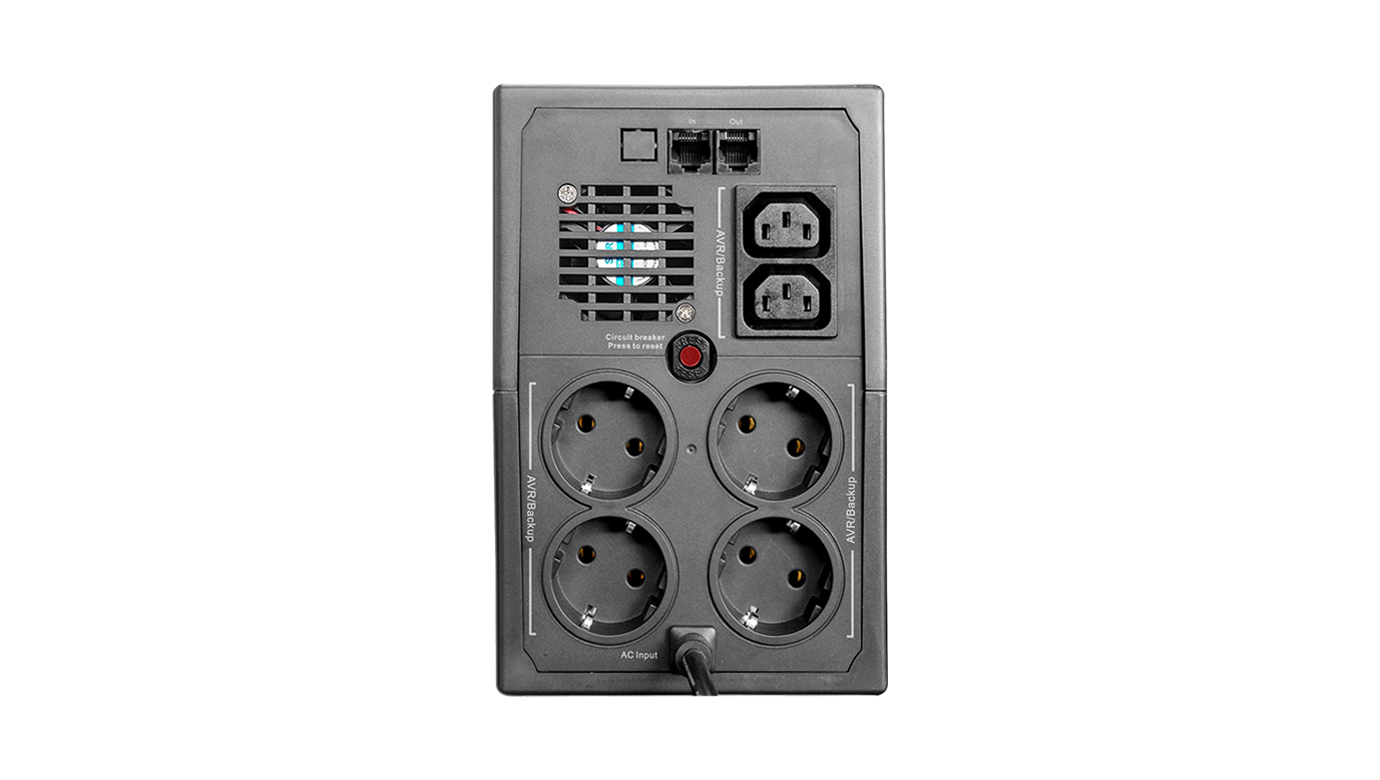

Schuko *4pcs + IEC-320 C13 *2pcs Backup/AVR/Surge protected
BATTERY
Type Maintenance free sealed lead-acid battery
Voltage 12VDC
24VDC
Capacity & Number 12V/7AH*1pc 12V5.6AH*1pc 12V/9AH*1pc 12V/7AH*1pc 12V/7AH*2pcs 12V/7AH*2pcs 12V/9AH*2pcs 12V/9AH*2pcs
Recharge Time 5 hours to 90% after complete discharge
Safety Protection Over Charge & Over Discharge Protection
Advanced Battery Management Yes
DISPLAY
LED Indicators AC Normal (Green), Battery backup (Yellow), UPS cut off / Fault (Red)
AUDIBLE ALARM
Battery Mode Two short tones every 8 seconds
Low Battery Four short tones every second
Overload Beeping continuously
Fault Beeping continuously
MANAGEMENT
USB Communication Port Plus5E series: N/A
Plus5E-U series: Yes, and download software is inlcuded. Monitoring software can support Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2003/2008/2012, Novell NetWare v3.1x/v4.x/v5.x, Linux, FreeBSD, MacOSX10.5.5
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
Acousitc Noise <40dB at 1M
PHYSICAL
Net Weight 4.68kg 4.48kg 5.76kg 4.68kg 9.08kg 9.16kg 10.8kg 11.8kg
Dimension (D*W*H) 315.5*100*141mm 343*135*208mm
*Product specifications are subject to change without further notice.
MODEL NAME POWER RATING MODEL FORMAT INDICATORS USB COMMUNICATION PORT SOCKET TYPE
Plus5E-600G 600VA/360W Tower Type LED N/A Schuko(Type F)
Plus5E-U600G 600VA/360W Tower Type LED YES Schuko(Type F)
Plus5E-650G 650VA/325W Tower Type LED N/A Schuko(Type F)
Plus5E-U650G 650VA/325W Tower Type LED YES Schuko(Type F)
Plus5E-800G 800VA/480W Tower Type LED N/A Schuko(Type F)
Plus5E-U800G 800VA/480W Tower Type LED YES Schuko(Type F)
Plus5E-850G 850VA/425W Tower Type LED N/A Schuko(Type F)
Plus5E-U850G 850VA/425W Tower Type LED YES Schuko(Type F)
Plus5E-1000G 1000VA/600W Tower Type LED N/A Schuko(Type F) +
IEC-320 C13
Plus5E-U1000G 1000VA/600W Tower Type LED YES Schuko(Type F) +
IEC-320 C13
Plus5E-1200G 1200VA/720W Tower Type LED N/A Schuko(Type F) +
IEC-320 C13
Plus5E-U1200G 1200VA/720W Tower Type LED YES Schuko(Type F) +
IEC-320 C13
Plus5E-1500G 1500VA/900W Tower Type LED N/A Schuko(Type F) +
IEC-320 C13
Plus5E-U1500G 1500VA/900W Tower Type LED YES Schuko(Type F) +
IEC-320 C13
Plus5E-2000G 2000VA/1200W Tower Type LED N/A Schuko(Type F) +
IEC-320 C13
Plus5E-U2000G 2000VA/1200W Tower Type LED YES Schuko(Type F) +
IEC-320 C13

*The capacity of connected loading do not exceed the capacity of UPS.
