PlusPRO 5 Series Rack/Tower
6KVA to 10KVA
Battery Pack
Battery Pack

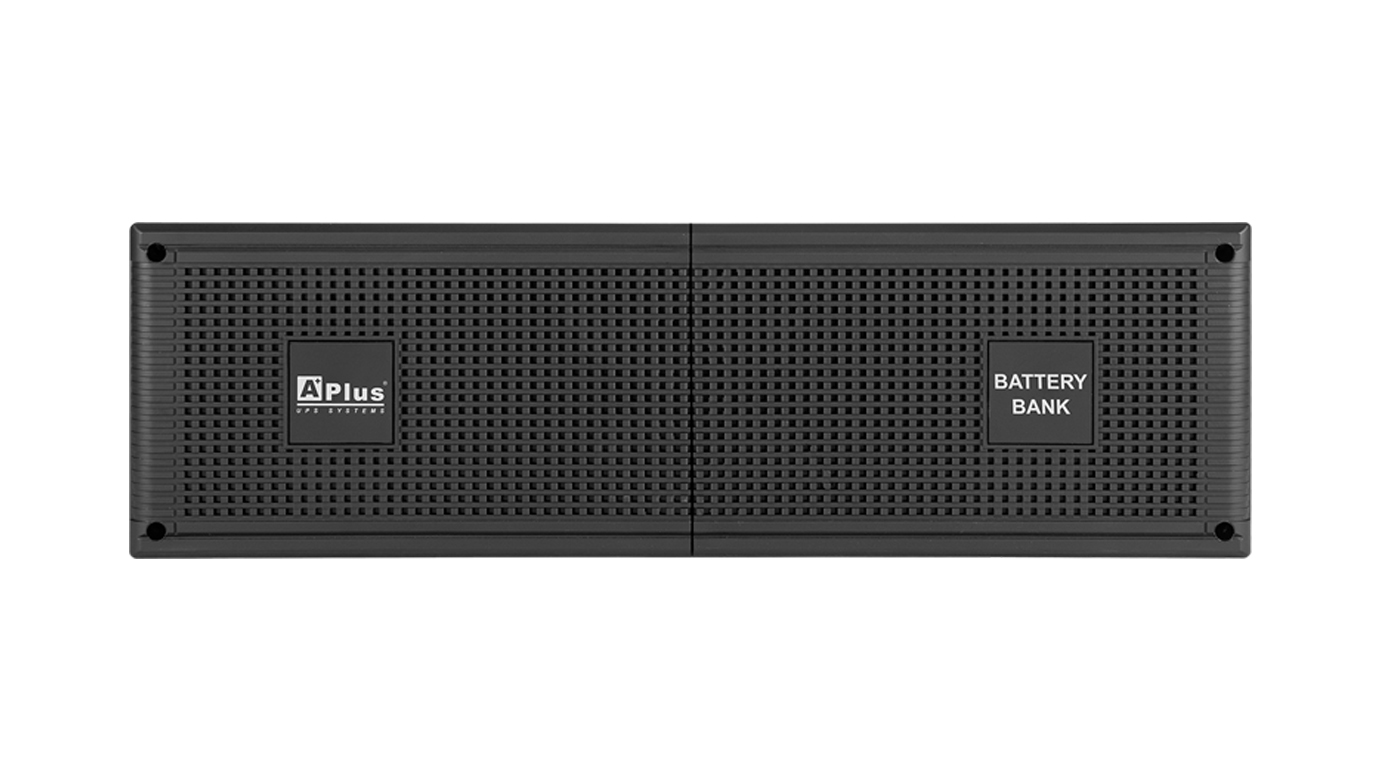

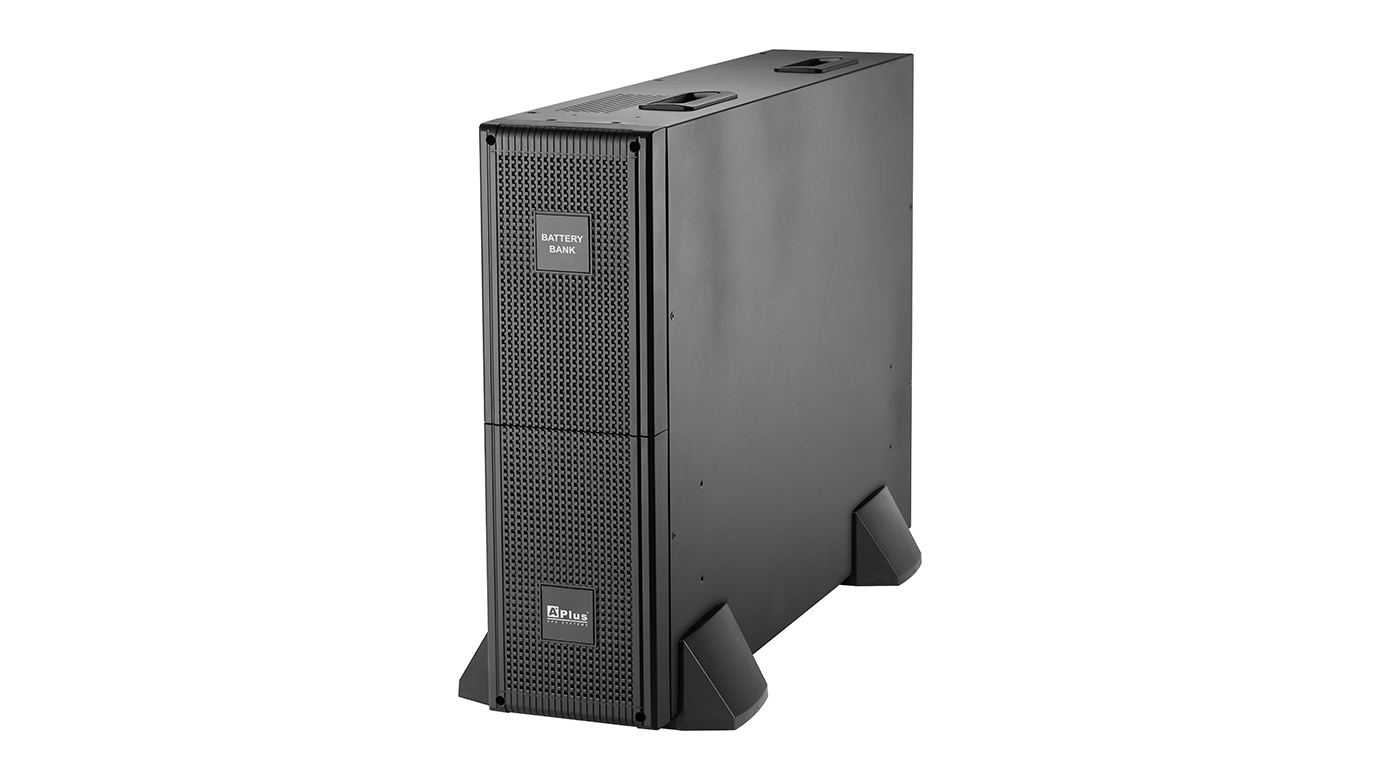

The PlusPRO 5BB-240V external battery pack is connected to PlusPRO 5 Series Rack/Tower 6-10KVA UPS models. External battery pack provides continuous power from the batteries for flexible runtime extension of UPS systems.
● Extended-run battery pack provide flexible runtime for UPS systems
● Advanced battery management included
● Multiple battery pack configuration
● Advanced battery management included
● Multiple battery pack configuration
| MODEL | PlusPRO 5BB-240V-7AH | PlusPRO 5BB-240V-9AH |
| BATTERY | ||
| Type | Maintenance-free Lead Acid battery | |
| Voltage | 240VDC | 240VDC |
| Capacity | 12V/7AH*20pcs | 12V/9AH*20pcs |
| Expected Battery Life | 3-5 years | |
| ENVIRONMENT | ||
| Operating Temperature | 0°C-40°C (32°F-104°F) | |
| Humidity | 0-95% (Non-condensing) | |
| PHYSICAL | ||
| Rack Height | Tower/Rack: 3U | |
| Dimension (D*W*H) | 610*440*132(3U)mm | |
