PlusPRO 4 Series Rack/Tower
1KVA to 3KVA

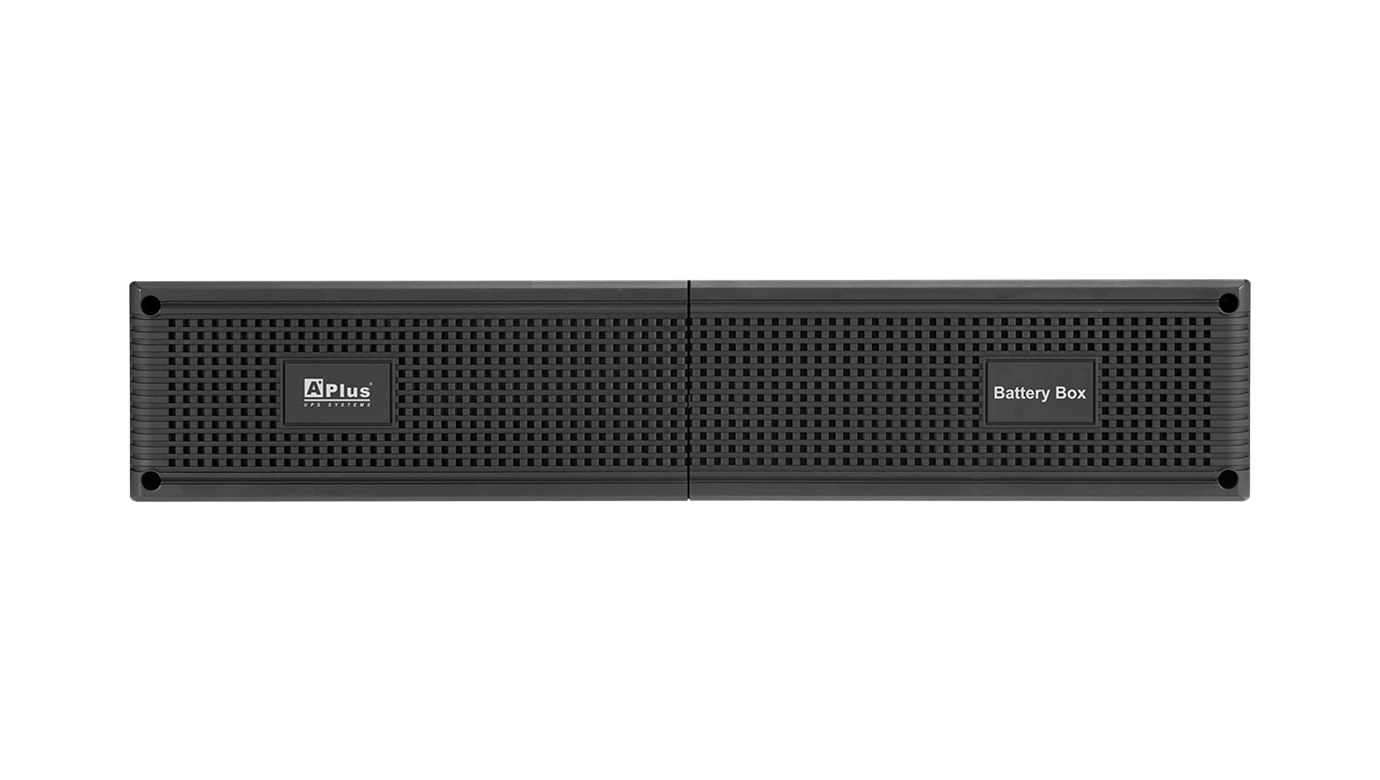

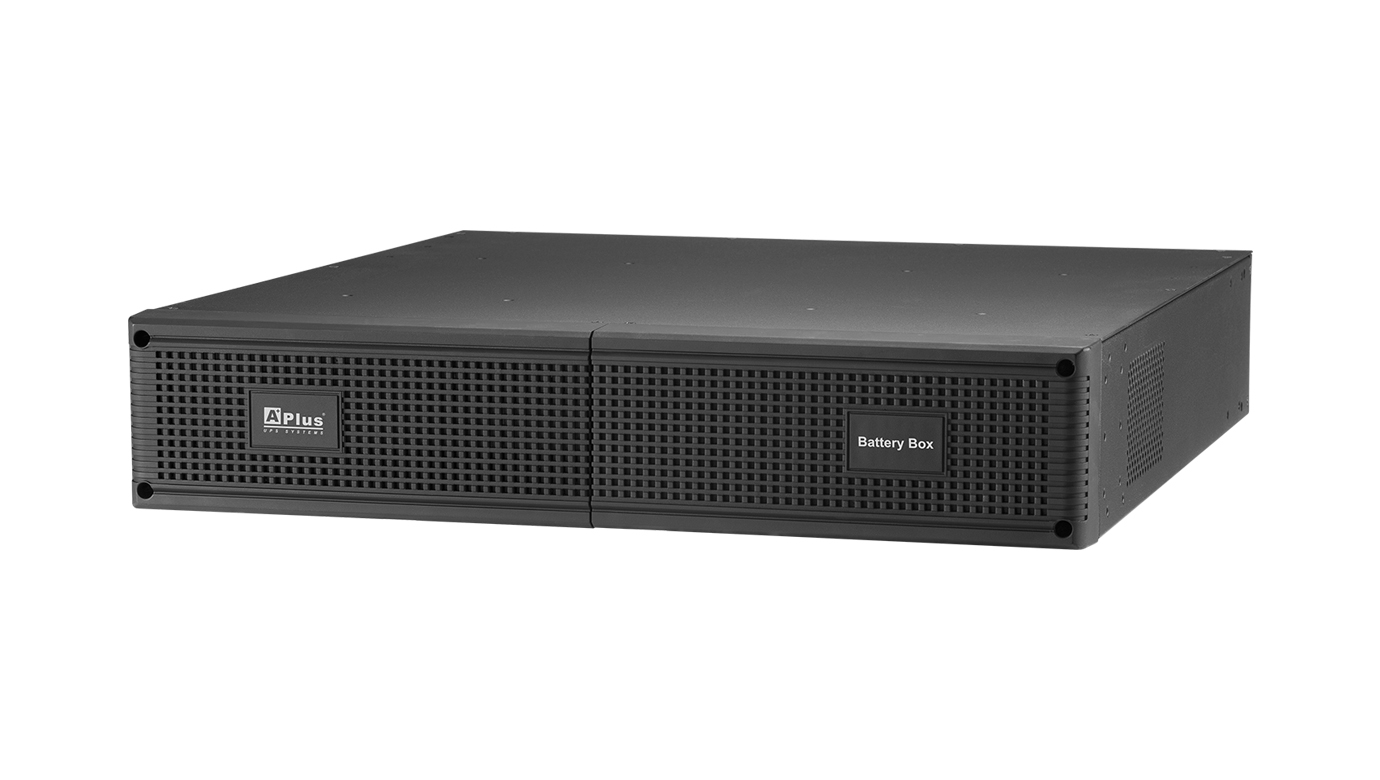

Battery Pack
Battery Pack
The PlusPRO 4BB-24V external battery pack is connected to PlusPRO 4 Series Rack/Tower 1KVA UPS model. The PlusPRO 4BB-48V external battery pack is connected to PlusPRO 4 Series Rack/Tower 2KVA UPS model. The PlusPRO 4BB-72V external battery pack is connected to PlusPRO 4 Series Rack/Tower 3KVA UPS model. External battery pack provides continuous power from the batteries for flexible runtime extension of UPS systems.
● Extended-run battery pack provide flexible runtime for UPS systems
● Advanced battery management included
● Multiple battery pack configuration
● Advanced battery management included
● Multiple battery pack configuration
| MODEL | PlusPRO 4BB-24V-28AH | PlusPRO 4BB-48V-14AH | PlusPRO 4BB-72V-7AH |
| BATTERY | |||
| Type | Maintenance-free Lead Acid battery | ||
| Voltage | 24VDC | 48VDC | 72VDC |
| Capacity | 12V/7AH*2pcs*4sets | 12V/7AH*4pcs*2sets | 12V/7AH*6pcs*1set |
| Expected Battery Life | 3-5 years | ||
| ENVIRONMENT | |||
| Operting Temperature | 0°C-40°C (32°F-104°F) | ||
| Humidity | 0-95% (Non-condensing) | ||
| PHYSICAL | |||
| Rack Height | Tower/Rack: 2U | ||
| Dimension (D*W*H) | 480*440*88(2U)mm | ||
| MODEL | PlusPRO 4BB-24V-36AH | PlusPRO 4BB-48V-18AH | PlusPRO 4BB-72V-9AH |
| BATTERY | |||
| Type | Maintenance-free Lead Acid battery | ||
| Voltage | 24VDC | 48VDC | 72VDC |
| Capacity | 12V/9AH*2pcs*4sets | 12V/9AH*4pcs*2sets | 12V/9AH*6pcs*1set |
| Expected Battery Life | 3-5 years | ||
| ENVIRONMENT | |||
| Operting Temperature | 0°C-40°C (32°F-104°F) | ||
| Humidity | 0-95% (Non-condensing) | ||
| PHYSICAL | |||
| Rack Height | Tower/Rack: 2U | ||
| Dimension (D*W*H) | 480*440*88(2U)mm | ||
