PlusPRO 6 Series Tower
2KVA to 3KVA
Battery Pack
Battery Pack

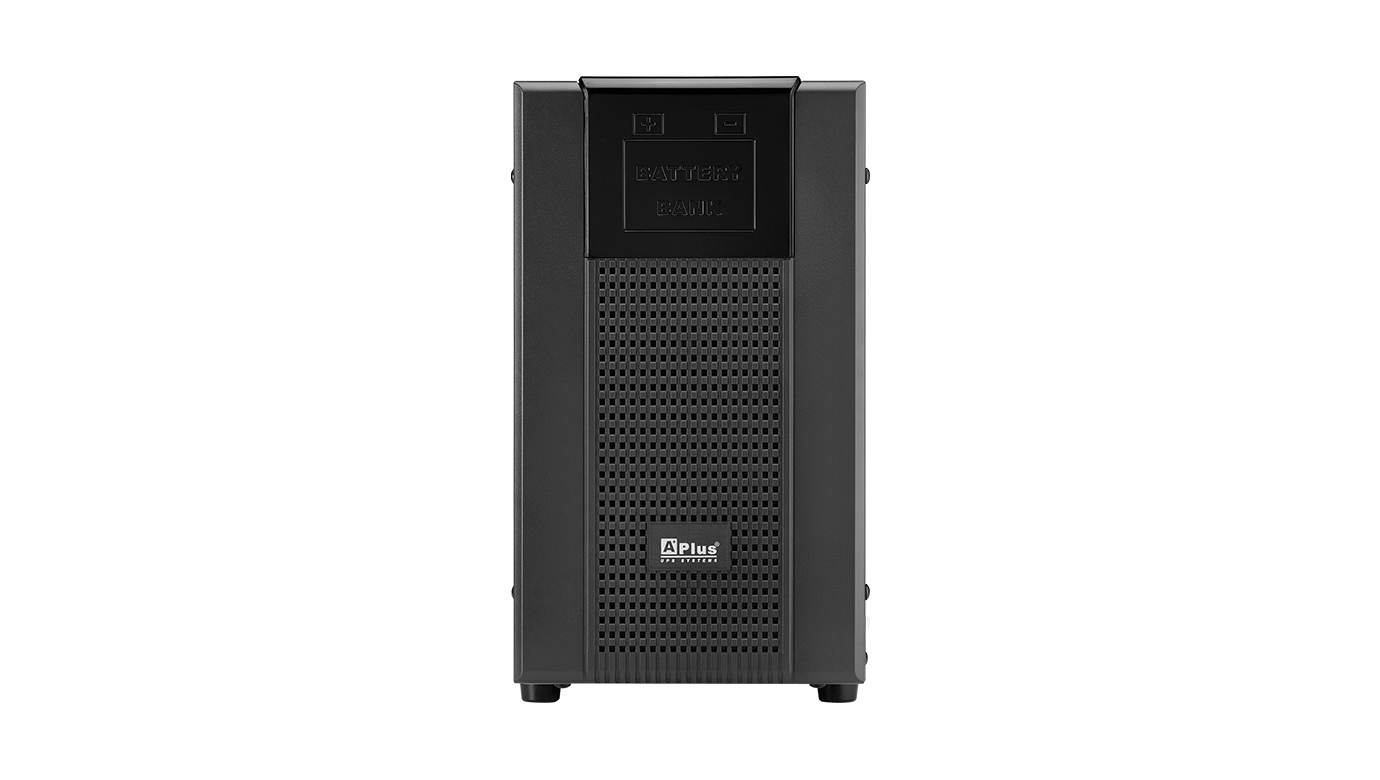

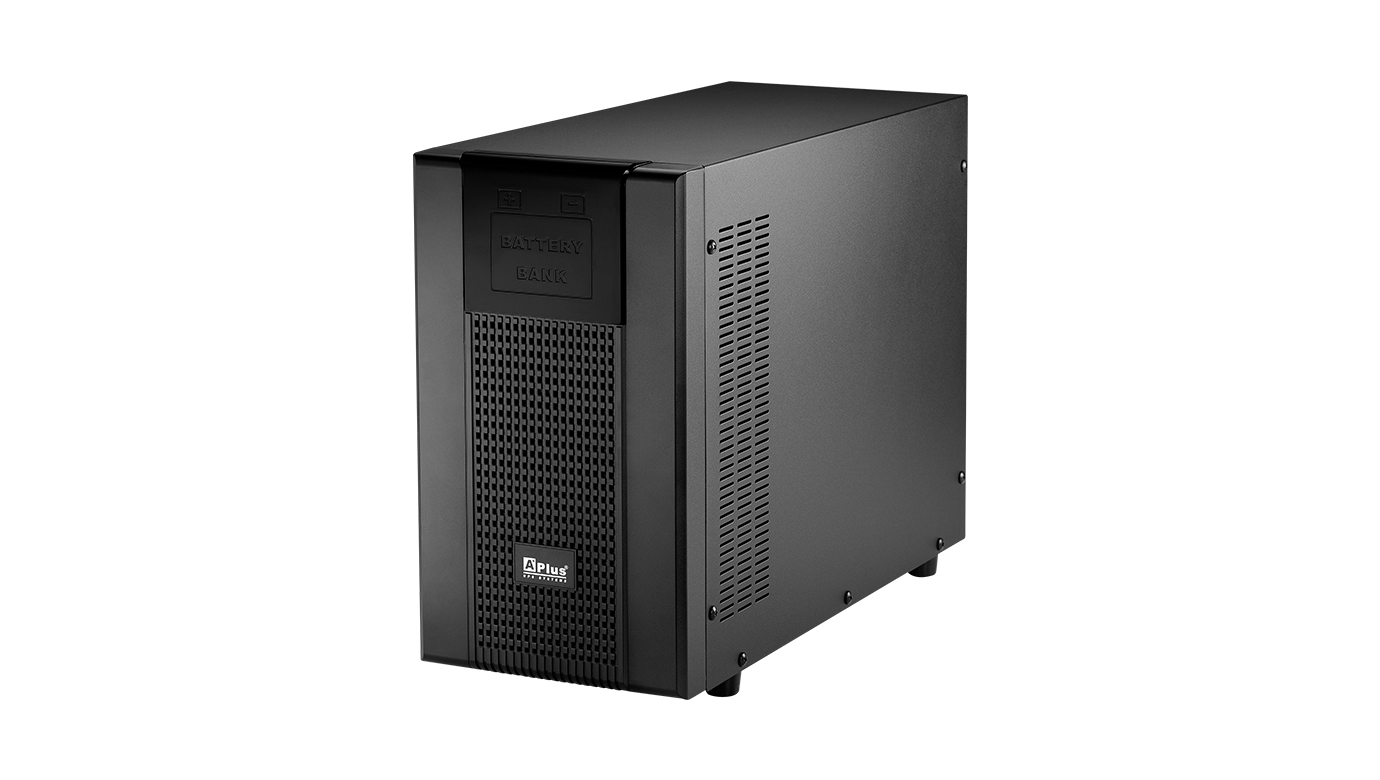

The PlusPRO 6BB-48V external battery pack is connected to PlusPRO 6 Series Tower 2KVA UPS models. The PlusPRO 6BB-72V external battery pack is connected to PlusPRO 6 Series Tower 3KVA UPS models. External battery pack provides continuous power from the batteries for flexible runtime extension of UPS systems.
● Extended-run battery pack provide flexible runtime for UPS systems
● Advanced battery management included
● Multiple battery pack configuration
● Advanced battery management included
● Multiple battery pack configuration
| MODEL | PlusPRO 6BB-48V-28AH | PlusPRO 6BB-72V-14AH |
| BATTERY | ||
| Type | Maintenance-free Lead Acid battery | |
| Voltage | 48VDC | 72VDC |
| Capacity | 12V/7AH*4pcs*4sets | 12V/7AH*6pcs*2sets |
| Expected Battery Life | 3-5 years | |
| ENVIRONMENT | ||
| Operating Temperature | 0°C-40°C (32°F-104°F) | |
| Humidity | 0-95% (Non-condensing) | |
| PHYSICAL | ||
| Dimension (D*W*H) | 560*193*346mm | |
| MODEL | PlusPRO 6BB-48V-36AH | PlusPRO 6BB-72V-18AH |
| BATTERY | ||
| Type | Maintenance-free Lead Acid battery | |
| Voltage | 48VDC | 72VDC |
| Capacity | 12V/9AH*4pcs*4sets | 12V/9AH*6pcs*2sets |
| Expected Battery Life | 3-5 years | |
| ENVIRONMENT | ||
| Operating Temperature | 0°C-40°C (32°F-104°F) | |
| Humidity | 0-95% (Non-condensing) | |
| PHYSICAL | ||
| Dimension (D*W*H) | 560*193*346mm | |
