PlusPRO 6 Series Tower
1000VA
Battery Pack
Battery Pack

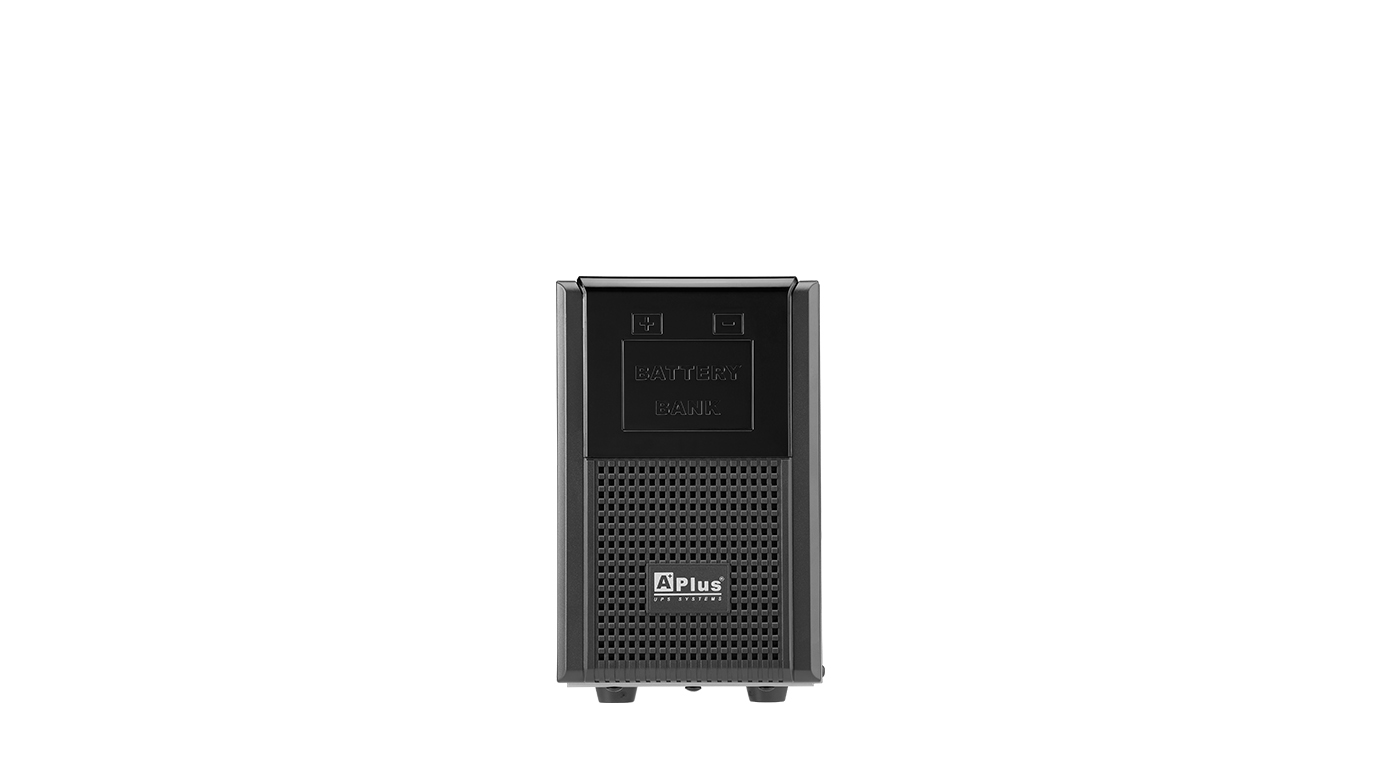

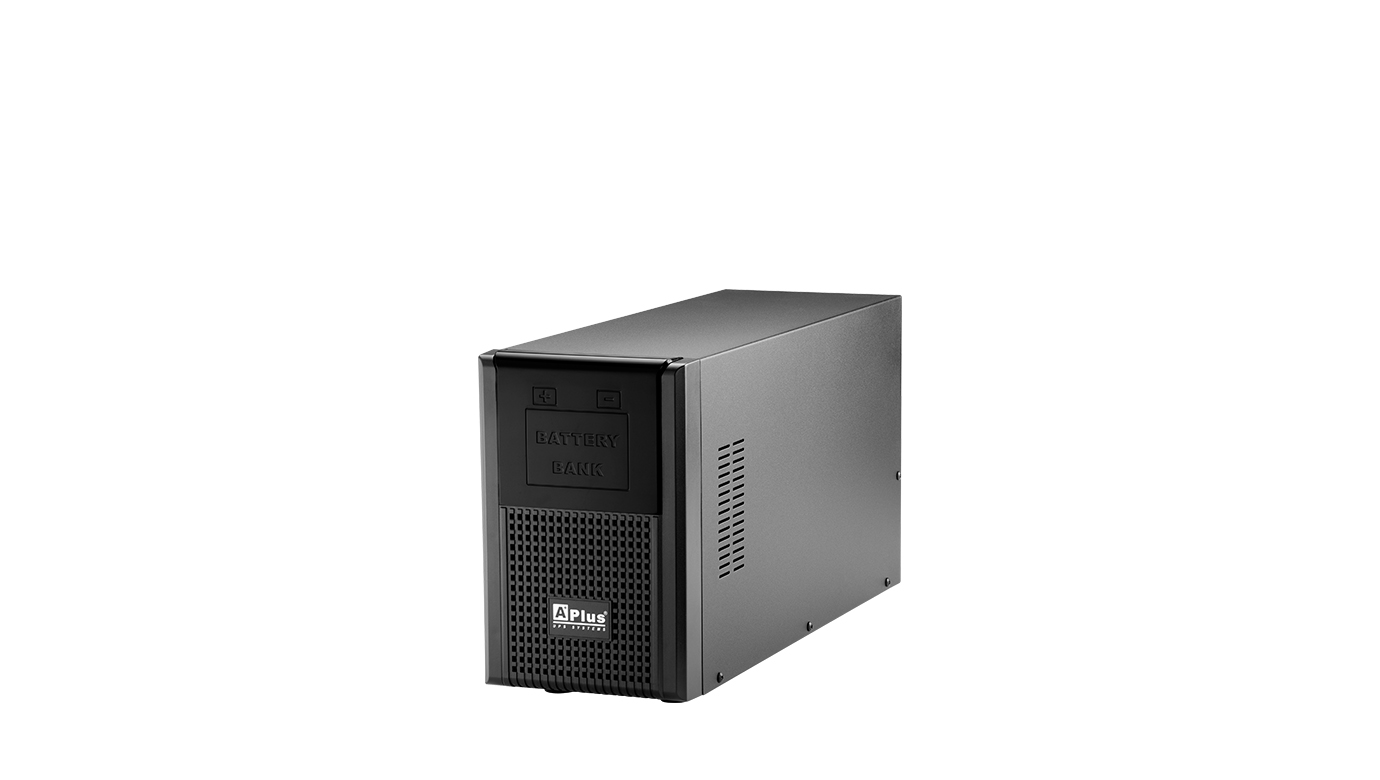

The PlusPRO 6BB-24V-21AH external battery pack is connected to PlusPRO 6 Series Tower 1000VA UPS models. External battery pack provides continuous power from the batteries for flexible runtime extension of UPS systems.
● Extended-run battery pack provide flexible runtime for UPS systems
● Advanced battery management included
● Multiple battery pack configuration
● Advanced battery management included
● Multiple battery pack configuration
| MODEL | PlusPRO 6BB-24V-21AH |
| BATTERY | |
| Type | Maintenance-free Lead Acid battery |
| Voltage | 24VDC |
| Capacity | 12V/7AH*2pcs*3sets |
| Expected Battery Life | 3-5 years |
| ENVIRONMENT | |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Humidity | 0-95% (Non-condensing) |
| PHYSICAL | |
| Dimension (D*W*H) | 420*145*230mm |
| MODEL | PlusPRO 6BB-24V-27AH |
| BATTERY | |
| Type | Maintenance-free Lead Acid battery |
| Voltage | 24VDC |
| Capacity | 12V/9AH*2pcs*3sets |
| Expected Battery Life | 3-5 years |
| ENVIRONMENT | |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Humidity | 0-95% (Non-condensing) |
| PHYSICAL | |
| Dimension (D*W*H) | 420*145*230mm |
