PlusMetered 3 Series
30AMPS

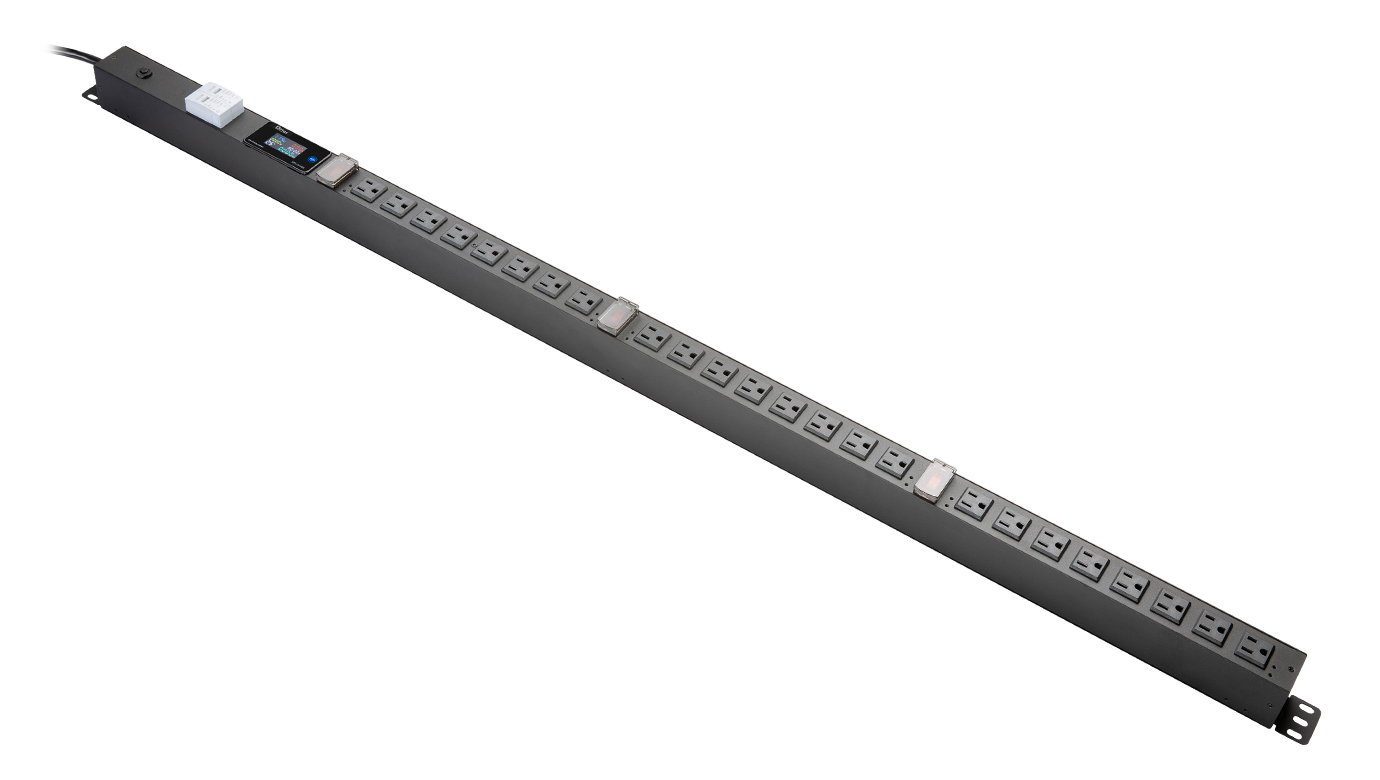

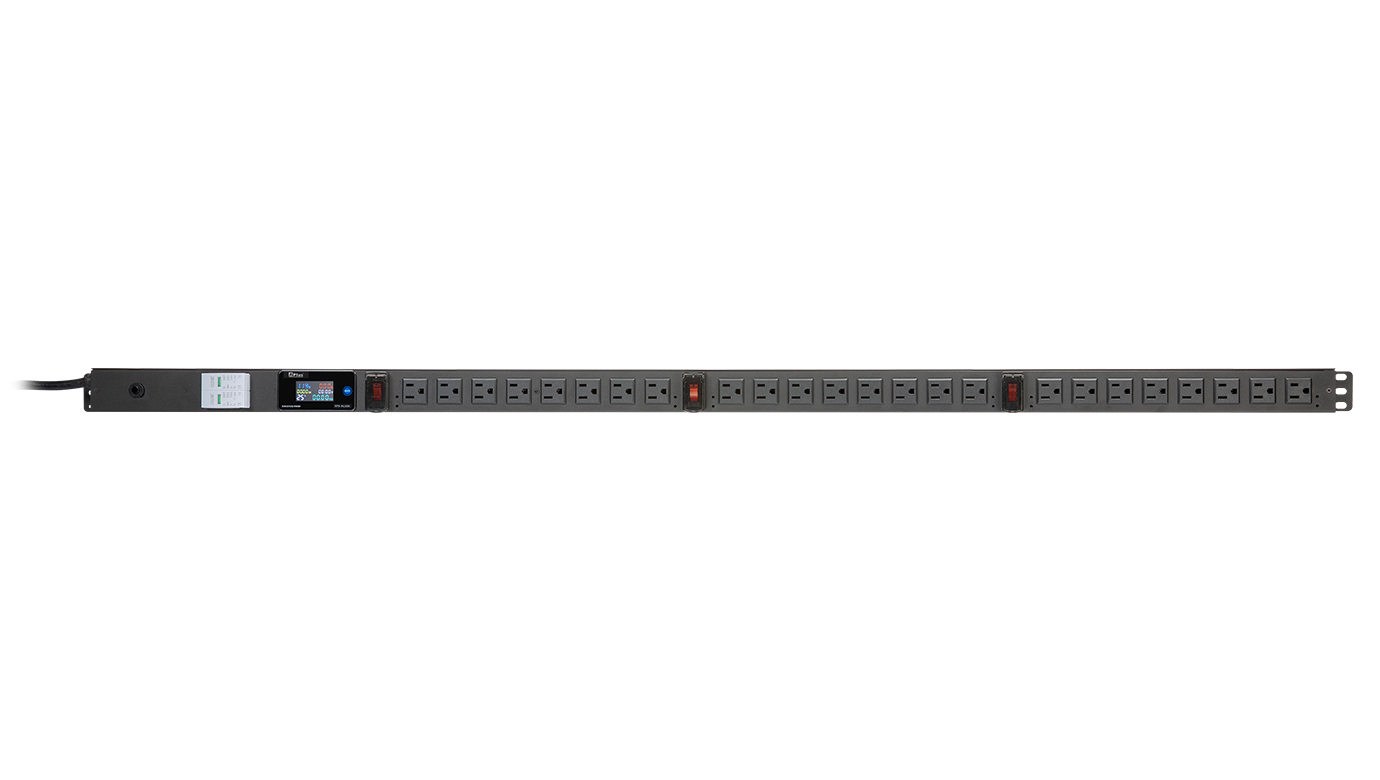

The PlusMetered 3-30A is a rack PDU with 24pcs output outlets that efficiently distributes power to devices within the rack and includes features for power control and measurement. The LCD screen displays six key parameters with ±1% measurement accuracy. The PlusMetered 3-30A includes 3 independent control switches with automatic overload protection to safeguard connected devices and maintain stable power delivery. Featuring hot-swappable MOV surge protection, the module can be replaced without shutting down the system if damaged by lightning. Built with a durable metal housing, an extended power cable, and high heat tolerance, it ensures reliable operation in server rooms, homes, and commercial environments.
Measurement +/-1% accuracy to measure six parameters of AC power

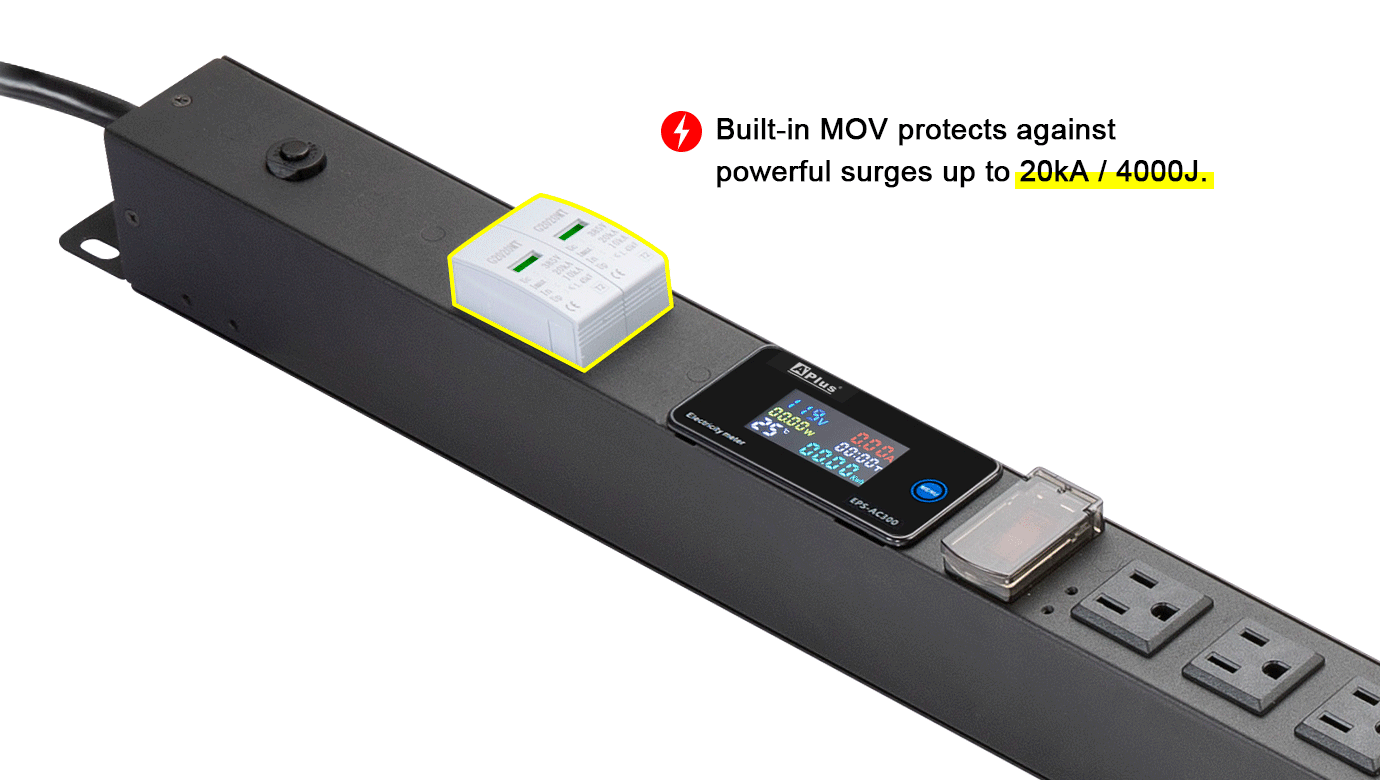

Features hot-swappable MOV surge protection

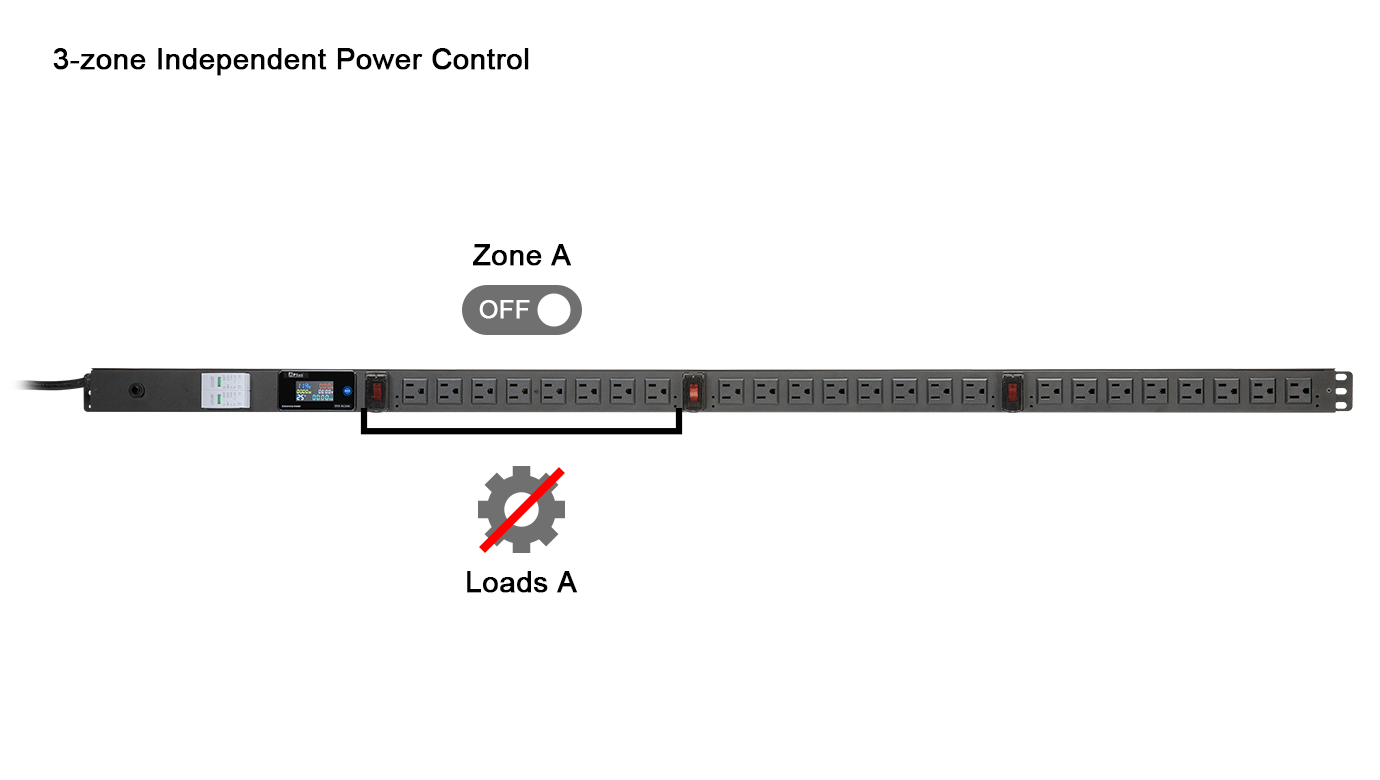

Equipped with 3 independent control switches
High temperature environment operation
Durable Metal Housing
Cord Retention Tray
Overload Protection
Surge Suppression
MODEL PlusMetered 3-30A
INPUT
Nominal Voltage 110Vac-240Vac
Frequency 50Hz-60Hz
Max, Current 30A
Type of Connection NEMA 5-30P *1
Length of Cable 3M
OUTPUT
Over Current Protection 30A
Q'ty of Socket 24
Type of Socket NEMA 5-15R
DISPLAY

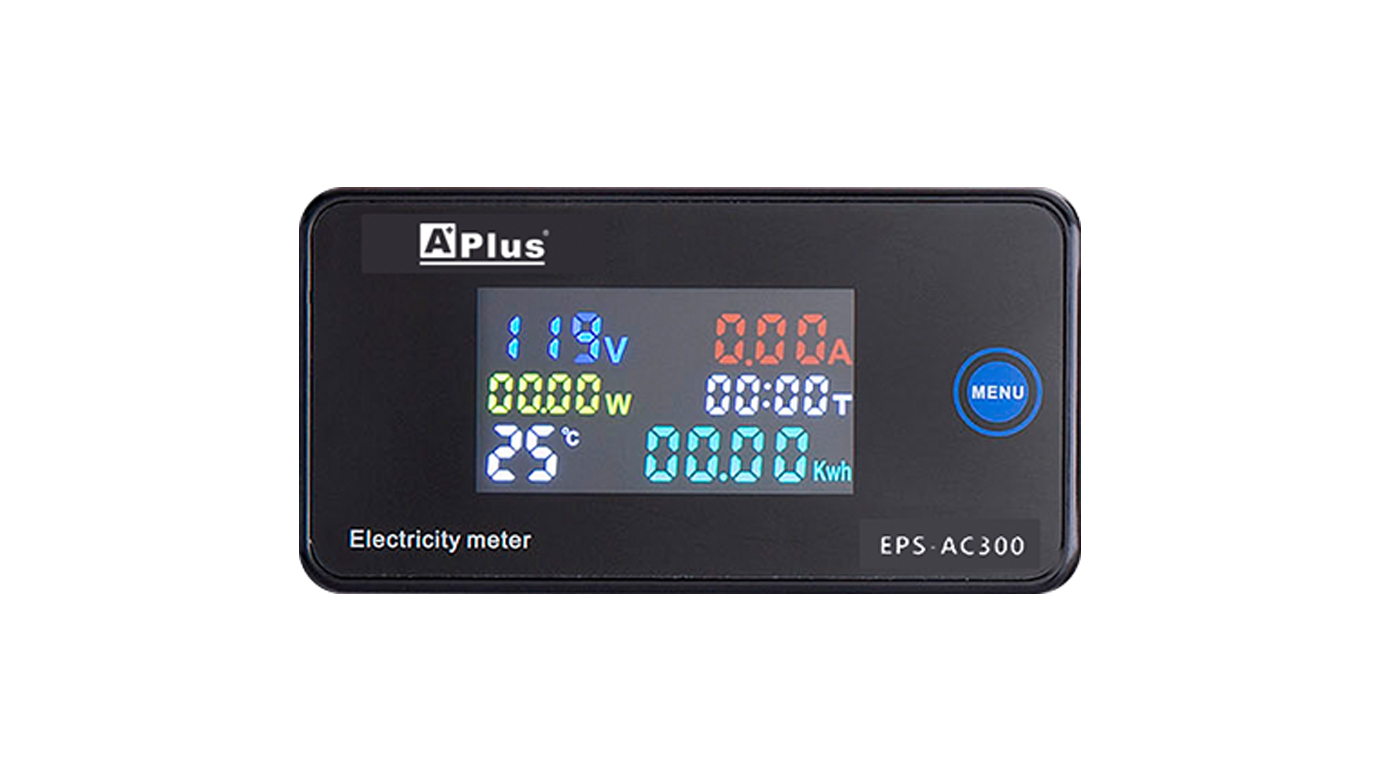

LCD AC voltage, AC current, active power, power factor, frequency and total power consumption
MEASUREMENT
Voltage AC 40.0-300.0V(110Vac-240Vac Universal)
Current 0.00-100.0A(110Vac-240Vac Universal)
Active Power 0-30000W / 0-45000W
Frequency 45.0Hz-65.0Hz
Total Power Consumption 0-99999Kwh
Power Facotor 0.00-1.00PF
SURGE PROTECTION
Max. Total Surge Absorption Current 20,000Amp.
Max. Total Surge Absorption Energy 4000Joules
PHYSICAL
Rack Height 1U
Cord Retention Tray Optional
Independent Control Switch 3pcs
Dimension(L*W*H) 1320*65*45mm
Weight 3.4kgs

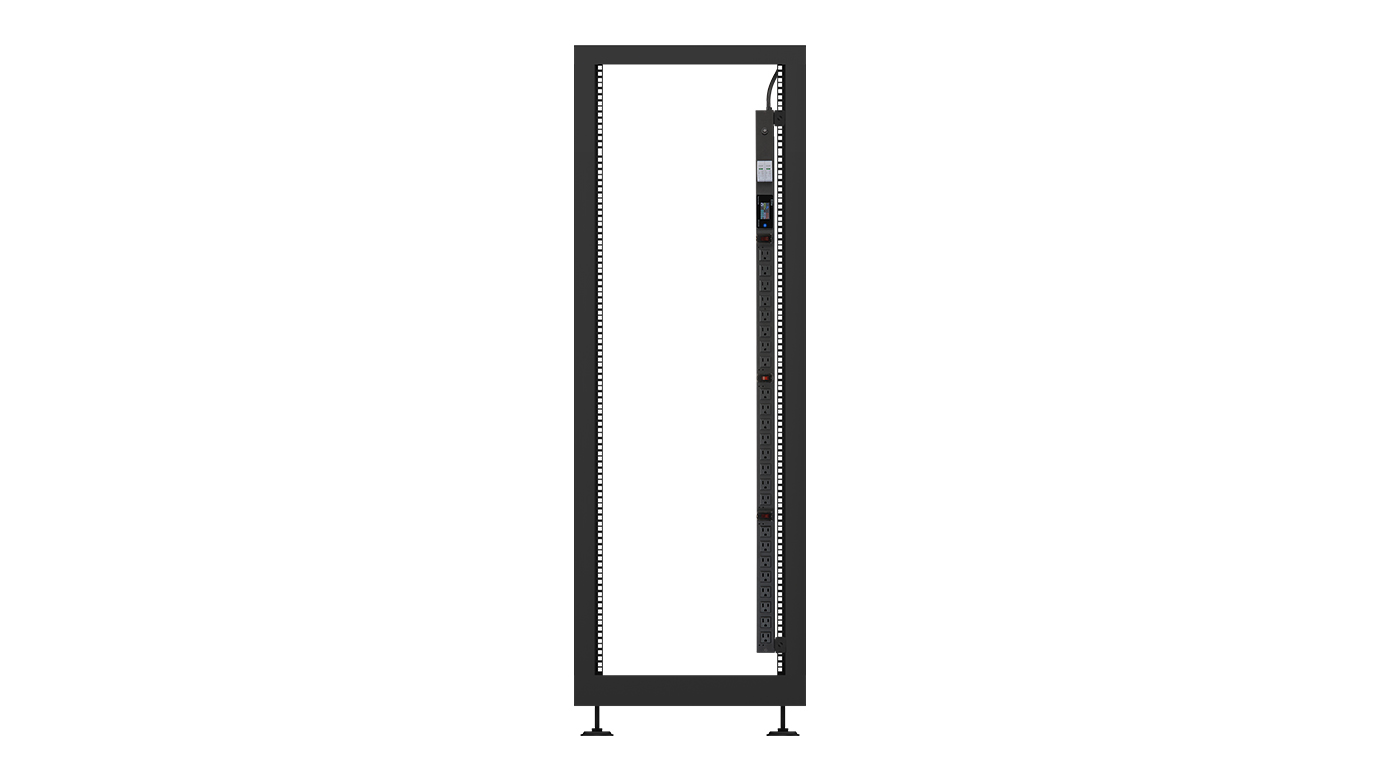

Installation Format Vertical
ENVIRONMENT
Operating Temperature 0-50°C
Humidity 0-95%
*Product specifications are subject to change without further notice.
