PlusBasic 1 Series
15AMPS

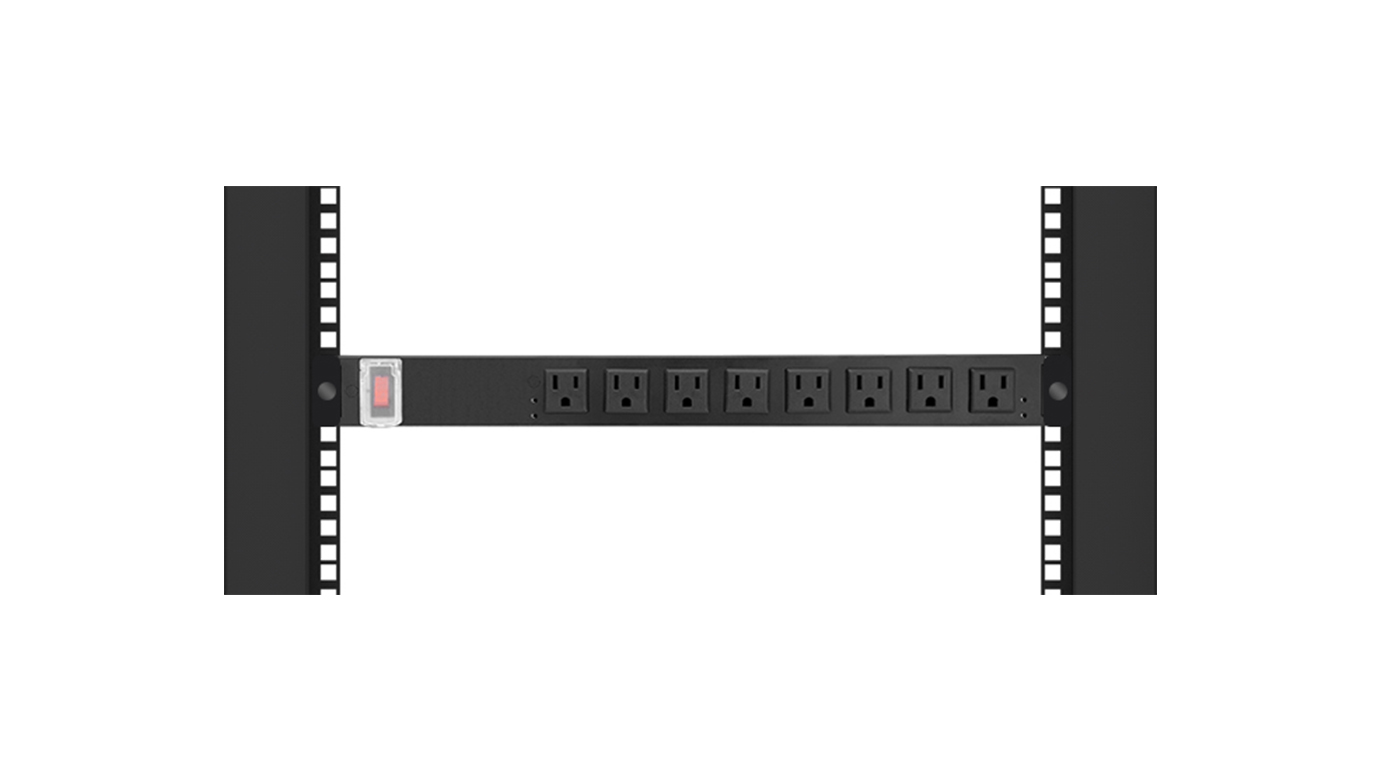

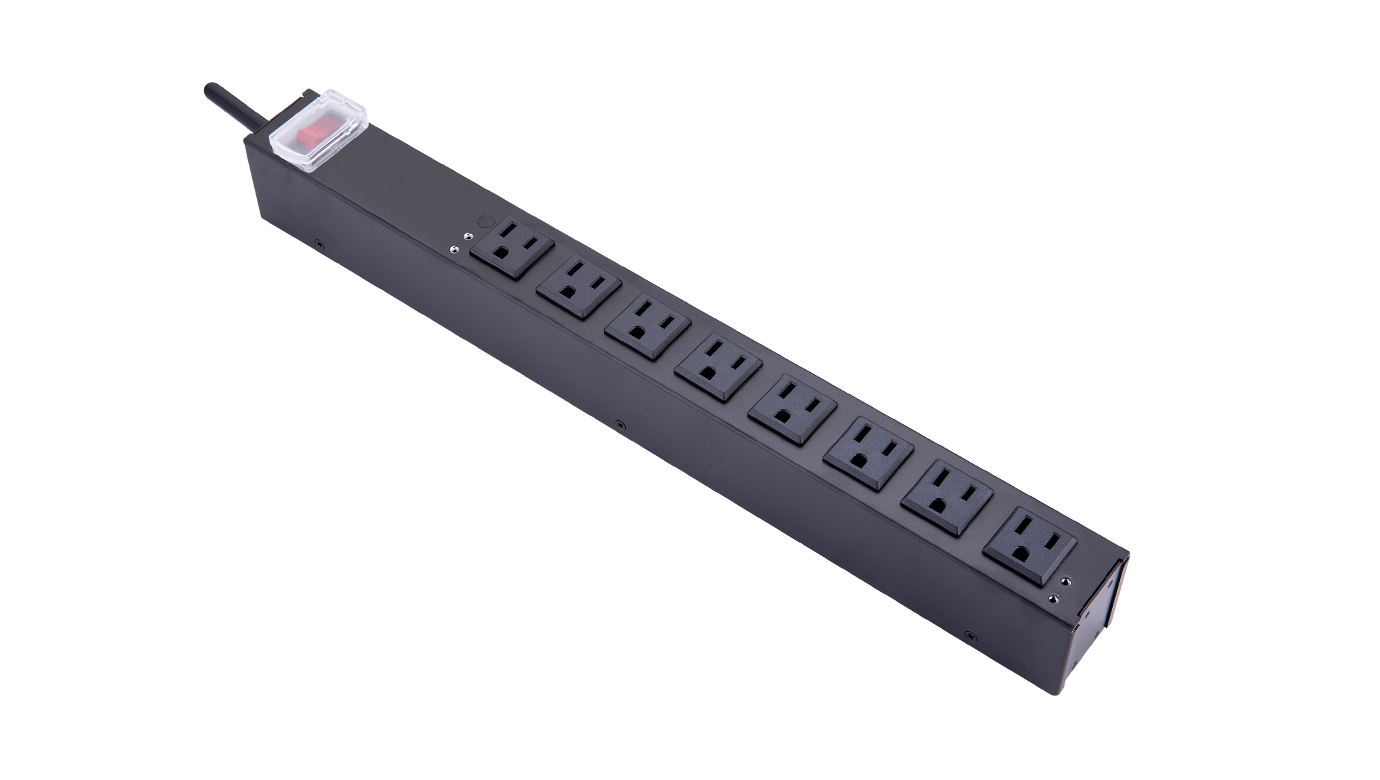

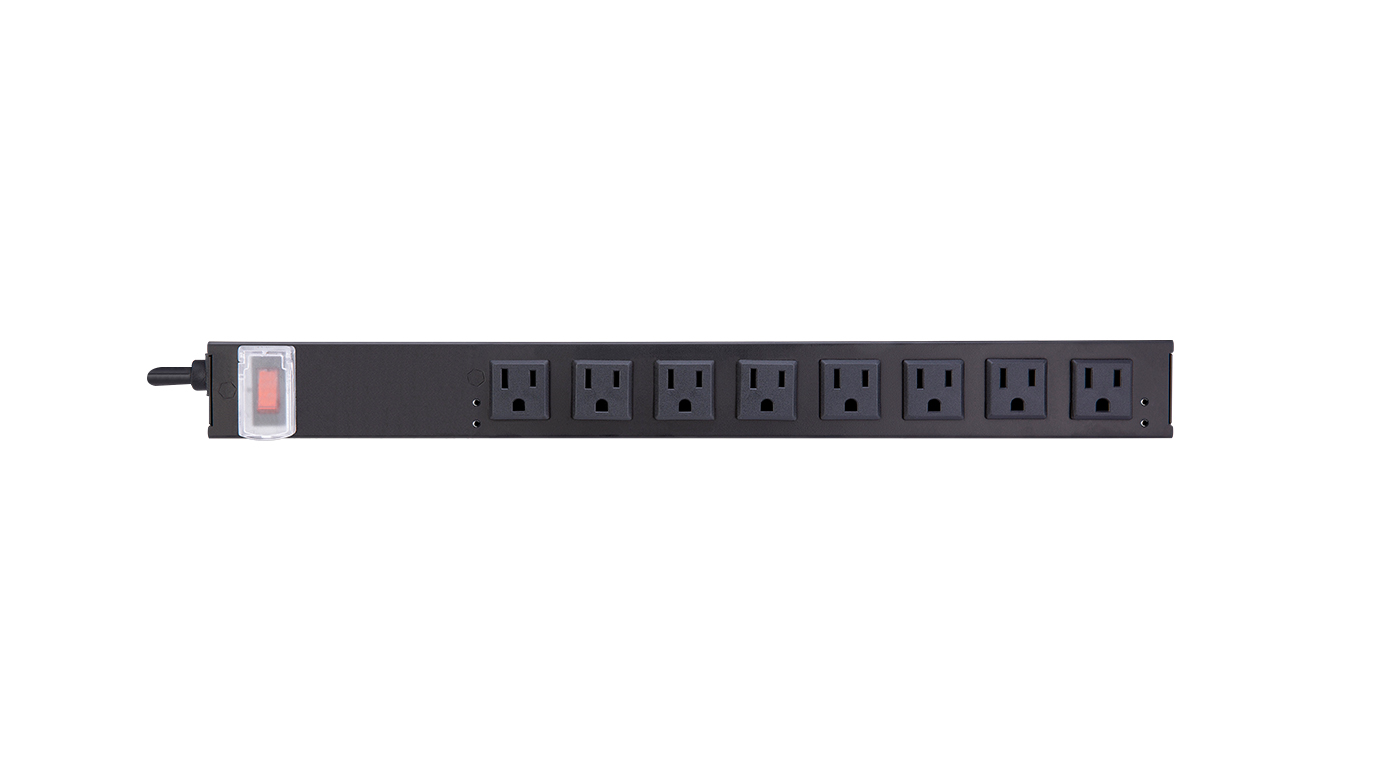

The PlusBasic 1-15A is a rack PDU that efficiently distributes power to devices within the rack and includes features for power control and measurement. It also features an industrial-strength metal casing and an extended input power cable, making it ideal for use in harsh environments. Its high heat resistance ensures reliable performance in servers, homes, and businesses.
● High temperature environment operation
● Power switch with current protection
● Durable Metal Housing
● Overload Protection

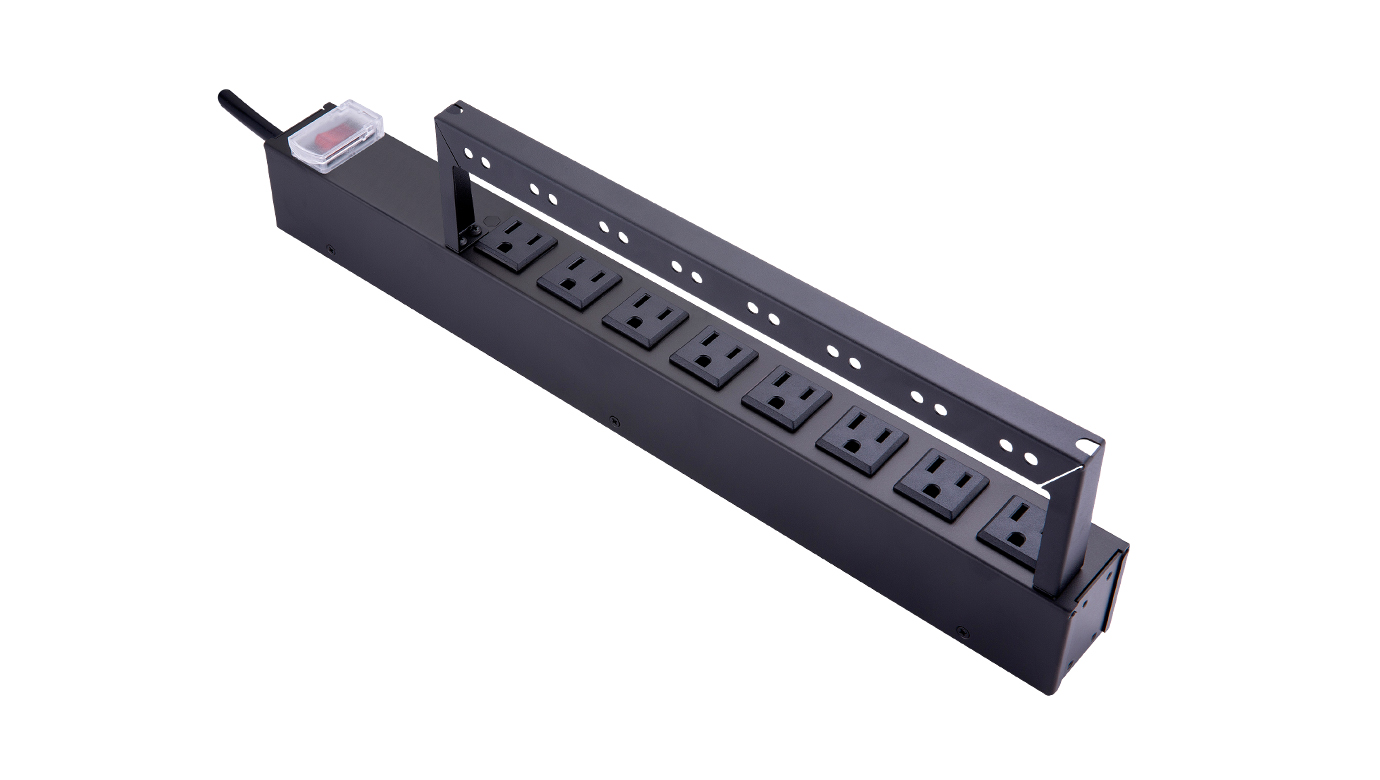

● Cord Retention Tray
● Power switch with current protection
● Durable Metal Housing
● Overload Protection
● Cord Retention Tray
| MODEL | PlusBasic 1-15A | ||
| INPUT | |||
| Nominal Voltage | 110Vac-240Vac | ||
| Frequency | 50Hz-60Hz | ||
| Max, Current | 15A | ||
| Type of Connection | NEMA 5-15P *1 | ||
| Length of Cable | 3M | ||
| OUTPUT | |||
| Over Current Protection | 15A | ||
| Q'ty of Socket | 8 | ||
| Type of Socket | NEMA 5-15R | ||
| MEASUREMENT | |||
| Voltage | AC 40.0-300.0V(110Vac-240Vac Universal) | ||
| Current | 0-20A(110Vac-240Vac Universal) | ||
| SURGE PROTECTION | |||
| Max. Total Surge Absorption Current | 24,000Amp. | ||
| Max. Total Surge Absorption Energy | 1200Joules | ||
| PHYSICAL | |||
| Rack Height | 1U | ||
| Cord Retention Tray | Optional | ||
| Dimension(L*W*H) | 480*62*45mm | ||
| Weight | 1.3kgs |
||
| ENVIRONMENT | |||
| Operating Temperature | 0-50°C | ||
| Humidity | 0-95% | ||
