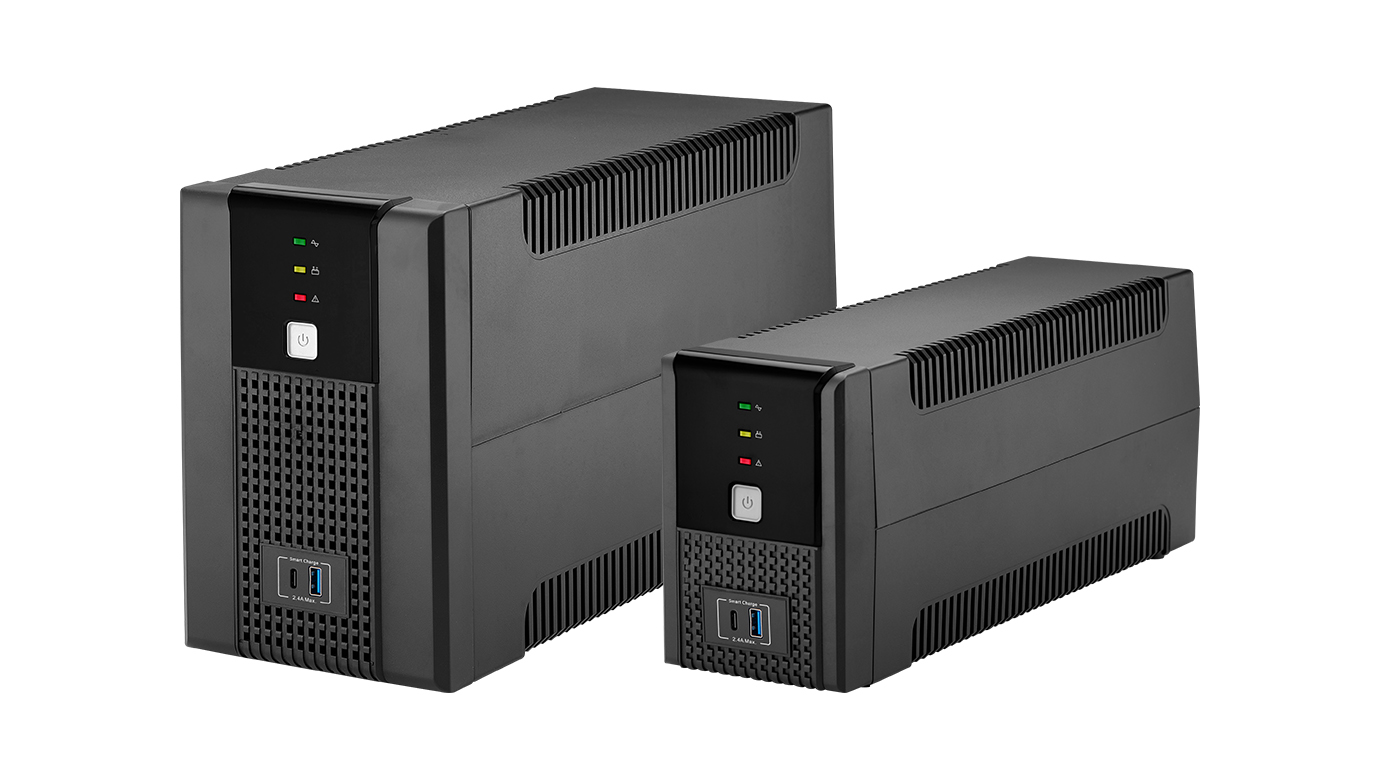

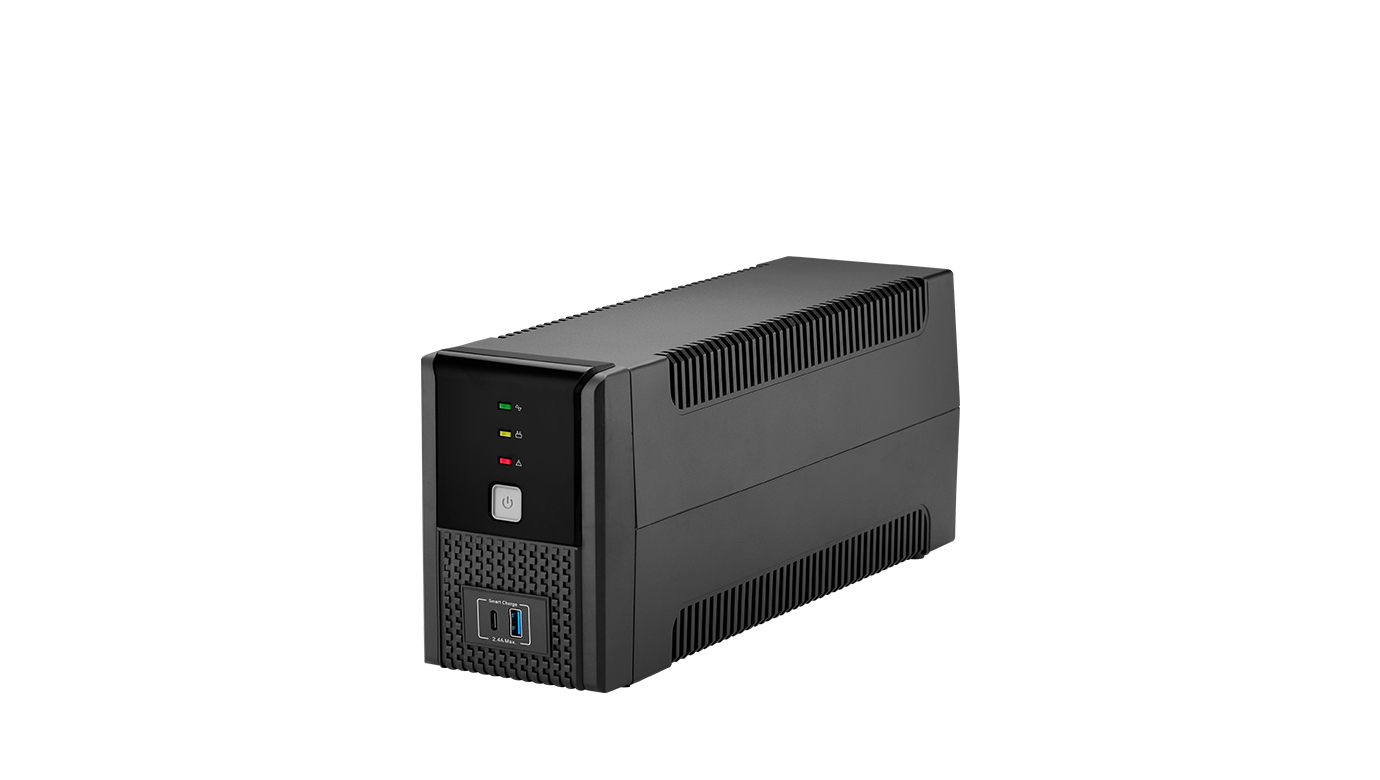

Plus5E-S Series
600VA to 2000VA
The Plus5E-S Series 600VA to 2000VA Line Interactive UPS provides guaranteed battery backup power during outage and unsafe fluctuation, along with full protection from damaging surges and spikes.
Unique battery compartment makes it easy, fast and money saving to change battery. It also equipped with smart charging station, SC-5VDC, USB charging port for smart devices power charging.
Featuring 600VA to 2000VA integrated with microprocessor controller, voltage stabilizer, LED indicators and battery easy replacement in a stand-alone unit, Plus5E-S Series UPS is the best choice to protect your data and keep you connected during utility blackout.
Unique battery compartment makes it easy, fast and money saving to change battery. It also equipped with smart charging station, SC-5VDC, USB charging port for smart devices power charging.
Featuring 600VA to 2000VA integrated with microprocessor controller, voltage stabilizer, LED indicators and battery easy replacement in a stand-alone unit, Plus5E-S Series UPS is the best choice to protect your data and keep you connected during utility blackout.
● UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
● Controlled by a technologically advanced microprocessor guaranteeing high reliability
● USB port and monitor software is designed to manage UPS status via PC (Optional)
● Built-in DC start function enables UPS to be started without AC power supplied
● Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
● Constant current, constant voltage battery charger (CCCV Battery Charger)
● UPS will charge itself even though power switch is off (Off mode charging)
● Smart USB charging 5VDC 2.4A max. for smart devices power charging
● Over / under voltage protection (UPS will go to battery mode)
● Lightning / surge protection 175 joules
● Easy replacement battery design
● Controlled by a technologically advanced microprocessor guaranteeing high reliability
● USB port and monitor software is designed to manage UPS status via PC (Optional)
● Built-in DC start function enables UPS to be started without AC power supplied
● Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
● Constant current, constant voltage battery charger (CCCV Battery Charger)
● UPS will charge itself even though power switch is off (Off mode charging)
● Smart USB charging 5VDC 2.4A max. for smart devices power charging
● Over / under voltage protection (UPS will go to battery mode)
● Lightning / surge protection 175 joules
● Easy replacement battery design
| MODEL | Plus5E-S600UN | Plus5E-S650UN | Plus5E-S800UN | Plus5E-S1000UN | Plus5E-S1200UN | Plus5E-S1500UN | Plus5E-S2000UN |
| Plus5E-US600UN | Plus5E-US650UN | Plus5E-US800UN | Plus5E-US1000UN | Plus5E-US1200UN | Plus5E-US1500UN | Plus5E-US2000UN | |
| CAPACITY | 600VA/360W | 650VA/360W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W | 2000VA/1200W |
| INPUT | |||||||
| Voltage | 220/230Vac | ||||||
| Voltage Range | -30%, +25% | ||||||
| Frequency | 50Hz or 60Hz (Auto-sensing) | ||||||
| OUTPUT | |||||||
| Voltage Regulation | +/-10% | ||||||
| Frequency | AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz | ||||||
| Waveform | Simulated Sinewave | ||||||
| Transfer Time | <6ms (Typical) | ||||||

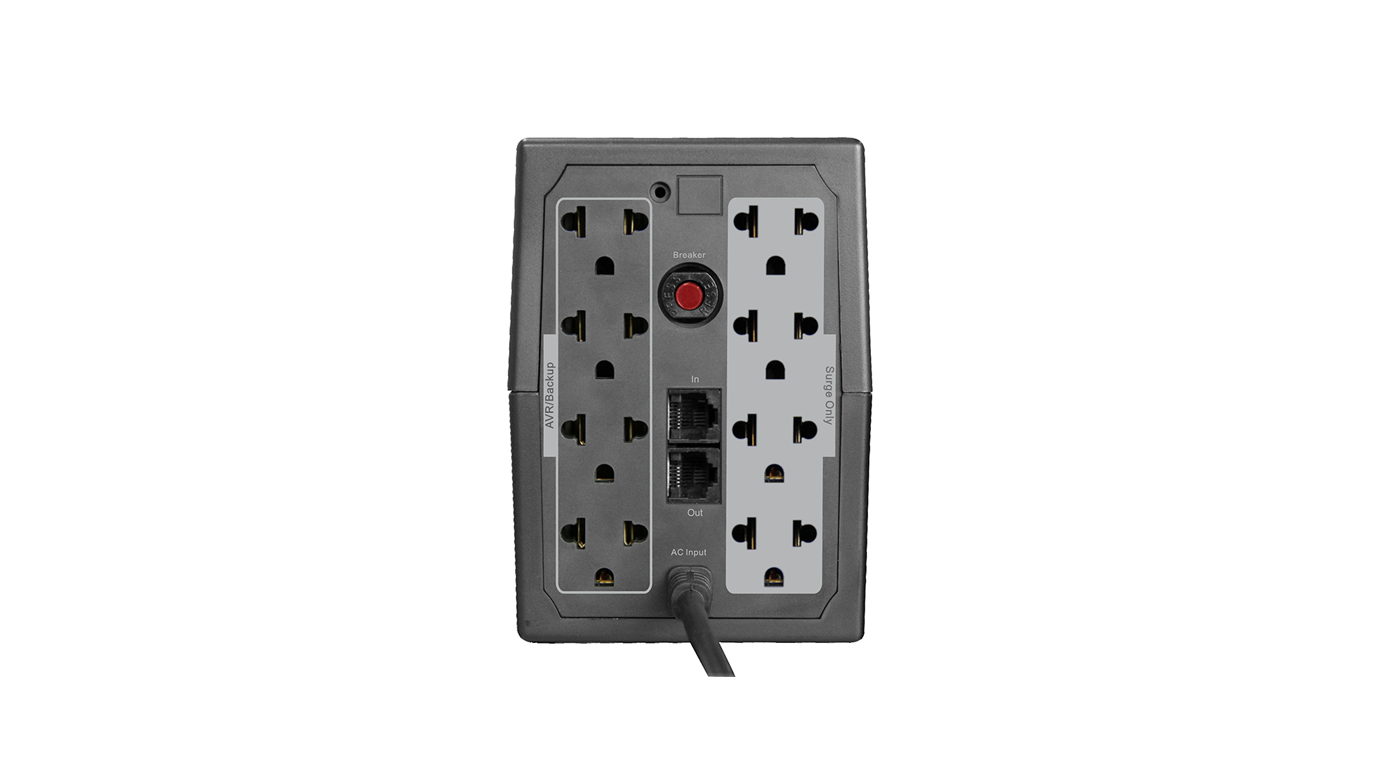

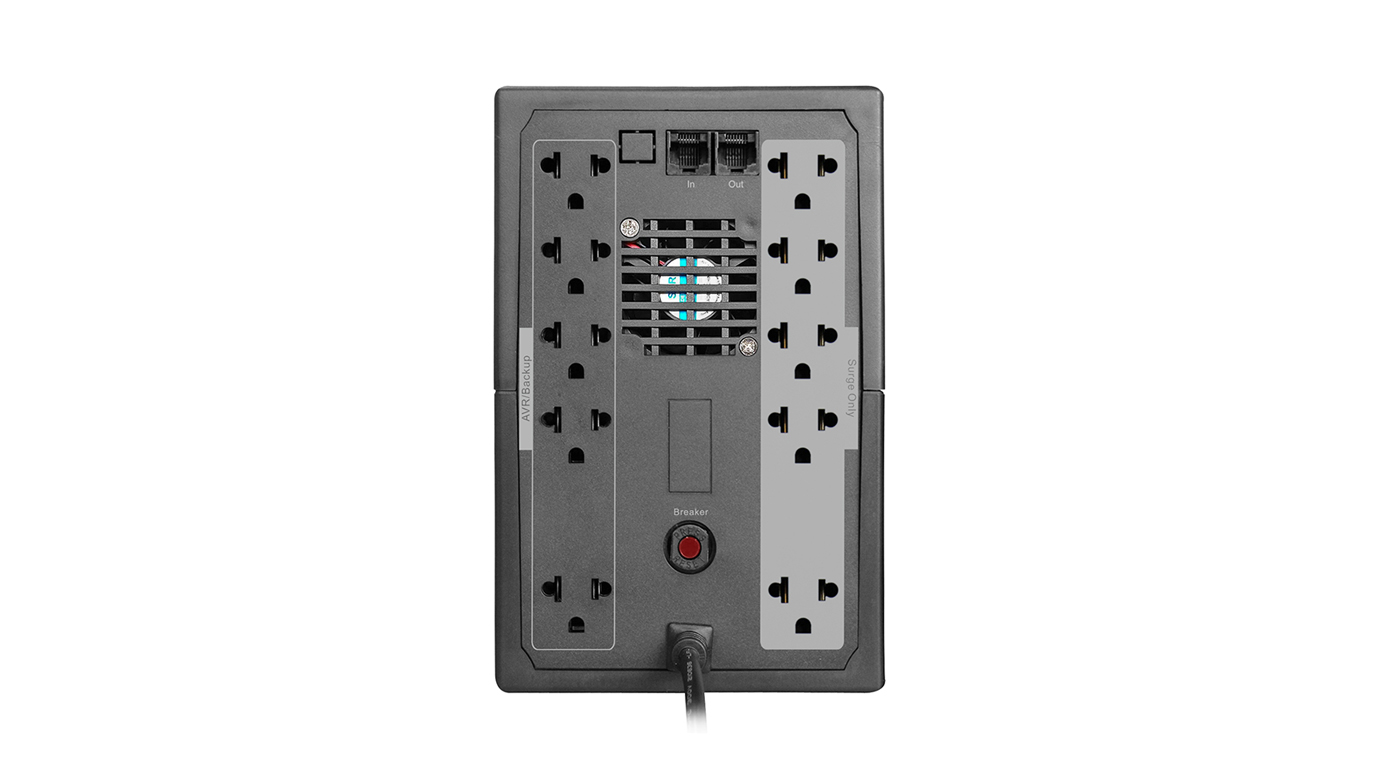

| Outlet: EURO-US | 4pcs Backup/AVR/Surge protected + 4pcs Surge protected only | 5pcs Backup/AVR/Surge protected + 5pcs Surge protected only | |||||
| Smart USB Charging | 2 ports, 5VDC 2.4A max. | ||||||
| BATTERY | |||||||
| Type | Maintenance free sealed lead-acid battery | ||||||
| Voltage | 12VDC | 24VDC | |||||
| Capacity & Number | 12V/7AH*1pc | 12V/7AH*1pc | 12V/9AH*1pc | 12V/7AH*2pcs | 12V/7AH*2pcs | 12V/9AH*2pcs | 12V/9AH*2pcs |
| Recharge Time | 5 hours to 90% after complete discharge | ||||||
| Safety Protection | Over Charge & Over Discharge Protection | ||||||
| Advanced Battery Management | Yes | ||||||
| DISPLAY | |||||||
| LED Indicators | AC Normal (Green), Battery backup (Yellow), UPS cut off / Fault (Red) | ||||||
| AUDIBLE ALARM | |||||||
| Battery Mode | Two short tones every 8 seconds | ||||||
| Low Battery | Four short tones every second | ||||||
| Overload | Beeping continuously | ||||||
| Fault | Beeping continuously | ||||||
| MANAGEMENT | |||||||
| USB Communication Port | Plus5E-S series: N/A | ||||||
| Plus5E-US series: Yes, and download software is inlcuded. Monitoring software can support Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2003/2008/2012, Novell NetWare v3.1x/v4.x/v5.x, Linux, FreeBSD, MacOSX10.5.5 | |||||||
| ENVIRONMENT | |||||||
| Operating Temperature | 0°C-40°C (32°F-104°F) | ||||||
| Humidity | 0-95% (Non-condensing) | ||||||
| Acousitc Noise | <40dB at 1M | ||||||
| PHYSICAL | |||||||
| Net Weight | 4.68kg | 4.68kg | 5.76kg | 9.08kg | 9.16kg | 10.8kg | 11.8kg |
| Dimension (D*W*H) | 315.5*100*141mm | 343*135*208mm | |||||
| MODEL NAME | POWER RATING | MODEL FORMAT | INDICATORS | USB CHARGING | USB COMMUNICATION PORT | SOCKET TYPE |
| Plus5E-S600UN | 600VA/360W | Tower Type | LED | YES | N/A | EURO-US |
| Plus5E-US600UN | 600VA/360W | Tower Type | LED | YES | YES | EURO-US |
| Plus5E-S650UN | 650VA/360W | Tower Type | LED | YES | N/A | EURO-US |
| Plus5E-US650UN | 650VA/360W | Tower Type | LED | YES | YES | EURO-US |
| Plus5E-S800UN | 800VA/480W | Tower Type | LED | YES | N/A | EURO-US |
| Plus5E-US800UN | 800VA/480W | Tower Type | LED | YES | YES | EURO-US |
| Plus5E-S1000UN | 1000VA/600W | Tower Type | LED | YES | N/A | EURO-US |
| Plus5E-US1000UN | 1000VA/600W | Tower Type | LED | YES | YES | EURO-US |
| Plus5E-S1200UN | 1200VA/720W | Tower Type | LED | YES | N/A | EURO-US |
| Plus5E-US1200UN | 1200VA/720W | Tower Type | LED | YES | YES | EURO-US |
| Plus5E-S1500UN | 1500VA/900W | Tower Type | LED | YES | N/A | EURO-US |
| Plus5E-US1500UN | 1500VA/900W | Tower Type | LED | YES | YES | EURO-US |
| Plus5E-S2000UN | 2000VA/1200W | Tower Type | LED | YES | N/A | EURO-US |
| Plus5E-US2000UN | 2000VA/1200W | Tower Type | LED | YES | YES | EURO-US |
*The capacity of connected loading do not exceed the capacity of UPS.
