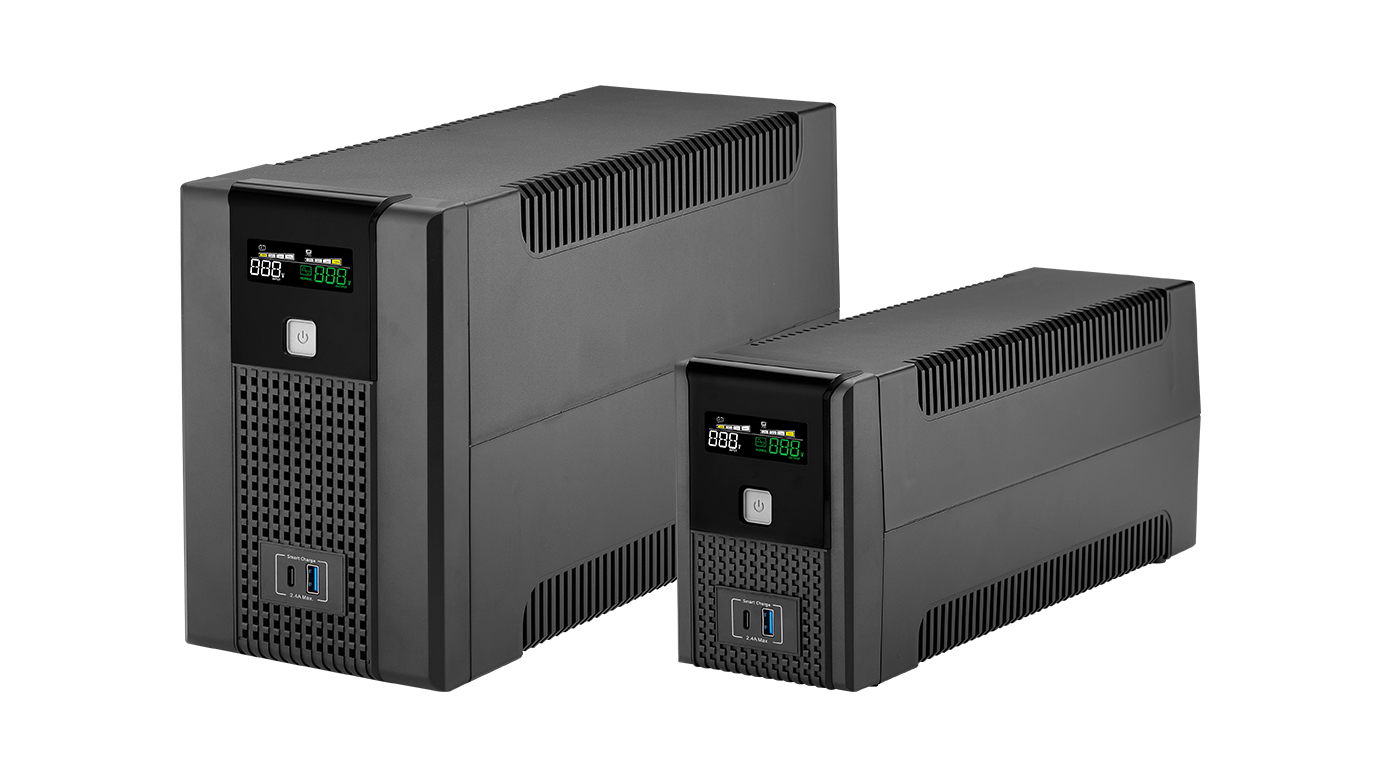

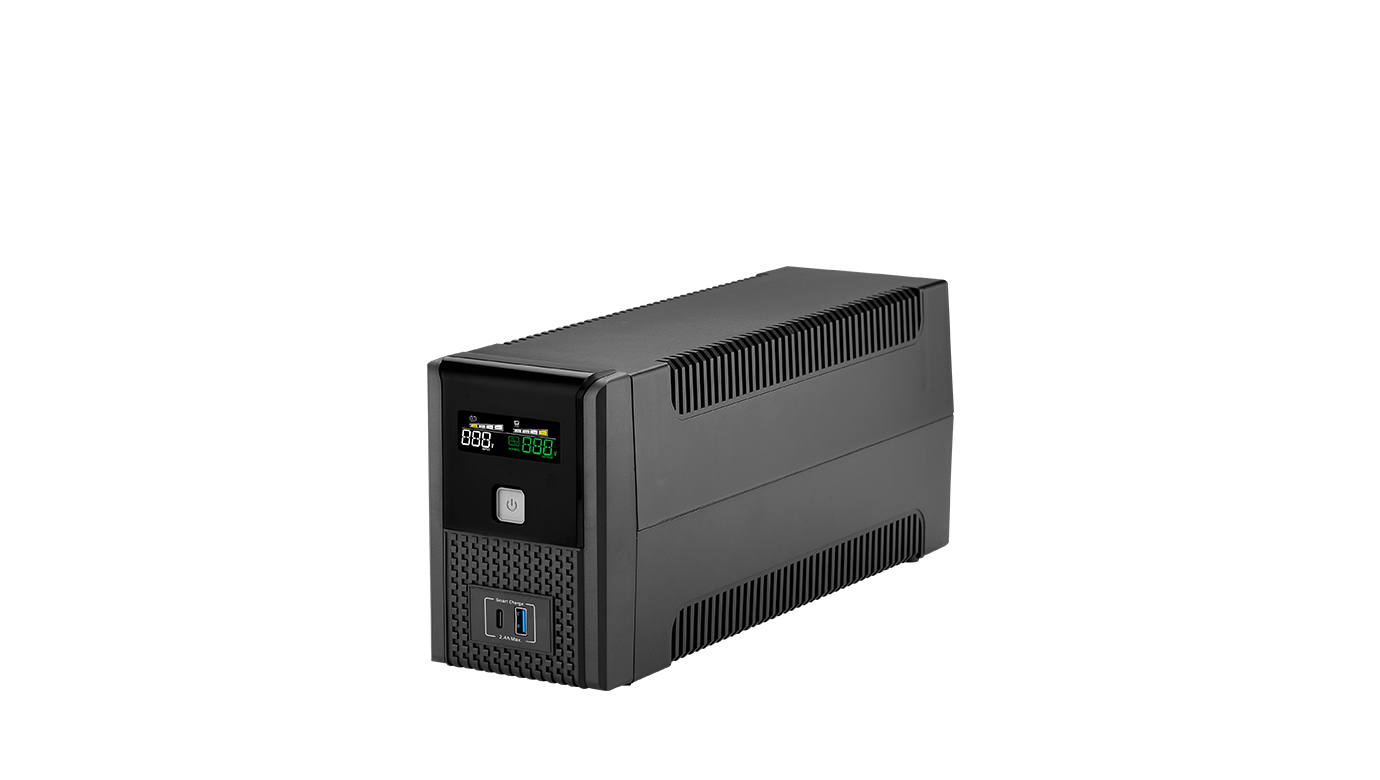

Plus5L-S Series
600VA to 2000VA
The Plus5L-S Series 600VA to 2000VA provides guaranteed battery backup power during outage and unsafe fluctuation, along with full protection from damaging surges and spikes. Unique battery compartment makes it easy, fast and money saving to change battery. It also equipped with smart charging station, SC-5VDC, USB charging port for smart devices power charging.
Featuring 600VA to 2000VA integrated with microprocessor controller, voltage stabilizer, LCD display and battery easy replacement in a stand-alone unit, Plus5L-S Series UPS is the best choice to protect your data and keep you connected during utility blackout.
●  UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
●  Controlled by a technologically advanced microprocessor guaranteeing high reliability
●  USB port and monitor software is designed to manage UPS status via PC (Optional)
●  Built-in DC start function enables UPS to be started without AC power supplied
●  Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
●  Constant current, constant voltage battery charger (CCCV Battery Charger)
●  UPS will charge itself even though power switch is off (Off mode charging)
●  Smart USB charging 5VDC 2.4A max. for smart devices power charging
●  Over / under voltage protection (UPS will go to battery mode)
●  Lightning / surge protection 175 joules
●  Easy replacement battery design
MODEL Plus5L-S600 Plus5L-S800 Plus5L-S1000 Plus5L-S1200 Plus5L-S1500 Plus5L-S2000
Plus5L-US600 Plus5L-US800 Plus5L-US1000 Plus5L-US1200 Plus5L-US1500 Plus5L-US2000
CAPACITY 600VA/360W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W 2000VA/1200W
INPUT
Voltage 220/230Vac
Voltage Range -30%, +25%
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation +/-10%
Frequency AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz
Waveform Simulated Sinewave
Transfer Time <6ms (Typical)

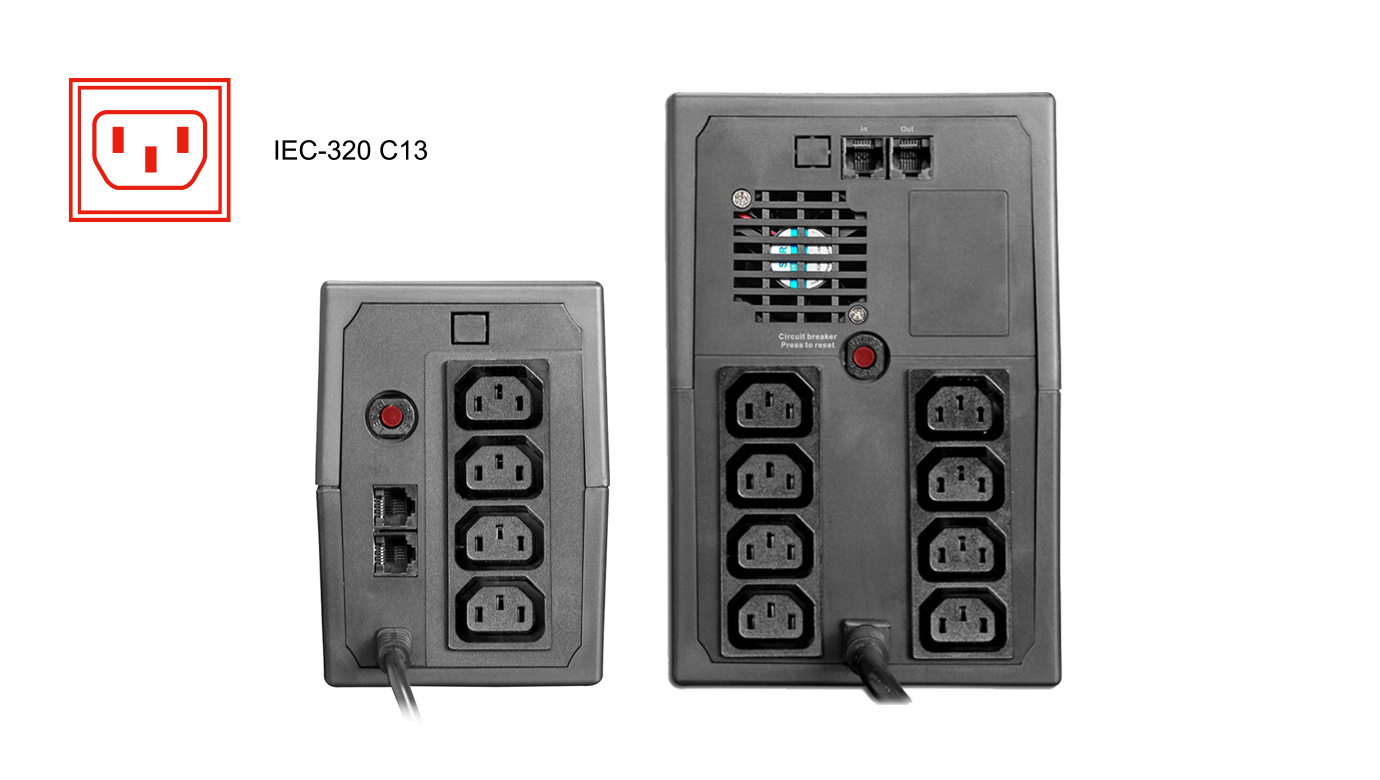

Outlet: IEC-320 C13 IEC-320 C13 *4pcs Backup/AVR/Surge protected IEC-320 C13 *8pcs Backup/AVR/Surge protected

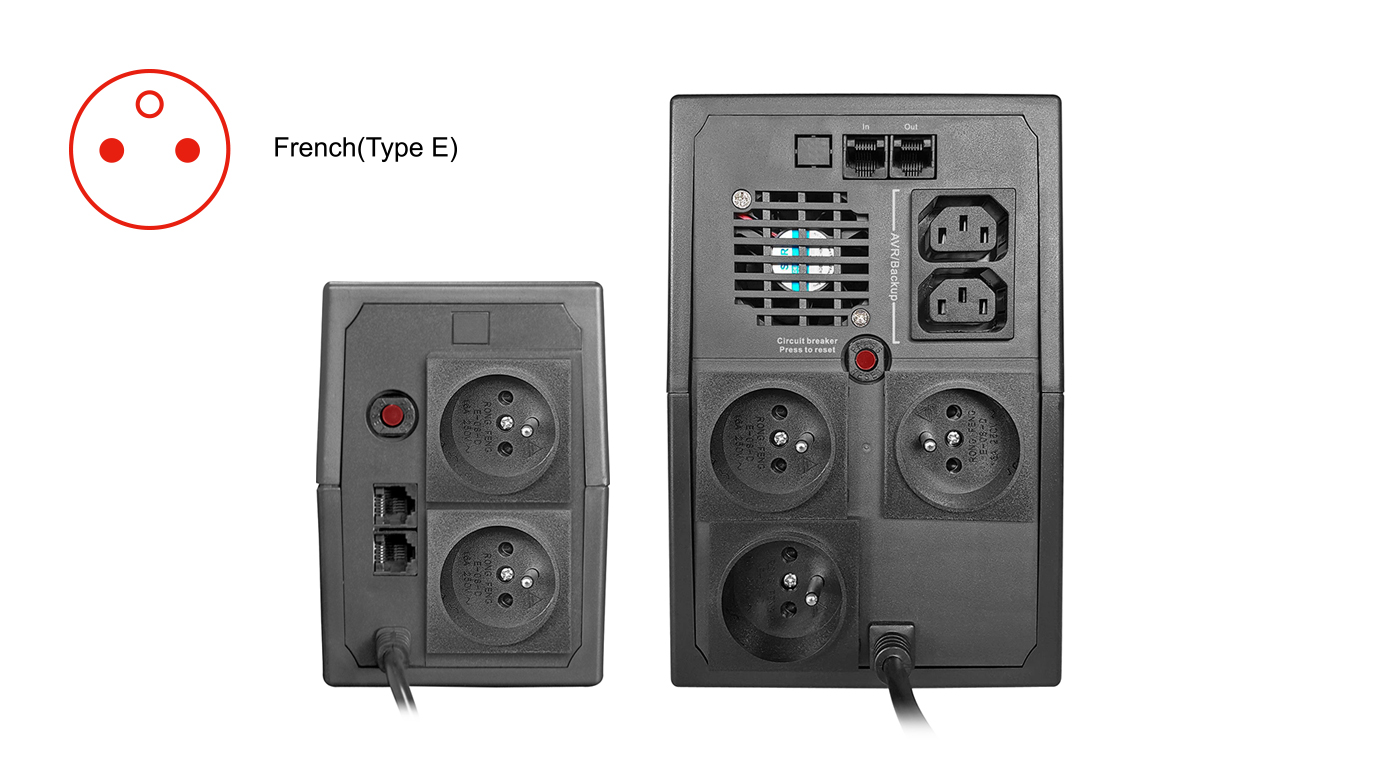

Outlet: French (Type E) French(Type E) *2pcs Backup/AVR/Surge protected French(Type E) *3pcs + IEC-320 C13 *2pcs Backup/AVR/Surge protected

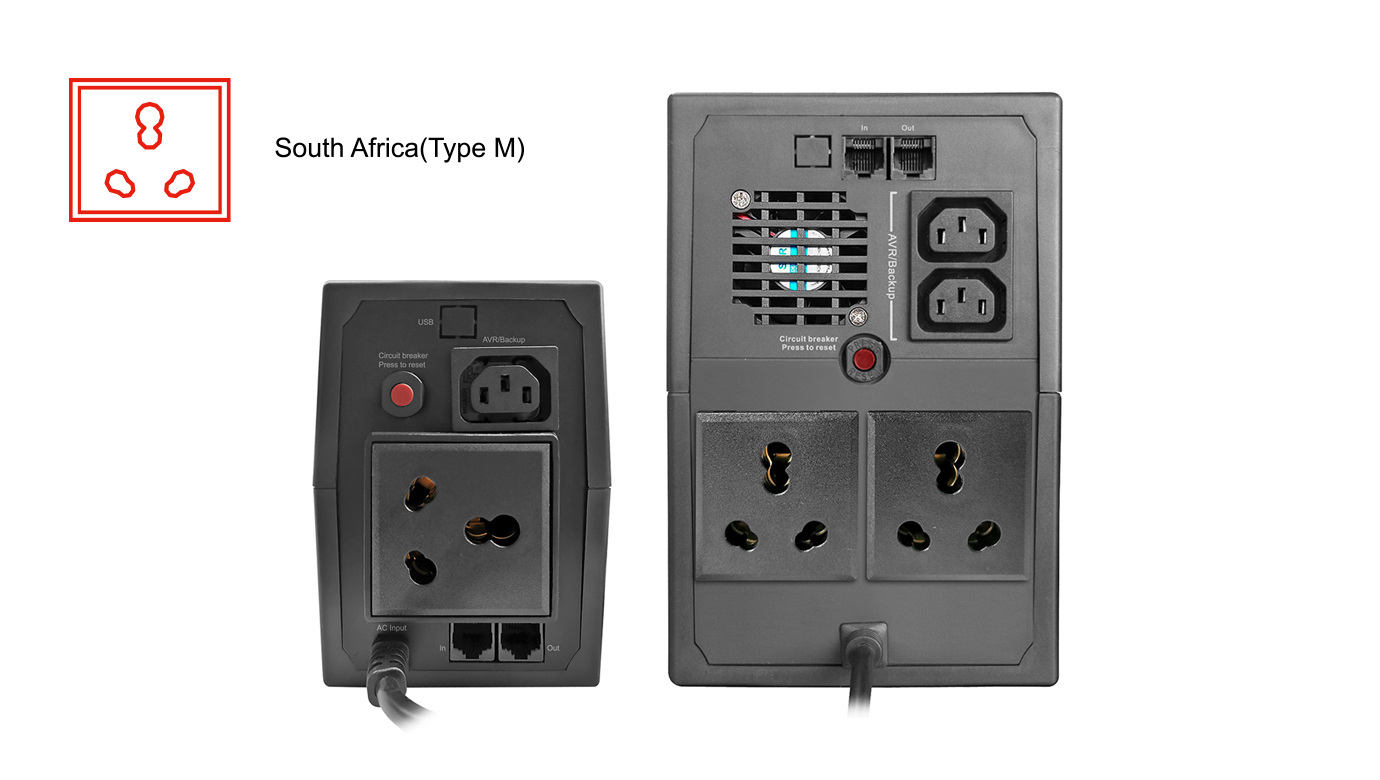

Outlet: South Africa (Type M) South Africa(Type M) *1pc +
IEC-320 C13 *1pc Backup/AVR/Surge protected
South Africa(Type M) *2pcs + IEC-320 C13 *2pcs Backup/AVR/Surge protected
Outlet: Italian (Type L) Italian(Type L) *4pcs Backup/AVR/Surge protected Italian(Type L) *8pcs Backup/AVR/Surge protected
Smart USB Charging 2 ports, 5VDC 2.4A max.
BATTERY
Type Maintenance free sealed lead-acid battery
Voltage 12VDC 24VDC
Capacity & Number 12V/7AH*1pc 12V/9AH*1pc 12V/7AH*2pcs 12V/7AH*2pcs 12V/9AH*2pcs 12V/9AH*2pcs
Recharge Time 5 hours to 90% after complete discharge
Safety Protection Over Charge & Over Discharge Protection
Advanced Battery Management Yes
DISPLAY
LCD Status Indicators Input voltage, Output voltage, Load level, Battery level, Fault, Battery fail, Overload, AC normal
AUDIBLE ALARM
Battery Mode Two short tones every 8 seconds
Low Battery Four short tones every second
Overload Beeping continuously
Fault Beeping continuously
MANAGEMENT
USB Communication Port Plus5L-S series: N/A
Plus5L-US series: Yes, and download software is inlcuded. Monitoring software can support Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2003/2008/2012, Novell NetWare v3.1x/v4.x/v5.x, Linux, FreeBSD, MacOSX10.5.5
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
Acousitc Noise <40dB at 1M
PHYSICAL
Net Weight 4.68kg 5.76kg 9.08kg 9.16kg 10.8kg 11.8kg
Dimension (D*W*H) 315.5*100*141mm 343*135*208mm
*Product specifications are subject to change without further notice.

MODEL NAME POWER RATING MODEL FORMAT INDICATORS USB CHARGING USB COMMUNICATION PORT SOCKET TYPE
Plus5L-S600IEC 600VA/360W Tower Type LCD YES N/A IEC-320 C13
Plus5L-US600IEC 600VA/360W Tower Type LCD YES YES IEC-320 C13
Plus5L-S800IEC 800VA/480W Tower Type LCD YES N/A IEC-320 C13
Plus5L-US800IEC 800VA/480W Tower Type LCD YES YES IEC-320 C13
Plus5L-S1000IEC 1000VA/600W Tower Type LCD YES N/A IEC-320 C13
Plus5L-US1000IEC 1000VA/600W Tower Type LCD YES YES IEC-320 C13
Plus5L-S1200IEC 1200VA/720W Tower Type LCD YES N/A IEC-320 C13
Plus5L-US1200IEC 1200VA/720W Tower Type LCD YES YES IEC-320 C13
Plus5L-S1500IEC 1500VA/900W Tower Type LCD YES N/A IEC-320 C13
Plus5L-US1500IEC 1500VA/900W Tower Type LCD YES YES IEC-320 C13
Plus5L-S2000IEC 2000VA/1200W Tower Type LCD YES N/A IEC-320 C13
Plus5L-US2000IEC 2000VA/1200W Tower Type LCD YES YES IEC-320 C13


MODEL NAME POWER RATING MODEL FORMAT INDICATORS USB CHARGING USB COMMUNICATION PORT SOCKET TYPE
Plus5L-S600F 600VA/360W Tower Type LCD YES N/A French(Type E)
Plus5L-US600F 600VA/360W Tower Type LCD YES YES French(Type E)
Plus5L-S800F 800VA/480W Tower Type LCD YES N/A French(Type E)
Plus5L-US800F 800VA/480W Tower Type LCD YES YES French(Type E)
Plus5L-S1000F 1000VA/600W Tower Type LCD YES N/A French(Type E) +
IEC-320 C13
Plus5L-US1000F 1000VA/600W Tower Type LCD YES YES French(Type E) +
IEC-320 C13
Plus5L-S1200F 1200VA/720W Tower Type LCD YES N/A French(Type E) +
IEC-320 C13
Plus5L-US1200F 1200VA/720W Tower Type LCD YES YES French(Type E) +
IEC-320 C13
Plus5L-S1500F 1500VA/900W Tower Type LCD YES N/A French(Type E) +
IEC-320 C13
Plus5L-US1500F 1500VA/900W Tower Type LCD YES YES French(Type E) +
IEC-320 C13
Plus5L-S2000F 2000VA/1200W Tower Type LCD YES N/A French(Type E) +
IEC-320 C13
Plus5L-US2000F 2000VA/1200W Tower Type LCD YES YES French(Type E) +
IEC-320 C13


MODEL NAME POWER RATING MODEL FORMAT INDICATORS USB CHARGING USB COMMUNICATION PORT SOCKET TYPE
Plus5L-S600SA 600VA/360W Tower Type LCD YES N/A South Africa(Type M) + IEC-320 C13
Plus5L-US600SA 600VA/360W Tower Type LCD YES YES South Africa(Type M) + IEC-320 C13
Plus5L-S800SA 800VA/480W Tower Type LCD YES N/A South Africa(Type M) + IEC-320 C13
Plus5L-US800SA 800VA/480W Tower Type LCD YES YES South Africa(Type M) + IEC-320 C13
Plus5L-S1000SA 1000VA/600W Tower Type LCD YES N/A South Africa(Type M) + IEC-320 C13
Plus5L-US1000SA 1000VA/600W Tower Type LCD YES YES South Africa(Type M) + IEC-320 C13
Plus5L-S1200SA 1200VA/720W Tower Type LCD YES N/A South Africa(Type M) + IEC-320 C13
Plus5L-US1200SA 1200VA/720W Tower Type LCD YES YES South Africa(Type M) + IEC-320 C13
Plus5L-S1500SA 1500VA/900W Tower Type LCD YES N/A South Africa(Type M) + IEC-320 C13
Plus5L-US1500SA 1500VA/900W Tower Type LCD YES YES South Africa(Type M) + IEC-320 C13
Plus5L-S2000SA 2000VA/1200W Tower Type LCD YES N/A South Africa(Type M) + IEC-320 C13
Plus5L-US2000SA 2000VA/1200W Tower Type LCD YES YES South Africa(Type M) + IEC-320 C13


MODEL NAME POWER RATING MODEL FORMAT INDICATORS USB CHARGING USB COMMUNICATION PORT SOCKET TYPE
Plus5L-S600IT 600VA/360W Tower Type LCD YES N/A Italian(Type L)
Plus5L-US600IT 600VA/360W Tower Type LCD YES YES Italian(Type L)
Plus5L-S800IT 800VA/480W Tower Type LCD YES N/A Italian(Type L)
Plus5L-US800IT 800VA/480W Tower Type LCD YES YES Italian(Type L)
Plus5L-S1000IT 1000VA/600W Tower Type LCD YES N/A Italian(Type L)
Plus5L-US1000IT 1000VA/600W Tower Type LCD YES YES Italian(Type L)
Plus5L-S1200IT 1200VA/720W Tower Type LCD YES N/A Italian(Type L)
Plus5L-US1200IT 1200VA/720W Tower Type LCD YES YES Italian(Type L)
Plus5L-S1500IT 1500VA/900W Tower Type LCD YES N/A Italian(Type L)
Plus5L-US1500IT 1500VA/900W Tower Type LCD YES YES Italian(Type L)
Plus5L-S2000IT 2000VA/1200W Tower Type LCD YES N/A Italian(Type L)
Plus5L-US2000IT 2000VA/1200W Tower Type LCD YES YES Italian(Type L)

*The capacity of connected loading do not exceed the capacity of UPS.
