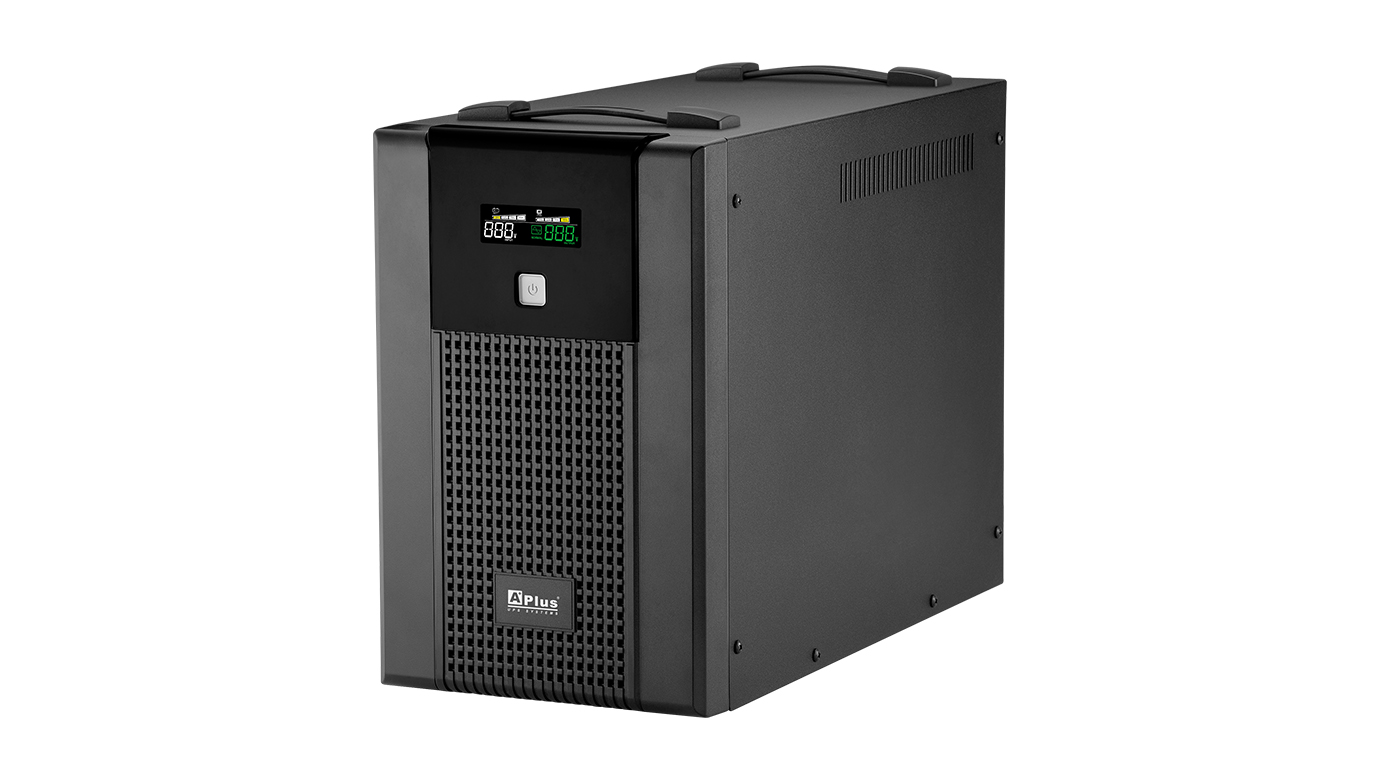

Plus5LB Series
2000VA to 3000VA
The Plus5LB Series 2000VA to 3000VA provides guaranteed battery backup power during outage and unsafe fluctuation.
Featuring 2000VA to 3000VA integrated with voltage stabilizer, LCD display and full protection from damaging surges and spikes, Plus5LB Series UPS is the best choice to protect your data and keep you connected during utility blackout.
●  UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
●  Built-in DC start function enables UPS to be started without AC power supplied
●  Constant current, constant voltage battery charger (CCCV Battery Charger)
●  UPS will charge itself even though power switch is off (Off mode charging)
●  USB port and monitor software is designed to manage UPS status via PC
●  Over / under voltage protection (UPS will go to battery mode)
●  Equipped with boost & buck AVR to stabilize output voltage
●  Provide lighting, surge, overload and short circuit protection
MODEL Plus5LB-U2000AU Plus5LB-U3000AU
CAPACITY 2000VA/1200W 3000VA/1800W
INPUT
Voltage 220/230Vac
Voltage Range -25%, +25%
Frequency 47-53Hz or 57-63Hz
OUTPUT
Voltage Regulation +/-10%
Frequency AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/- 1Hz
Waveform Simulated Sinewave
Transfer Time <6ms (Typical)
Outlet: Australian 6pcs backup/AVR/Surge protected
BATTERY
Type Maintenance free sealed lead-acid battery
Voltage 48VDC
Capacity & Number 12V/7AH*4pcs 12V/9AH*4pcs
Recharge Time 5 hours to 90% after complete discharge
Safety Protection Over Charge & Over Discharge Protection
Advanced Battery Management Yes
DISPLAY
LCD Status Indicators Input voltage, Output voltage, Load level, Battery level, Fault, Battery fail, Overload, AC normal
AUDIBLE ALARM
Battery Mode Two short tones every 8 seconds
Low Battery Four short tones every second
Overload Beeping continuously
Fault Beeping continuously
MANAGEMENT
USB Communication Port Yes, and download software is inlcuded.
Monitoring software can support Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2003/2008/2012, Novell NetWare v3.1x/v4.x/v5.x, Linux, FreeBSD, MacOSX10.5.5
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
Acousitc Noise <40dB at 1M
PHYSICAL
Dimension (D*W*H) 390*182*285mm
*Product specifications are subject to change without further notice.
MODEL NAME POWER RATING MODEL FORMAT INDICATORS USB COMMUNICATION PORT SOCKET TYPE
Plus5LB-U2000AU 2000VA/1200W Tower Type LCD YES Australian (Type I)
Plus5LB-U3000AU 3000VA/1800W Tower Type LCD YES Australian (Type I)

*The capacity of connected loading do not exceed the capacity of UPS.
