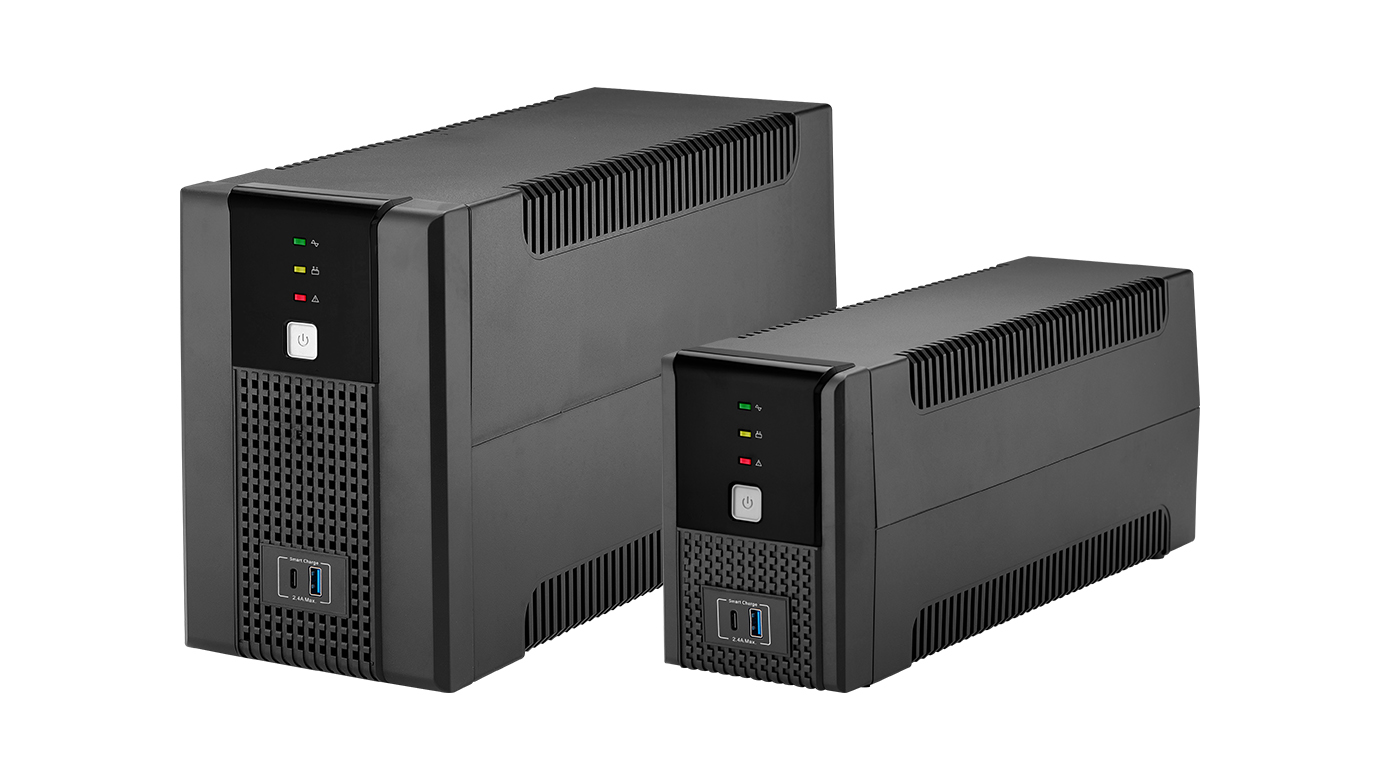

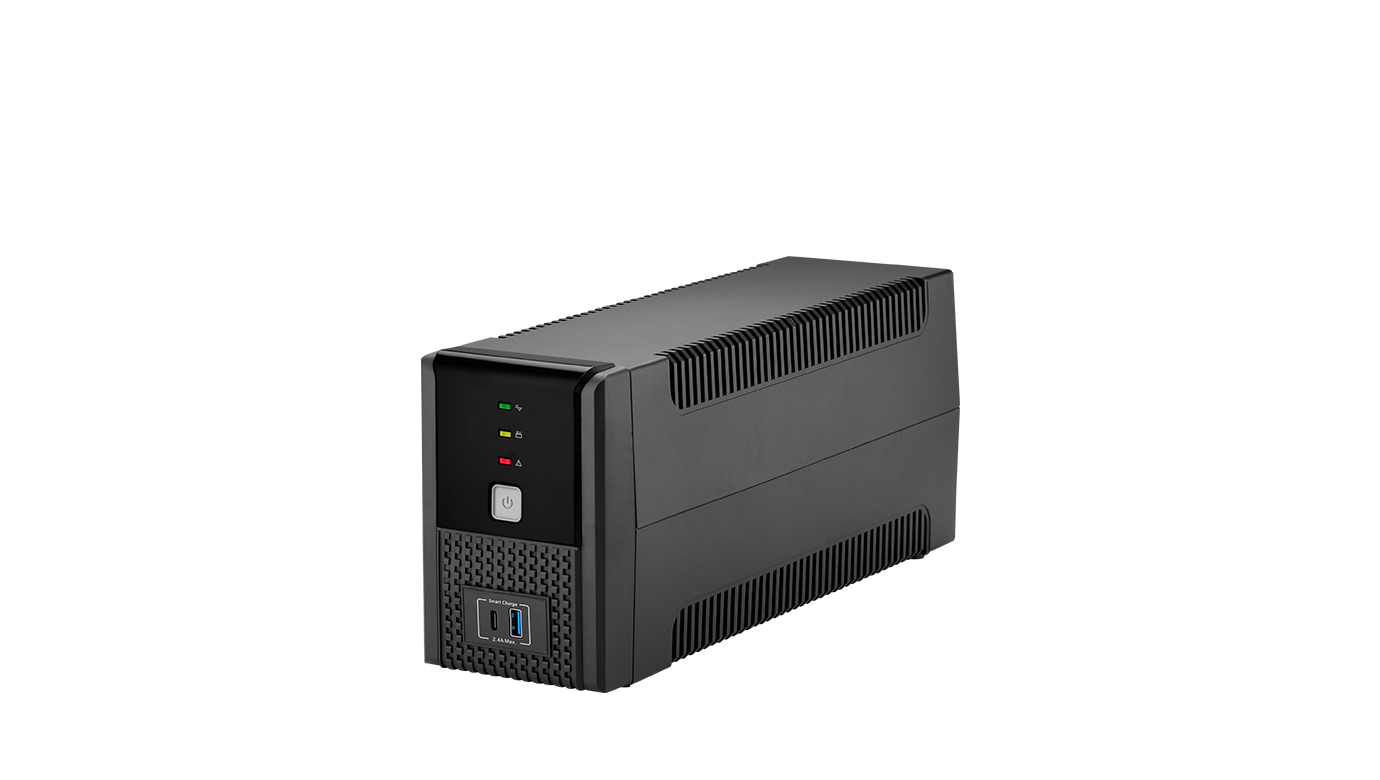

Plus5E-S Series
600VA to 2000VA
The Plus5E-S Series 600VA to 2000VA provides guaranteed battery backup power during outage and unsafe fluctuation, along with full protection from damaging surges and spikes.
Unique battery compartment makes it easy, fast and money saving to change battery. It also equipped with smart charging station, SC-5VDC, USB charging port for smart devices power charging.
Featuring 600VA to 2000VA integrated with microprocessor controller, voltage stabilizer, LED indicators and battery easy replacement in a stand-alone unit, Plus5E-S Series UPS is the best choice to protect your data and keep you connected during utility blackout.
●  UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
●  Controlled by a technologically advanced microprocessor guaranteeing high reliability
●  USB port and monitor software is designed to manage UPS status via PC (Optional)
●  Built-in DC start function enables UPS to be started without AC power supplied
●  Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
●  Constant current, constant voltage battery charger (CCCV Battery Charger)
●  UPS will charge itself even though power switch is off (Off mode charging)
●  Smart USB charging 5VDC 2.4A max. for smart devices power charging
●  Over / under voltage protection (UPS will go to battery mode)
●  Lightning / surge protection 175 joules
●  Easy replacement battery design
MODEL Plus5E-S600AU Plus5E-S800AU Plus5E-S1000AU Plus5E-S1200AU Plus5E-S1500AU Plus5E-S2000AU
Plus5E-US600AU Plus5E-US800AU Plus5E-US1000AU Plus5E-US1200AU Plus5E-US1500AU Plus5E-US2000AU
CAPACITY 600VA/360W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W 2000VA/1200W
INPUT
Voltage 220/230/240Vac
Voltage Range -30%, +25%
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation +/-10%
Frequency AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz
Waveform Simulated Sinewave
Transfer Time <6ms (Typical)

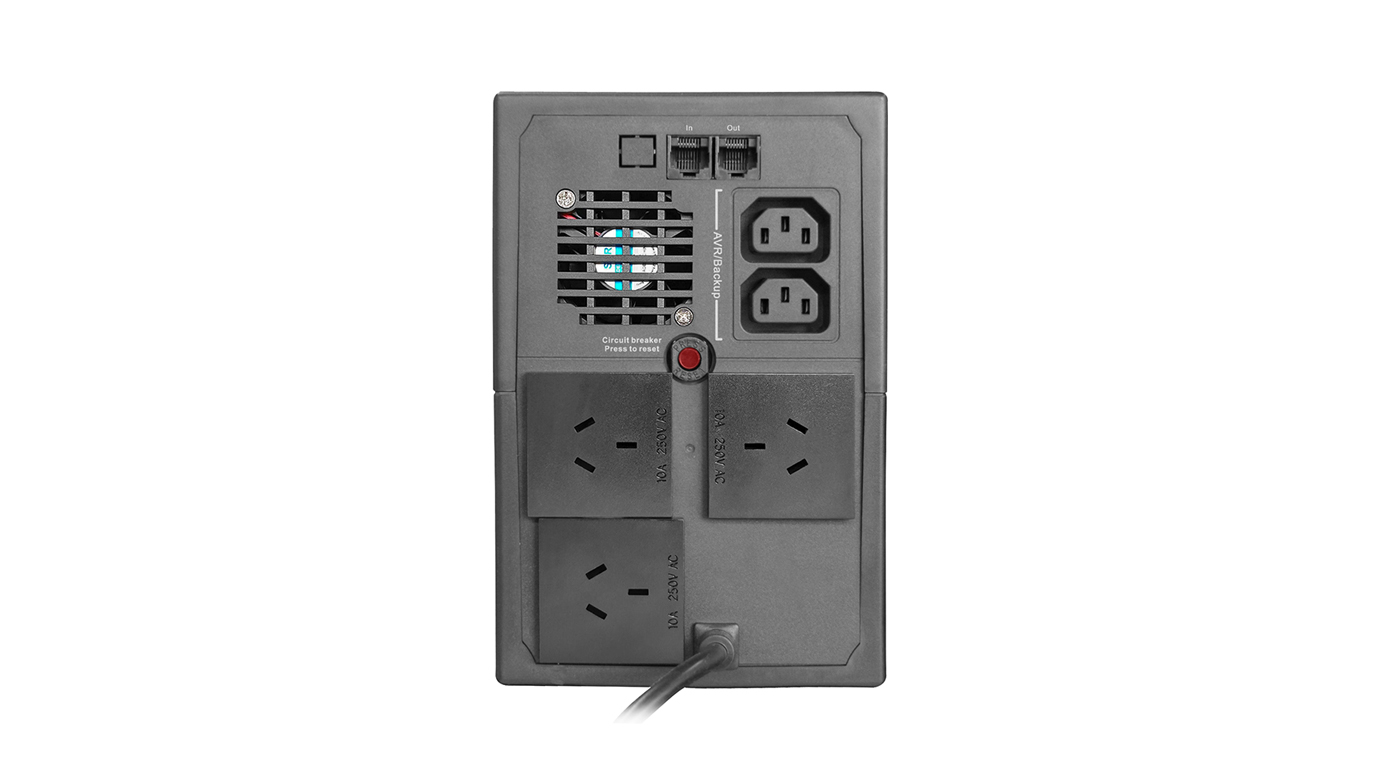

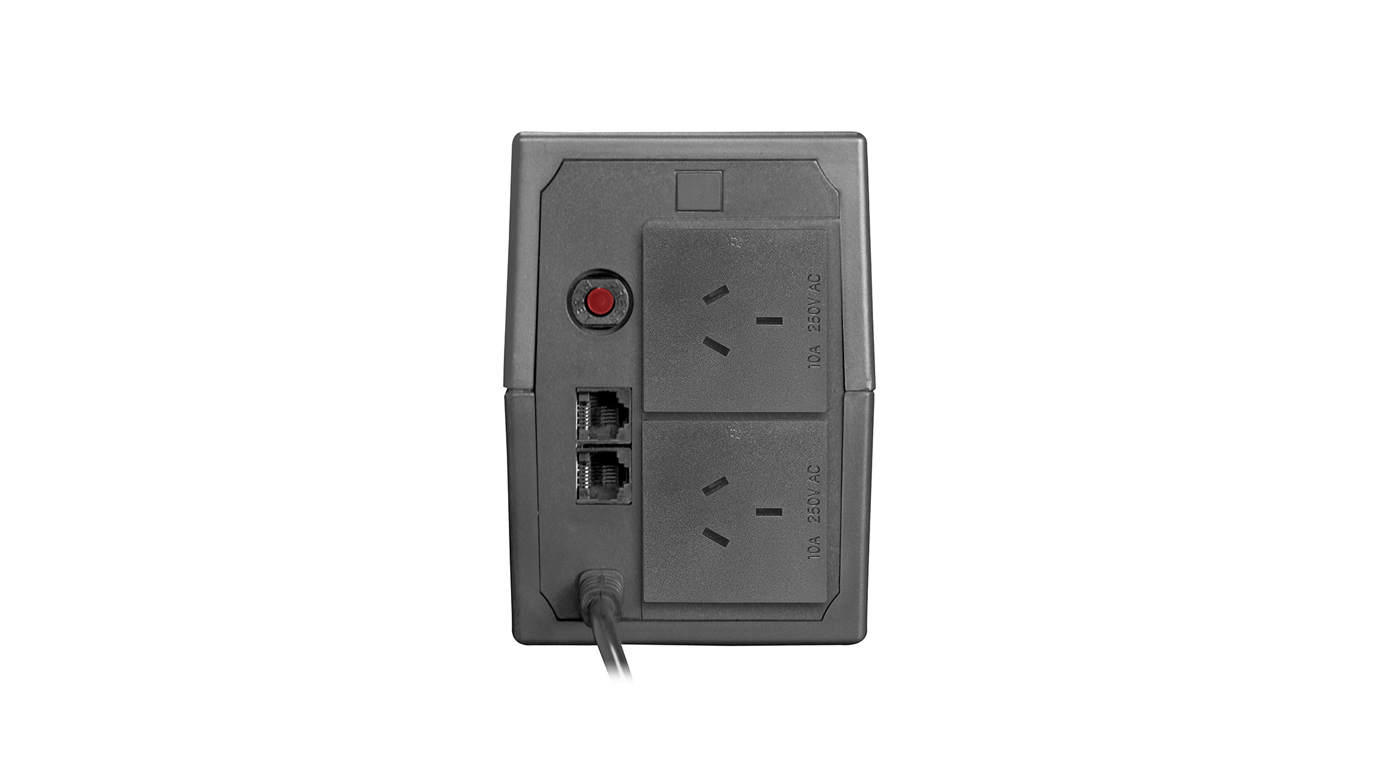

Outlet Australian *2pcs Backup/AVR/Surge protected Australian *4pcs + IEC-320 C13 *2pcs Backup/AVR/Surge protected
Smart USB Charging 2 ports, 5VDC 2.4A max.
BATTERY
Type Maintenance free sealed lead-acid battery
Voltage 12VDC 24VDC
Capacity & Number 12V/7AH*1pc 12V/9AH*1pc 12V/7AH*2pcs 12V/7AH*2pcs 12V/9AH*2pcs 12V/9AH*2pcs
Recharge Time 5 hours to 90% after complete discharge
Safety Protection Over Charge & Over Discharge Protection
Advanced Battery Management Yes
DISPLAY
LED Indicators AC Normal (Green), Battery backup (Yellow), UPS cut off / Fault (Red)
AUDIBLE ALARM
Battery Mode Two short tones every 8 seconds
Low Battery Four short tones every second
Overload Beeping continuously
Fault Beeping continuously
MANAGEMENT
USB Communication Port Plus5E-S series: N/A
Plus5E-US series: Yes, and download software is inlcuded. Monitoring software can support Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2003/2008/2012, Novell NetWare v3.1x/v4.x/v5.x, Linux, FreeBSD, MacOSX10.5.5
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
Acousitc Noise <40dB at 1M
PHYSICAL
Net Weight 4.68kg 5.76kg 9.08kg 9.16kg 10.8kg 11.8kg
Dimension (D*W*H) 315.5*100*141mm 343*135*208mm
*Product specifications are subject to change without further notice.
MODEL NAME POWER RATING MODEL FORMAT INDICATORS USB CHARGING USB COMMUNICATION PORT SOCKET TYPE
Plus5E-S600AU 600VA/360W Tower Type LED YES N/A Australian (Type I)
Plus5E-US600AU 600VA/360W Tower Type LED YES YES Australian (Type I)
Plus5E-S800AU 800VA/480W Tower Type LED YES N/A Australian (Type I)
Plus5E-US800AU 800VA/480W Tower Type LED YES YES Australian (Type I)
Plus5E-S1000AU 1000VA/600W Tower Type LED YES N/A Australian (Type I) +
IEC-320 C13
Plus5E-US1000AU 1000VA/600W Tower Type LED YES YES Australian (Type I) +
IEC-320 C13
Plus5E-S1200AU 1200VA/720W Tower Type LED YES N/A Australian (Type I) +
IEC-320 C13
Plus5E-US1200AU 1200VA/720W Tower Type LED YES YES Australian (Type I) +
IEC-320 C13
Plus5E-S1500AU 1500VA/900W Tower Type LED YES N/A Australian (Type I) +
IEC-320 C13
Plus5E-US1500AU 1500VA/900W Tower Type LED YES YES Australian (Type I) +
IEC-320 C13
Plus5E-S2000AU 2000VA/1200W Tower Type LED YES N/A Australian (Type I) +
IEC-320 C13
Plus5E-US2000AU 2000VA/1200W Tower Type LED YES YES Australian (Type I) +
IEC-320 C13

*The capacity of connected loading do not exceed the capacity of UPS.
