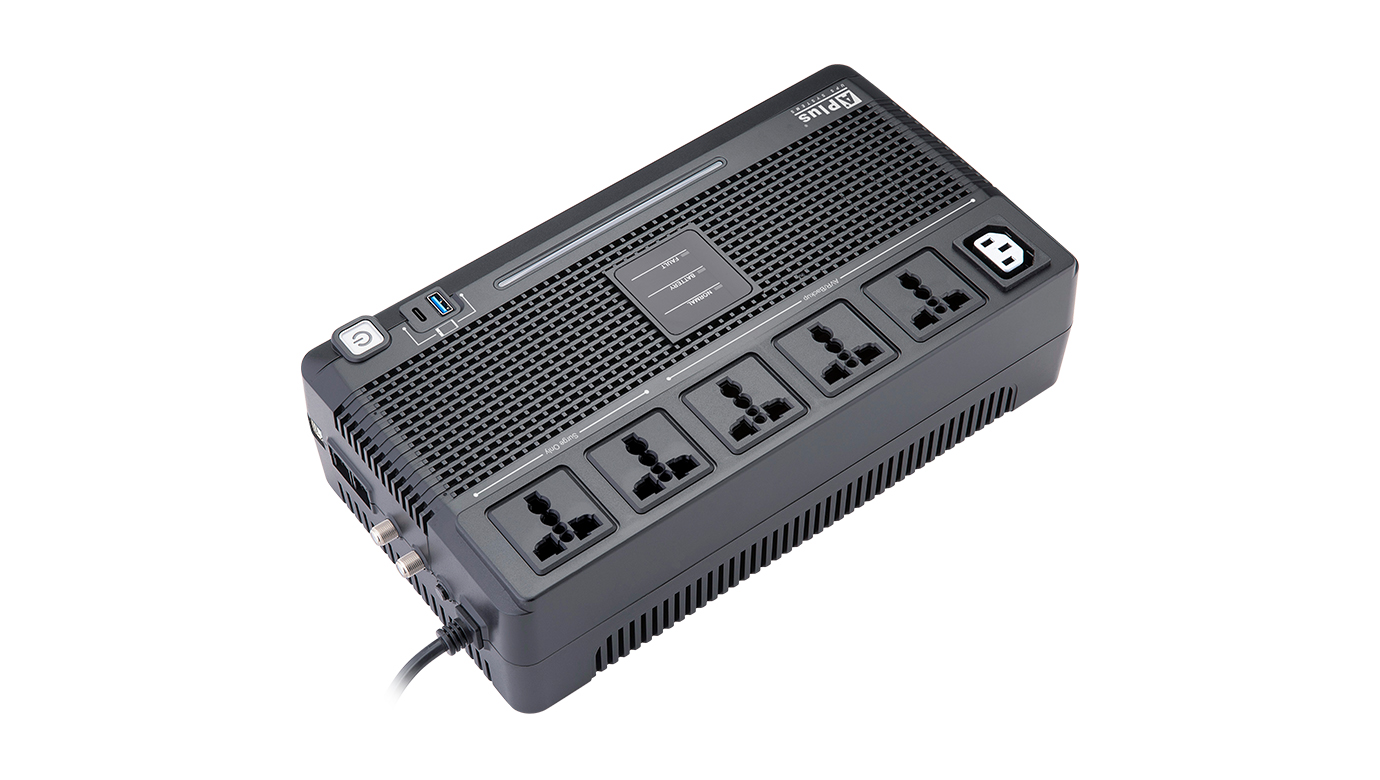

Plus3E Series
600VA to 800VA
The Plus3E series offers guaranteed battery backup power during outage and unsafe fluctuation, along with full protection from damaging surges and spikes.
Featuring 600VA to 800VA configuration with microprocessor controller, voltage stabilizer, LED status indicators in a compacted slim unit, Plus3E series UPS is a good choice to keep wireless networks, computers, gaming consoles and other electronics connected during utility blackout.
●  UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
●  Smart USB charging station 5VDC 2.4A max. for smart devices power charging (Optional)
●  Controlled by a technologically advanced microprocessor guaranteeing high reliability
●  USB port and monitor software is designed to manage UPS status via PC (Optional)
●  Built-in DC start function enables UPS to be started without AC power supplied
●  Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
●  Constant current, constant voltage battery charger (CCCV Battery Charger)
●  UPS will charge itself even though power switch is off (Off mode charging)
●  Over / under voltage protection (UPS will go to battery mode)
●  Coaxial cable line / modem / phone protection (Optional)
●  Lightning / surge protection 175 joules
CAPACITY 600VA/360W 800VA/480W
INPUT
Voltage 220/230/240Vac
Voltage Range -30%, +25%
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation +/-10%
Frequency AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz
Waveform Simulated Sinewave
Transfer Time <6ms (Typical)
Outlet Universal *3pcs / IEC-320 C13 *1pcs Back-up/AVR/Surge protected + Universal *2pcs Surge protected only
Coax-TV Protector (Optional) 2 ports
USB Charge (Optional) 2 ports 5VDC, 2.4A Max.
BATTERY
Type Maintenance free sealed lead-acid battery
Voltage 12VDC
Capacity & Number 12V/7AH*1pc 12V/9AH*1pc
Recharge Time 5 hours to 90% after complete discharge
Safety Protection Over Charge & Over Discharge Protection
Advanced Battery Management Yes
DISPLAY
LED Status Indicators AC normal (Blue), Battery backup (Yellow), UPS cut off/Fault (Red)
AUDIBLE ALARM
Battery Mode Two short tones every 8 seconds
Low Battery Four short tones every second
Overload Beeping continuously
Fault Beeping continuously
MANAGEMENT
USB Communication port (Optional) Download monitoring software can support Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2003/2008/2012, Novell NetWare v3.1x/v4.x/v5.x, Linux, FreeBSD, MacOSX10.5.5
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
Acousitc Noise <40dB at 1M
PHYSICAL
Net Weight 4.72kg 5.93kg
Dimension (D*W*H) 320*175*95mm
*Product specifications are subject to change without further notice.
MODEL NAME POWER RATING MODEL FORMAT INDICATORS USB COMMUNICATION PORT USB CHARGE SOCKET TYPE
Plus3E-600R4 600VA/360W Brick Type LED N/A N/A Universal Socket +
IEC-320 C13
Plus3E-U600R4 600VA/360W Brick Type LED YES N/A Universal Socket +
IEC-320 C13
Plus3E-S600R4 600VA/360W Brick Type LED N/A YES Universal Socket +
IEC-320 C13
Plus3E-US600R4 600VA/360W Brick Type LED YES YES Universal Socket +
IEC-320 C13
Plus3E-800R4 800VA/480W Brick Type LED N/A N/A Universal Socket +
IEC-320 C13
Plus3E-U800R4 800VA/480W Brick Type LED YES N/A Universal Socket +
IEC-320 C13
Plus3E-S800R4 800VA/480W Brick Type LED N/A YES Universal Socket +
IEC-320 C13
Plus3E-US800R4 800VA/480W Brick Type LED YES YES Universal Socket +
IEC-320 C13

*The capacity of connected loading do not exceed the capacity of UPS.
