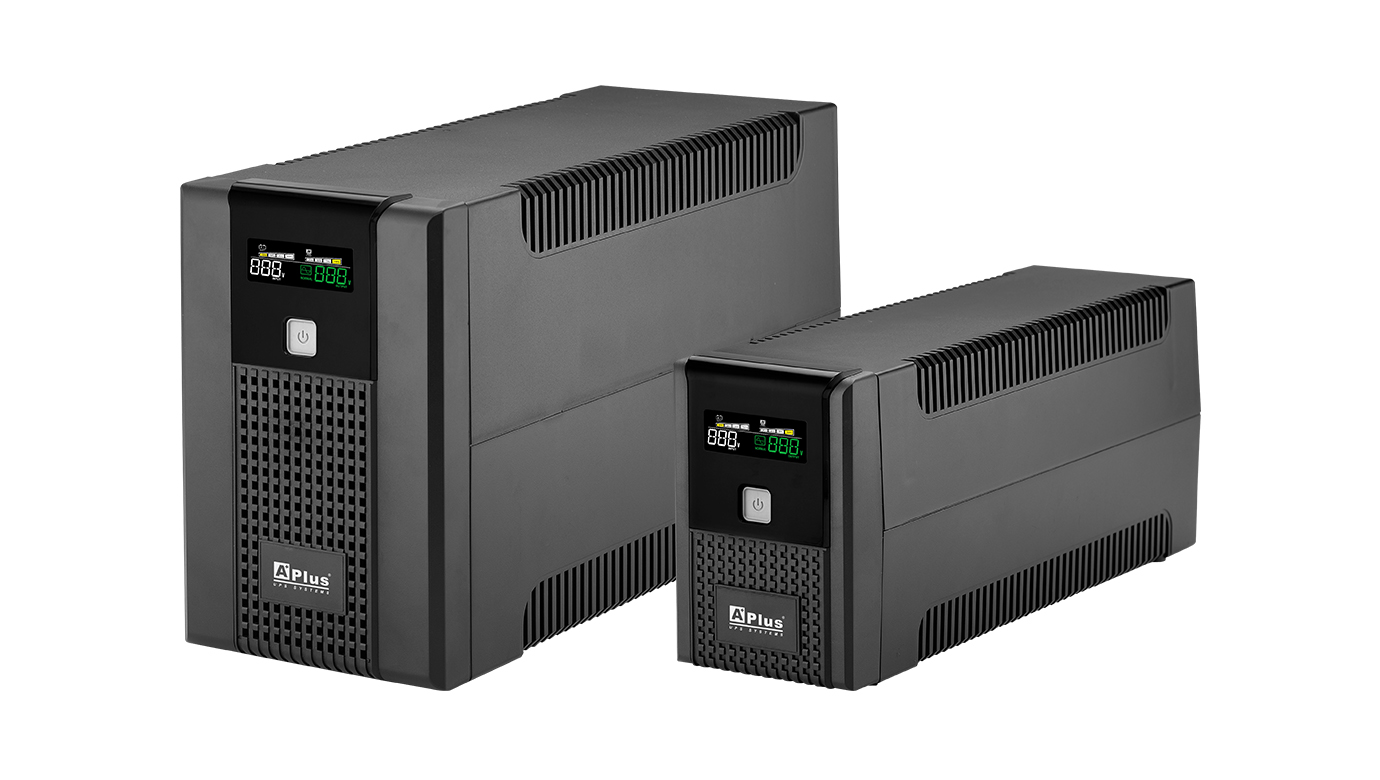

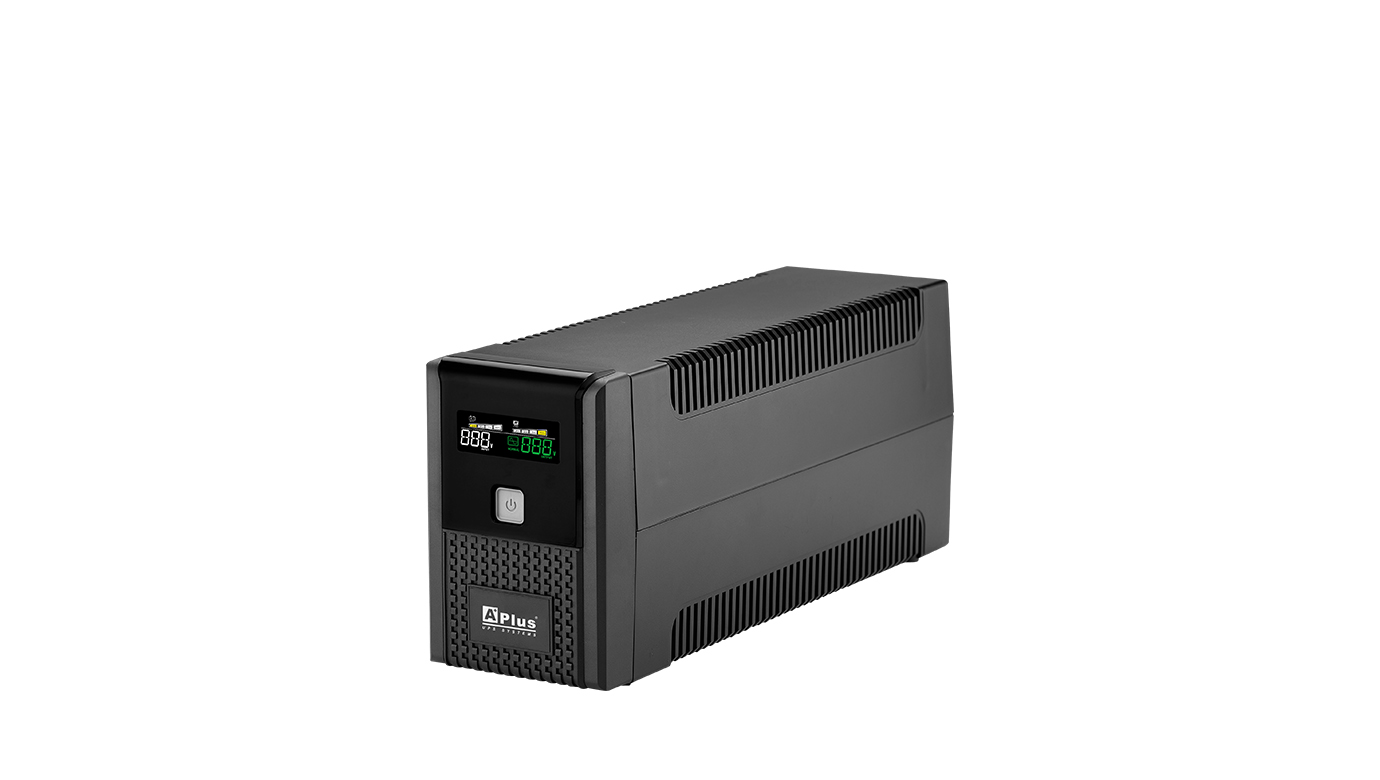

Plus5L Series
600VA to 2000VA
The Plus5L Series 600VA to 2000VA provides guaranteed battery backup power during outage and unsafe fluctuation, along with full protection from damaging surges and spikes. Unique battery compartment makes it easy, fast and money saving to change battery.
Featuring 600VA to 2000VA integrated with microprocessor controller, voltage stabilizer, LCD display and battery easy replacement in a stand-alone unit, Plus5L Series UPS is the best choice to protect your data and keep you connected during utility blackout.
 UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
 Controlled by a technologically advanced microprocessor guaranteeing high reliability
 USB port and monitor software is designed to manage UPS status via PC (Optional)
 Built-in DC start function enables UPS to be started without AC power supplied
 Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
 Constant current, constant voltage battery charger (CCCV Battery Charger)
 UPS will charge itself even though power switch is off (Off mode charging)
 Over / under voltage protection (UPS will go to battery mode)
 Lightning / surge protection 175 joules
 Easy replacement battery design
MODEL Plus5L-600R4 Plus5L-800R4 Plus5L-1000R4 Plus5L-1200R4 Plus5L-1500R4 Plus5L-2000R4
Plus5L-U600R4 Plus5L-U800R4 Plus5L-U1000R4 Plus5L-U1200R4 Plus5L-U1500R4 Plus5L-U2000R4
CAPACITY 600VA/360W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W 2000VA/1200W
INPUT
Voltage 220/230/240Vac
Voltage Range -30%, +25%
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation +/-10%
Frequency AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz
Waveform Simulated Sinewave
Transfer Time <6ms (Typical)

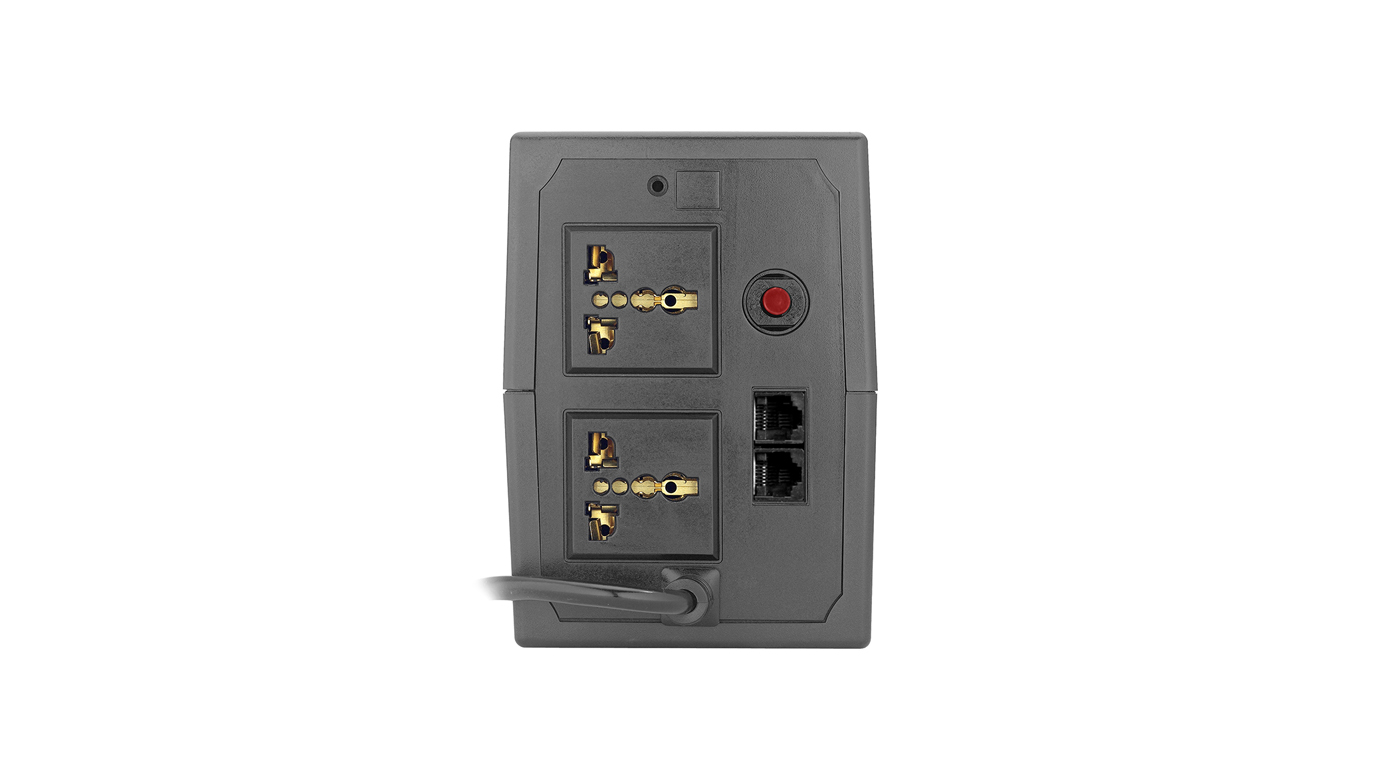

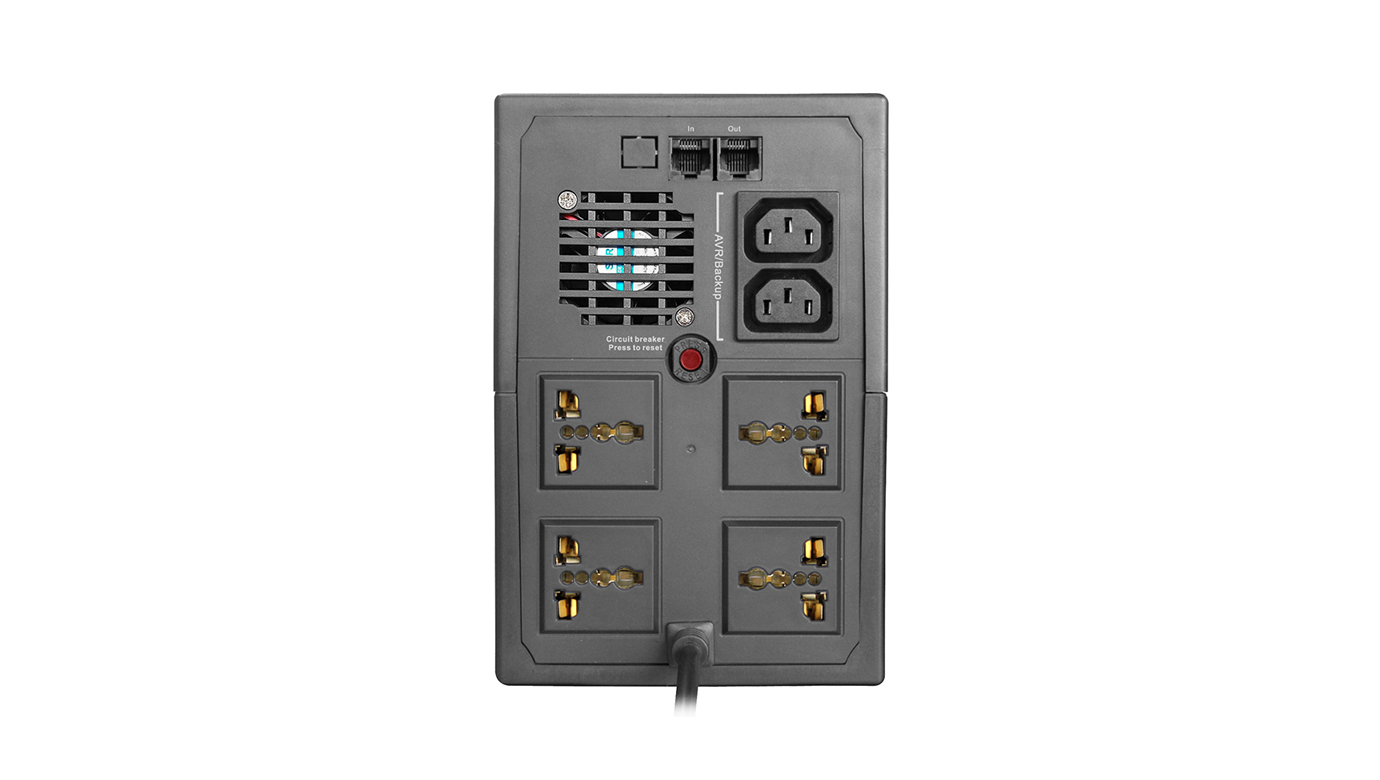

Outlet Universal *2pcs Backup/AVR/ Surge protected Universal *4pcs + IEC-320 C13 *2pcs Backup/AVR/Surge protected
BATTERY
Type Maintenance free sealed lead-acid battery
Voltage 12VDC 24VDC
Capacity & Number 12V/7AH*1pc 12V/9AH*1pc 12V/7AH*2pcs 12V/7AH*2pcs 12V/9AH*2pcs 12V/9AH*2pcs
Recharge Time 5 hours to 90% after complete discharge
Safety Protection Over Charge & Over Discharge Protection
Advanced Battery Management Yes
DISPLAY
LCD Status Indicators Input voltage, Output voltage, Load level, Battery level, Fault, Battery fail, Overload, AC normal
AUDIBLE ALARM
Battery Mode Two short tones every 8 seconds
Low Battery Four short tones every second
Overload Beeping continuously
Fault Beeping continuously
MANAGEMENT
USB Communication Port Plus5L series: N/A
Plus5L-U series: Yes, and download software is inlcuded. Monitoring software can support Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2003/2008/2012, Novell NetWare v3.1x/v4.x/v5.x, Linux, FreeBSD, MacOSX10.5.5
ENVIRONMENT
Operating Temperature  0°C-40°C (32°F-104°F)
Humidity  0-95% (Non-condensing)
Acousitc Noise  <40dB at 1M
PHYSICAL
Net Weight 4.68kg 5.76kg 9.08kg 9.16kg 10.8kg 11.8kg
Dimension (D*W*H) 315.5*100*141mm 343*135*208mm
*Product specifications are subject to change without further notice.
MODEL NAME POWER RATING MODEL FORMAT INDICATORS USB  COMMUNICATION PORT SOCKET TYPE
Plus5L-600R4 600VA/360W Tower Type LCD N/A Universal Socket
Plus5L-U600R4 600VA/360W Tower Type LCD YES Universal Socket
Plus5L-800R4 800VA/480W Tower Type LCD N/A Universal Socket
Plus5L-U800R4 800VA/480W Tower Type LCD YES Universal Socket
Plus5L-1000R4 1000VA/600W Tower Type LCD N/A Universal Socket +
IEC-320 C13
Plus5L-U1000R4 1000VA/600W Tower Type LCD YES Universal Socket +
IEC-320 C13
Plus5L-1200R4 1200VA/720W Tower Type LCD N/A Universal Socket +
IEC-320 C13
Plus5L-U1200R4 1200VA/720W Tower Type LCD YES Universal Socket +
IEC-320 C13
Plus5L-1500R4 1500VA/900W Tower Type LCD N/A Universal Socket +
IEC-320 C13
Plus5L-U1500R4 1500VA/900W Tower Type LCD YES Universal Socket +
IEC-320 C13
Plus5L-2000R4 2000VA/1200W Tower Type LCD N/A Universal Socket +
IEC-320 C13
Plus5L-U2000R4 2000VA/1200W Tower Type LCD YES Universal Socket +
IEC-320 C13

*The capacity of connected loading do not exceed the capacity of UPS.
