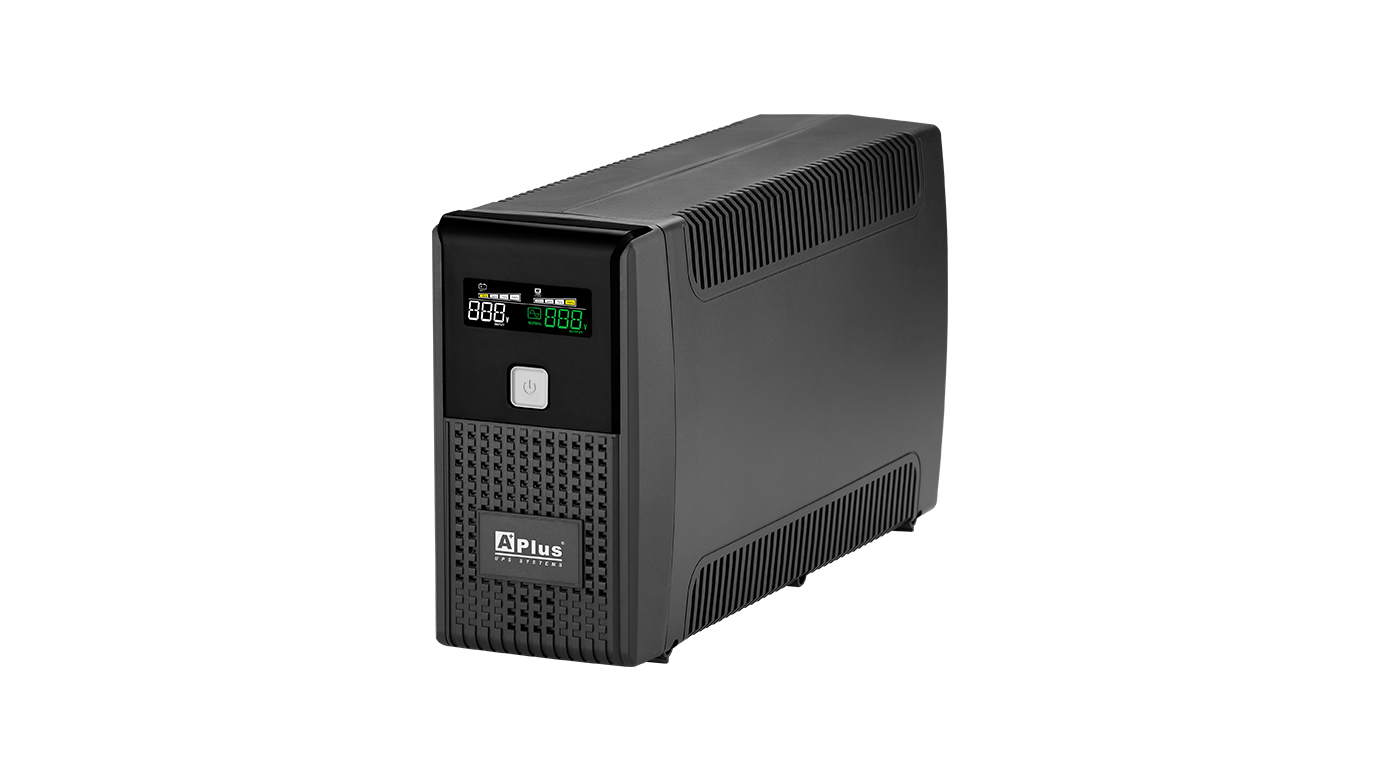

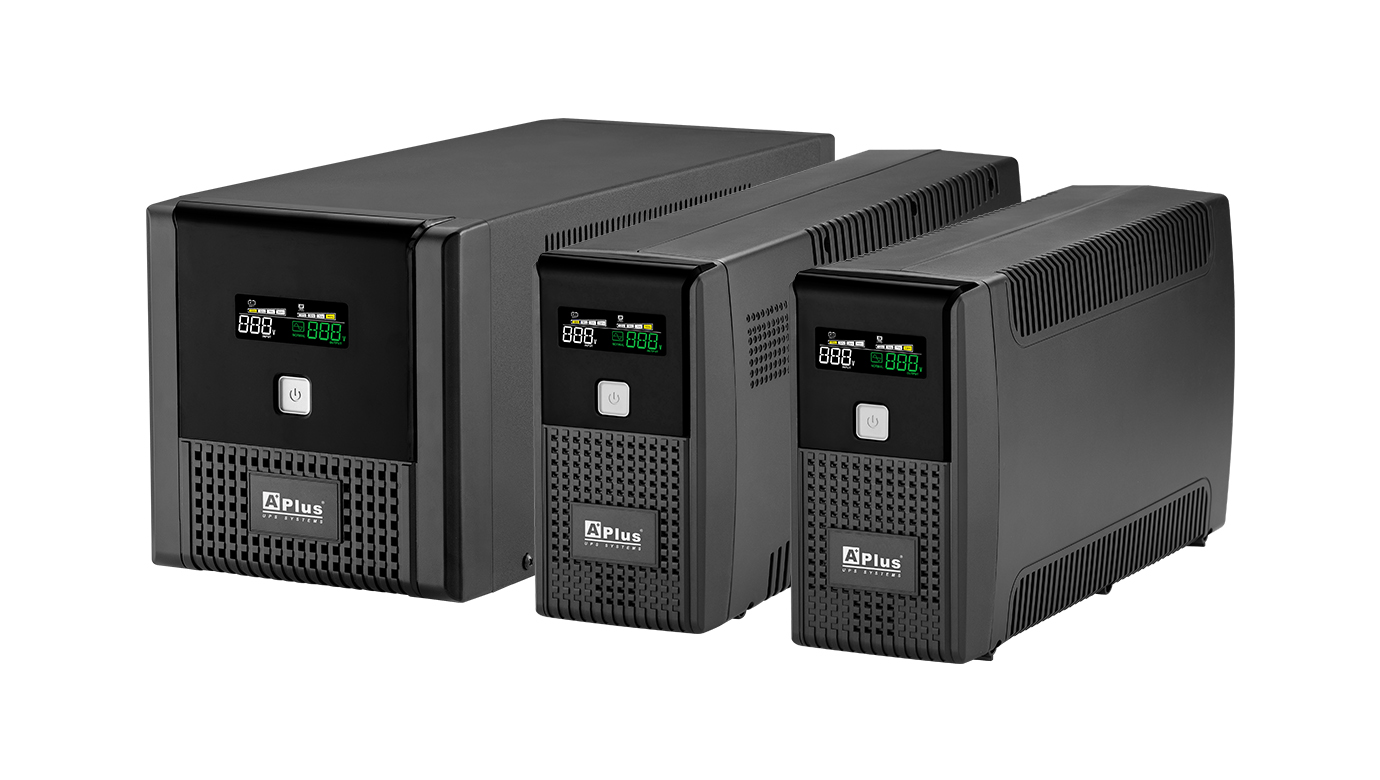

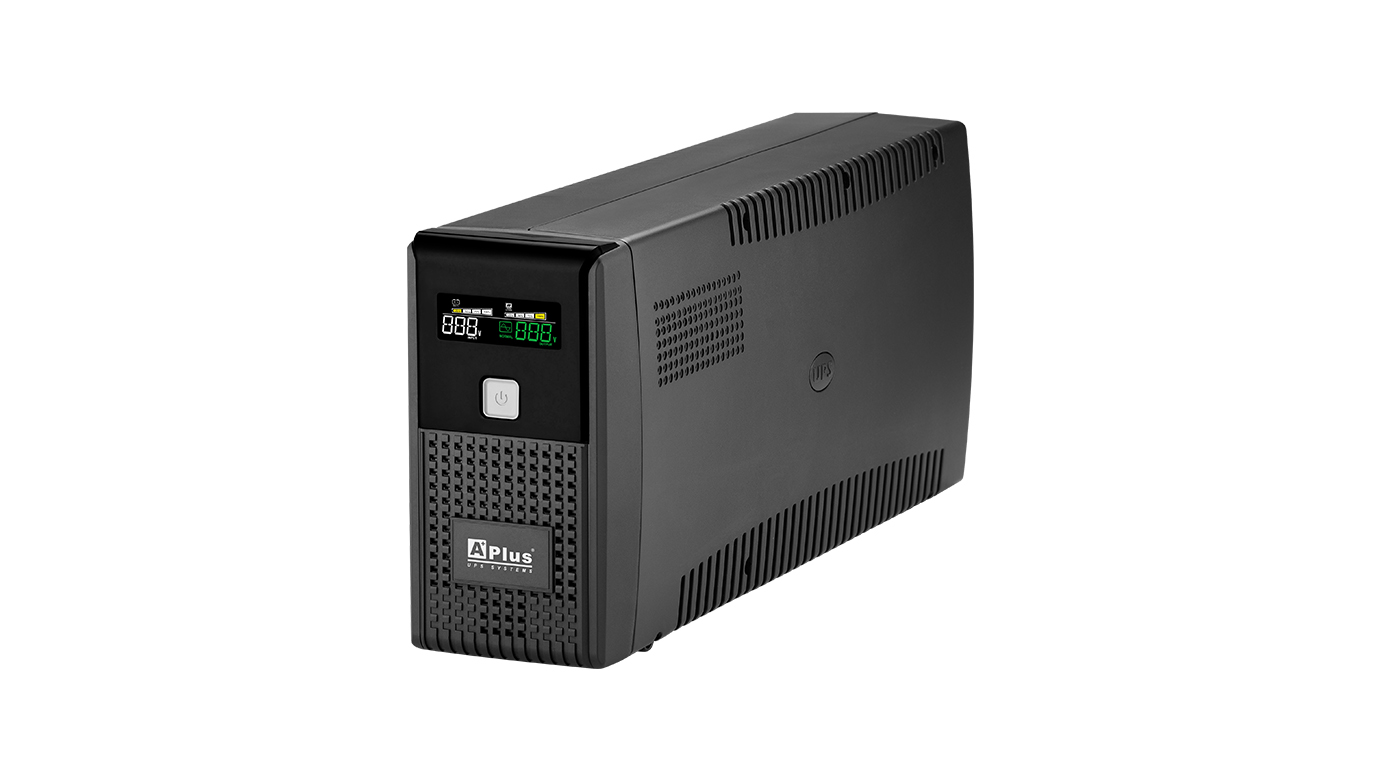

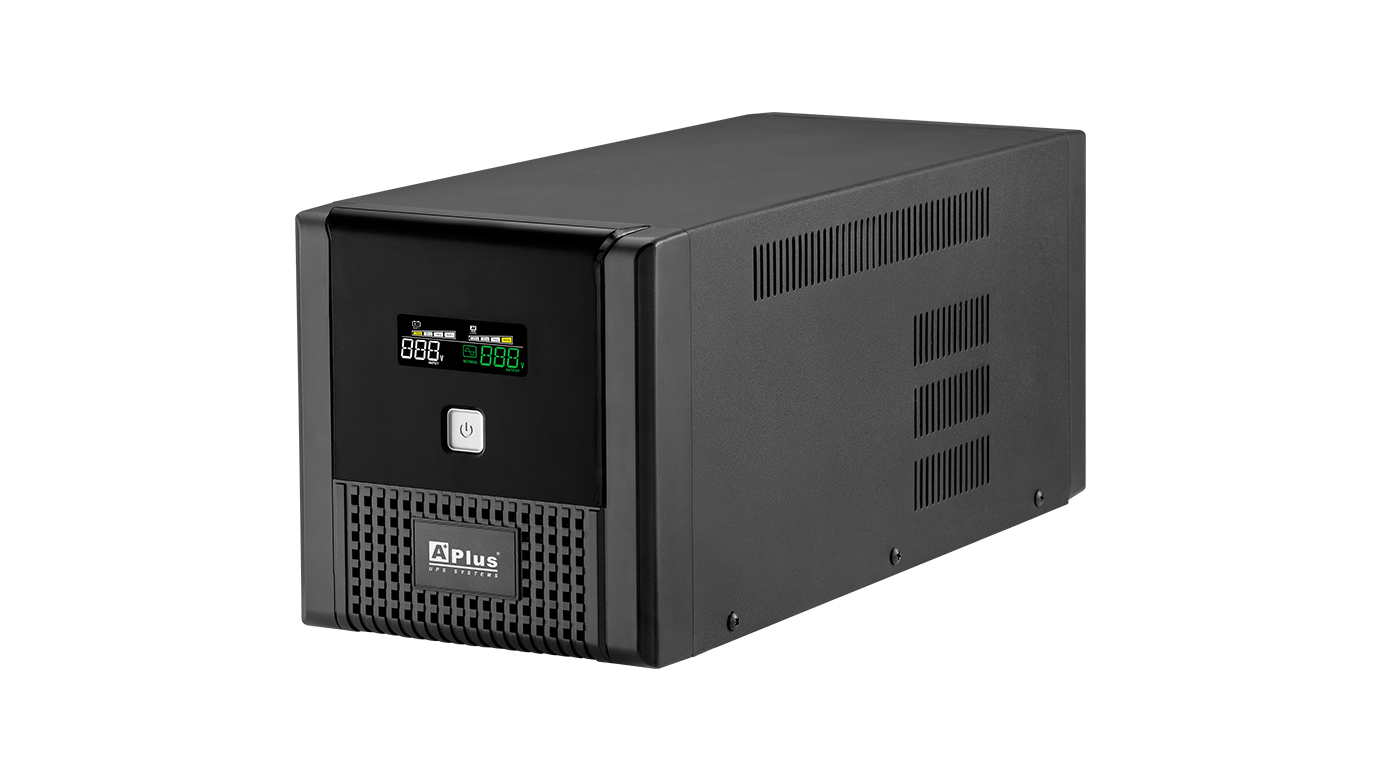

Plus1L Series
600VA to 2000VA
The Plus1L Series 600VA to 2000VA provides guaranteed battery backup power during outage and unsafe fluctuation, along with full protection from damaging surges and spikes.
Featuring 600VA to 2000VA integrated with microprocessor controller, voltage stabilizer, LCD display in a stand-alone unit, Plus1L Series UPS is the best choice to protect your data and keep you connected during utility blackout.
●  UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
●  Controlled by a technologically advanced microprocessor guaranteeing high reliability
●  USB port and monitor software is designed to manage UPS status via PC (Optional)
●  Built-in DC start function enables UPS to be started without AC power supplied
●  Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
●  Constant current, constant voltage battery charger (CCCV Battery Charger)
●  UPS will charge itself even though power switch is off (Off mode charging)
●  Provide Lightning, surge, overload, and short circuit protection
●  Over / under voltage protection (UPS will go to battery mode)
MODEL Plus1L-600G Plus1L-800G Plus1L-1000G Plus1L-1200G Plus1L-1500G Plus1L-2000G
Plus1L-U600G Plus1L-U800G Plus1L-U1000G Plus1L-U1200G Plus1L-U1500G Plus1L-U2000G
CAPACITY 600VA/360W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W 2000VA/1200W
INPUT
Voltage 220/230Vac
Voltage Range -30%, +25%
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation +/-10%
Frequency AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz
Waveform Simulated Sinewave
Transfer Time <6ms (Typical)

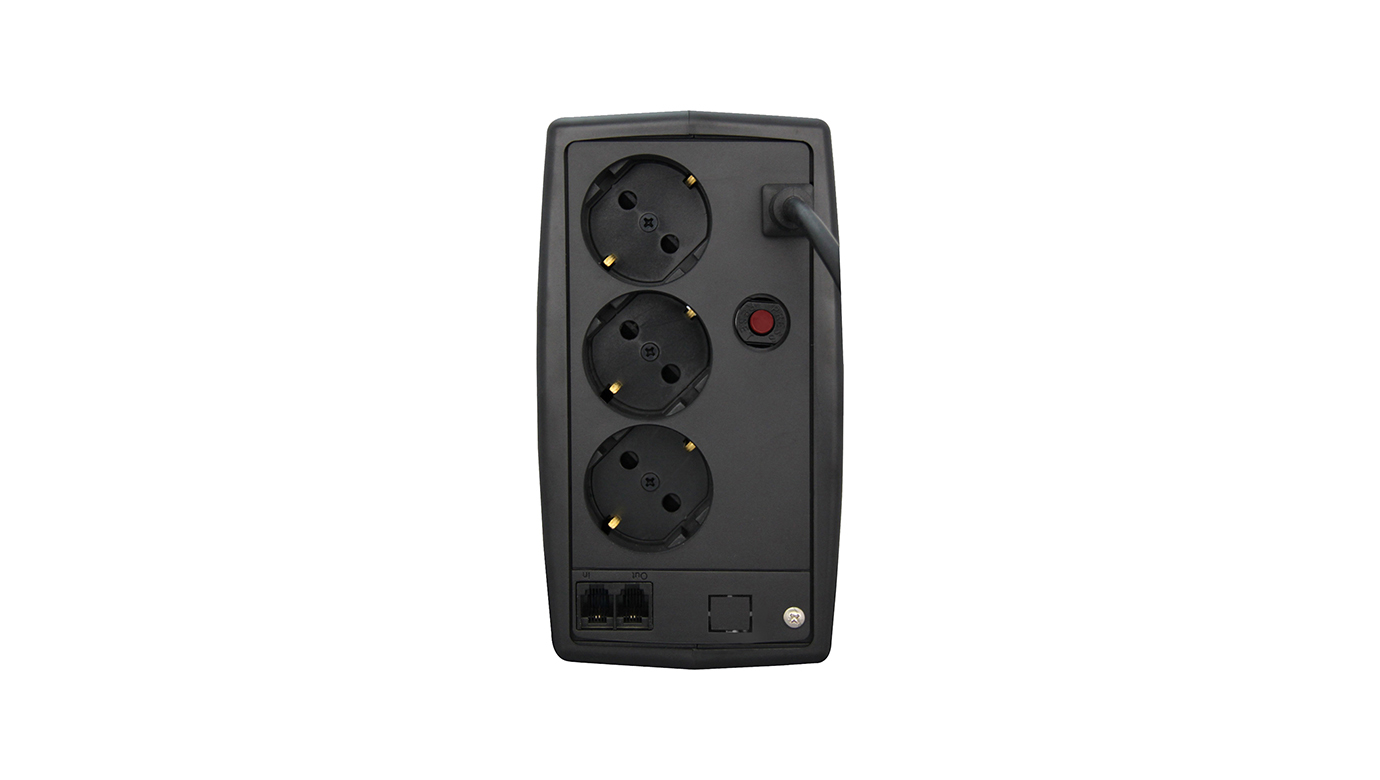

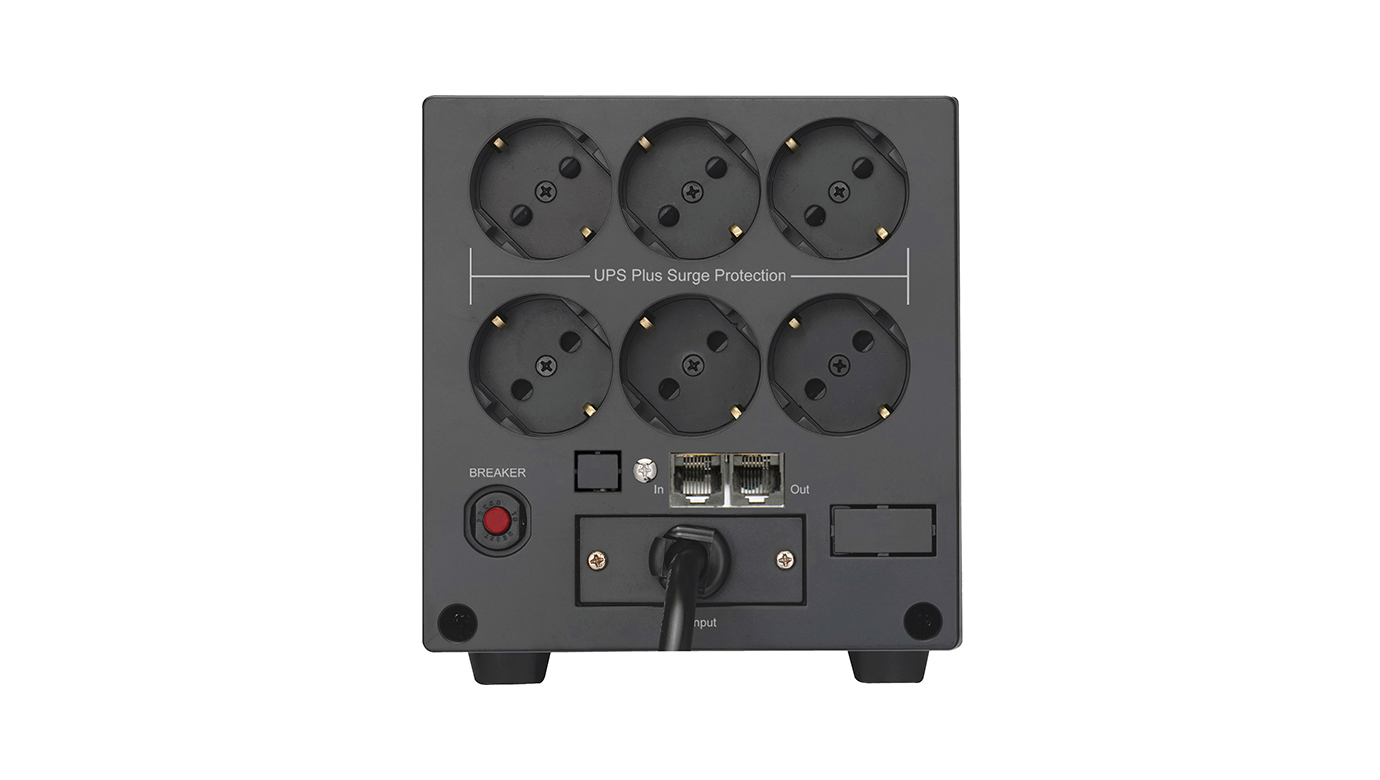

Outlet: Schuko 3pcs backup/AVR/Surge protected 6pcs backup/AVR/Surge protected
BATTERY
Type Maintenance free sealed lead-acid battery
Voltage 12VDC 24VDC
Capacity & Number 12V/7AH*1pc 12V/9AH*1pc 12V/7AH*2pcs 12V/7AH*2pcs 12V/9AH*2pcs 12V/9AH*2pcs
Recharge Time 5 hours to 90% after complete discharge
Safety Protection Over Charge & Over Discharge Protection
Advanced Battery Management Yes
DISPLAY
LCD Status Indicators Input voltage, Output voltage, Load level, Battery level, Fault, Battery fail, Overload, AC normal
AUDIBLE ALARM
Battery Mode Two short tones every 8 seconds
Low Battery Four short tones every second
Overload Beeping continuously
Fault Beeping continuously
MANAGEMENT
USB Communication Port Plus1L series: N/A
Plus1L-U series: Yes, and download software is inlcuded. Monitoring software can support Microsoft Windows 2000/XP/Vista/7/8/10, Server 2003/2008/2012, Novell NetWare v3.1x/v4.x/v5.x, Linux, FreeBSD, MacOSX10.5.5
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
Acousitc Noise <40dB at 1M
PHYSICAL
Dimension (D*W*H) 305*98*170mm 385*98*170mm 360*150*160mm
*Product specifications are subject to change without further notice.
MODEL NAME POWER RATING MODEL FORMAT INDICATORS USB COMMUNICATION PORT SOCKET TYPE
Plus1L-600G 600VA/360W Tower Type LCD N/A German Socket (Schuko / Type F)
Plus1L-U600G 600VA/360W Tower Type LCD YES German Socket (Schuko / Type F)
Plus1L-800G 800VA/480W Tower Type LCD N/A German Socket (Schuko / Type F)
Plus1L-U800G 800VA/480W Tower Type LCD YES German Socket (Schuko / Type F)
Plus1L-1000G 1000VA/600W Tower Type LCD N/A German Socket (Schuko / Type F)
Plus1L-U1000G 1000VA/600W Tower Type LCD YES German Socket (Schuko / Type F)
Plus1L-1200G 1200VA/720W Tower Type LCD N/A German Socket (Schuko / Type F)
Plus1L-U1200G 1200VA/720W Tower Type LCD YES German Socket (Schuko / Type F)
Plus1L-1500G 1500VA/900W Tower Type LCD N/A German Socket (Schuko / Type F)
Plus1L-U1500G 1500VA/900W Tower Type LCD YES German Socket (Schuko / Type F)
Plus1L-2000G 2000VA/1200W Tower Type LCD N/A German Socket (Schuko / Type F)
Plus1L-U2000G 2000VA/1200W Tower Type LCD YES German Socket (Schuko / Type F)

*The capacity of connected loading do not exceed the capacity of UPS.
