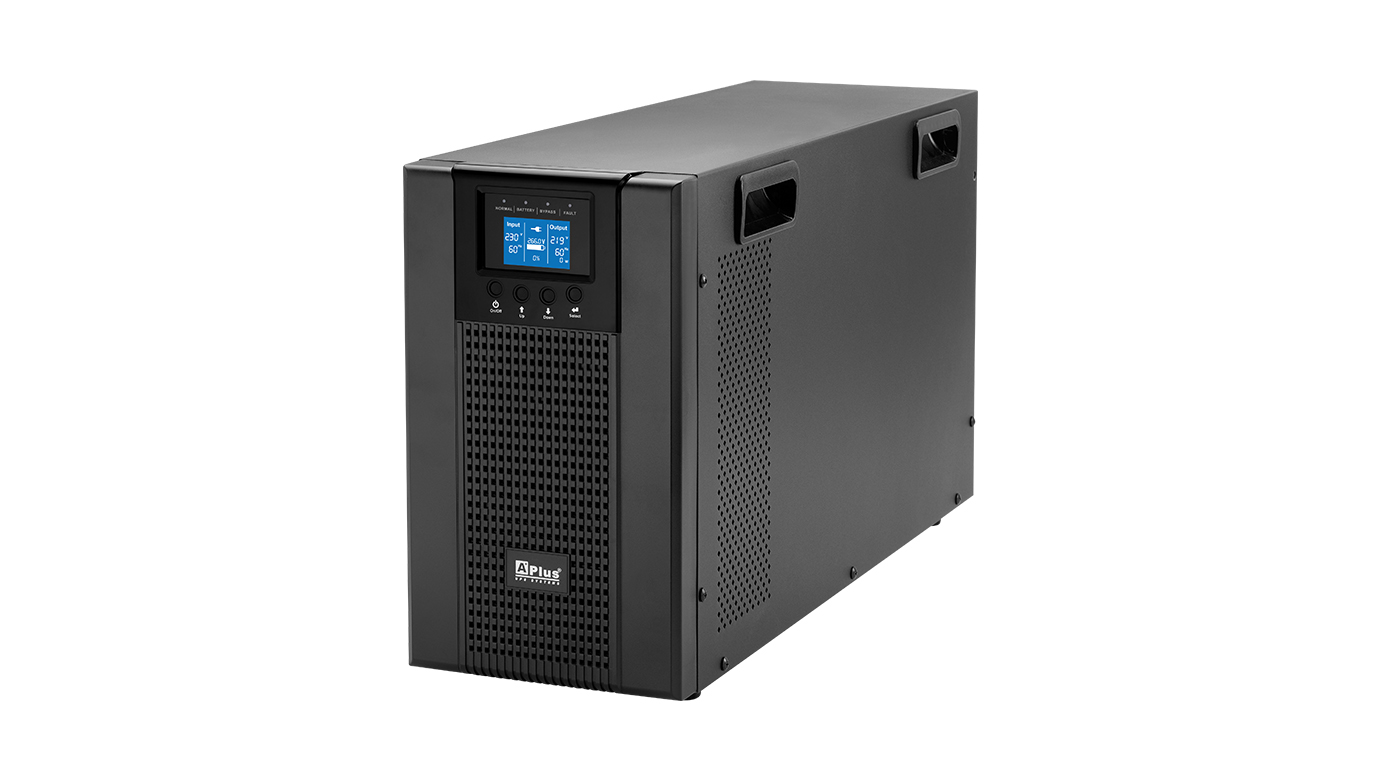

PlusPRO 1 Series ISO Tower
6000VA to 10000VA
Embedded with Isolation Transformer
The PlusPRO 1 Series ISO Tower 6000VA to 10000VA is a true double conversion online UPS with pure sinewave output and zero transfer time and enhanced capacity.

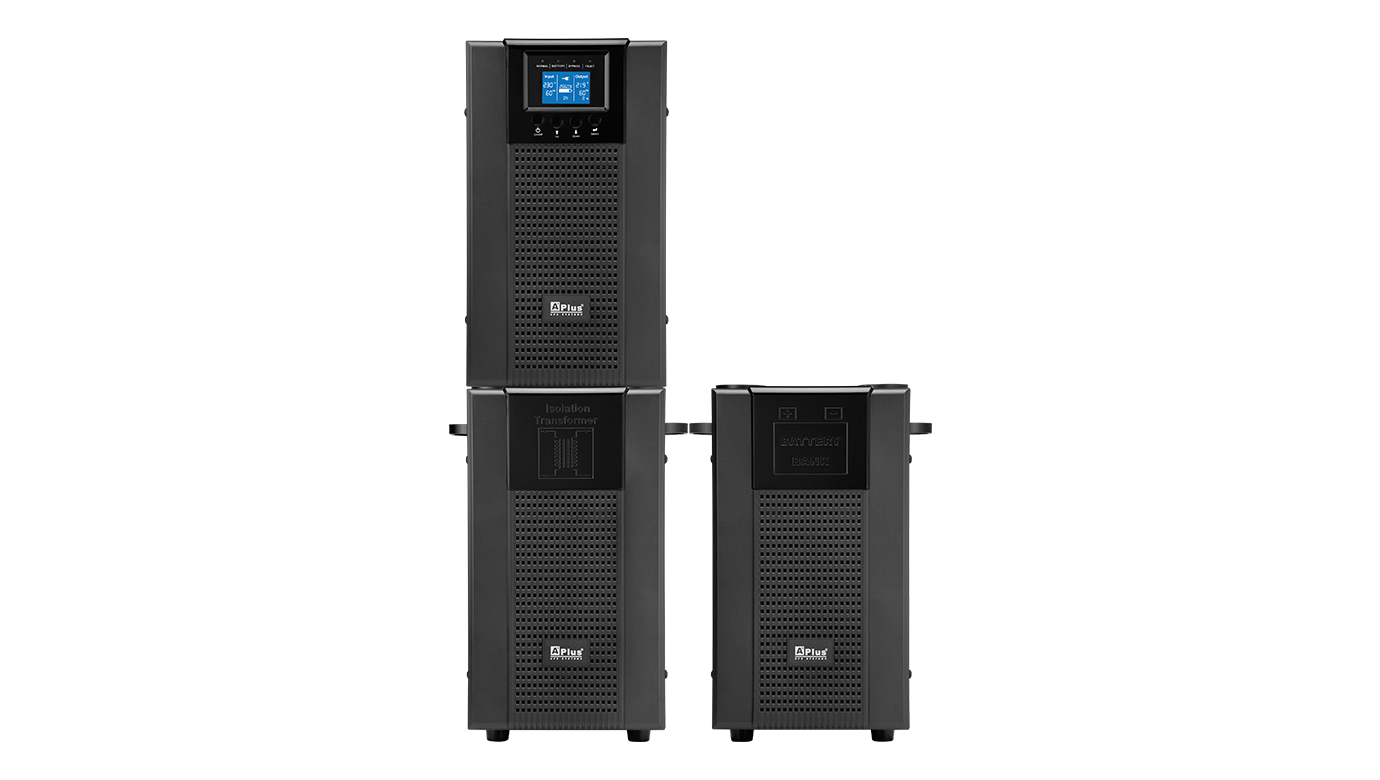

Main UPS, isolation transformer and battery in a split box makes this UPS flexible to comply with the demand of single output voltage, or dual output voltage, or long-time operation.
Featuring 6000VA, 10000VA integrated with LCD display, high output power factor 0.9, outstanding performance, optional isolation transformer box and optional external battery bank, PlusPRO 1 Series ISO Tower 6000VA to 10000VA model stand out as high efficient line of online UPS for mission critical equipment and industrial applications in long time operation or harsh mains conditions.
●  High performance true double conversion Online UPS 6000VA to 10000VA
●  Terminal block type Power Distribution Unit (PDU) for input and output

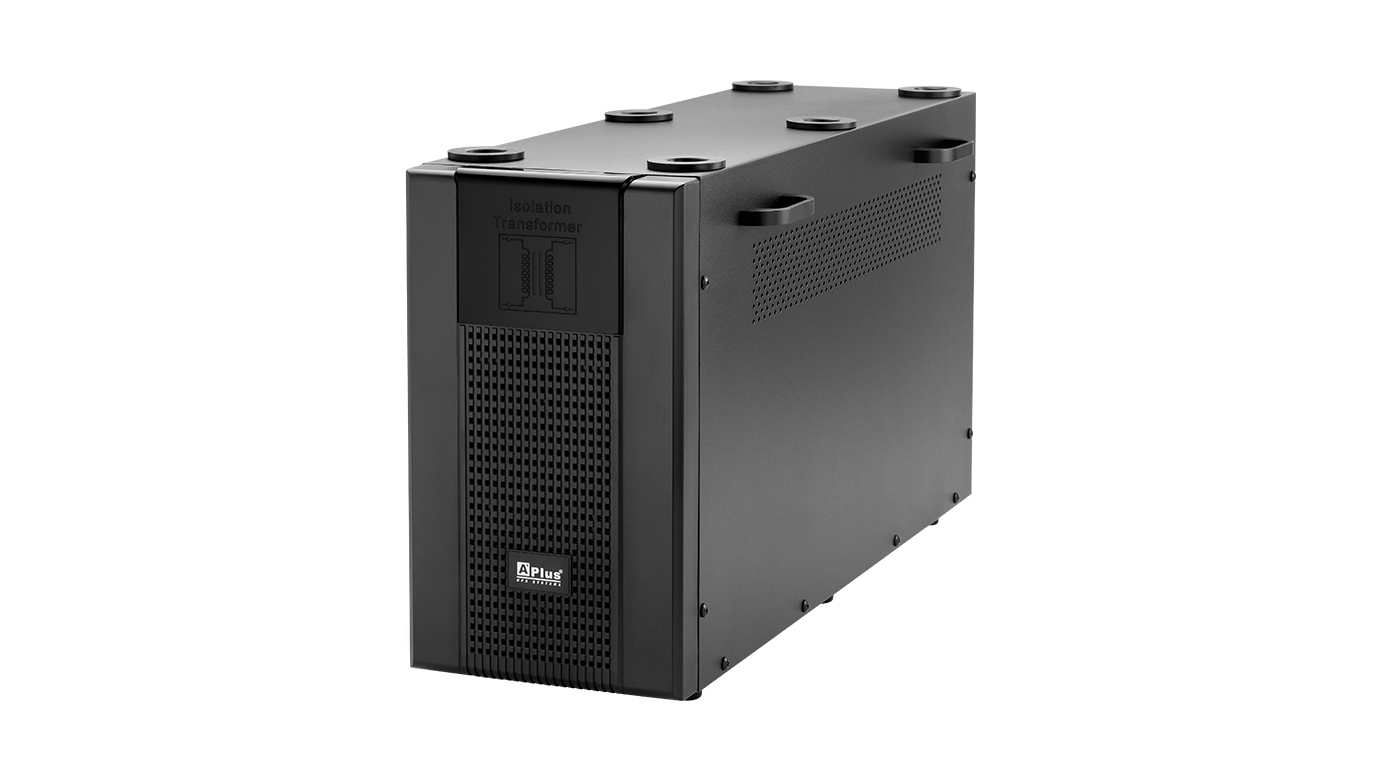

●  Isolation transformer in split box for dual output voltage
●  External battery box to extend backup time (Optional)
●  Microprocessor control guarantees high reliability
●  Low heat dissipation in long time operation
●  Emergency power-off function (EPO)
●  Input THDi <5% / Output THD <2%
●  High efficiency mode (ECO mode)
●  Output voltage regulation +/-2%
●  Automatic self-testing function
●  Power management software
●  Fan speed control & DC start
●  Output power factor 0.9
MODEL PlusPRO 1-6KT-ISO PlusPRO 1-10KT-ISO
CAPACITY 6KVA/5.4KW 10KVA/9KW
INPUT
Phase 1 Phase 2 Wires with Ground
Voltage 220/230/240Vac
Frequency 50Hz or 60Hz (Auto-sensing)
THDi <5% with R full load
OUTPUT
Phase 1 Phase 3 Wires with Ground
Voltage 220/110Vac, 230/115Vac, or 240/120Vac (set via control panel)
Voltage Regulation +/-2%
Frequency (Battery Mode) 50Hz or 60Hz +/- 0.05Hz
Waveform Pure Sinewave
THD <2% (linear load), <5% (non-linear load)
Crest Ratio 3 : 1
EFFICIENCY
To AC Mode >92% at full load and battery fully charged
To Battery Mode >92% at full load and 12VDC/battery
To ECO Mode >96% at full load and battery fully charged
BATTERY
Type Maintenance free sealed lead-acid battery
Voltage 240VDC
Capacity & Number 12V/7AH*20pcs 12V/9AH*20pcs
Recharge Time 7 hours to 90% 8 hours to 90%
TRANSFER TIME
Line Mode to Battery Mode 0ms
Inverter to Bypass 0ms
ECO Mode to Inverter <10ms
DISPLAY
LED Indicator Normal (Green), Bypass (Yellow), Fault (Red), Battery (Yellow)
LCD Display Load level, Battery voltage, Battery mode, AC mode, Bypass mode information
AUDIBLE ALARM
Battery Mode Beeps Every 4 Seconds
Low Battery Sounding Every Second
Overload Sounding Twice Every Second
Fault Beeping Continuously
COMMUNICATIONS
Interface (Port) USB Port (Dry Contact is optional)
Intelligent Slot Yes, but SNMP card is optional
EPO Emergency Power Off
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
Acousitc Noise <50dB at 1M
PHYSICAL
Main UPS (D*W*H) 623*192*347mm
Isolation Box with Terminal PDU (D*W*H) 623*192*347mm
Battery Box (D*W*H) 623*192*347mm
*Product specifications are subject to change without further notice.

*The capacity of connected loading do not exceed the capacity of UPS.
