PlusShield 9 Series
3000VA to 5000VA

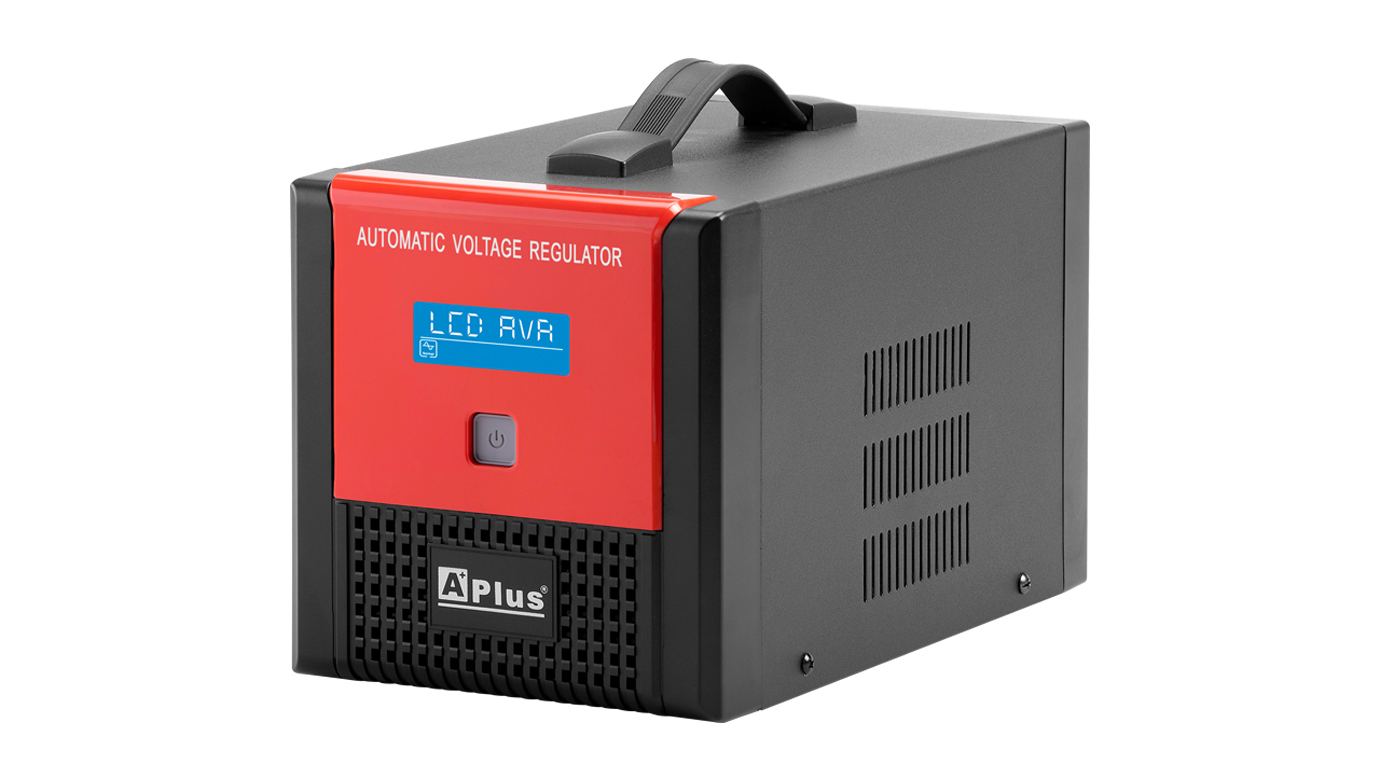

The PlusShield 9 Series 3000VA to 5000VA is designed to automatically maintain a constant voltage level to protect sensitive electronics from unsafe fluctuations such as power sag, surge, spike or over voltage.
Featuring 3000VA to 5000VA integrated with 3 steps regulation, 2/10/30 sec. delay reconnection and LCD status display in a compact unit. PlusShield 9 Series fits into working environments perfectly to protect any sensitive electronics in home or office.
●  Provide stable output voltage through boost and buck stabilizer
●  Built-in thermal switch for over-temperature protection
●  High/low voltage cut-off and overload protection
●  Delay reconnection selector (2/10/30 seconds)
●  Power switch with resettable circuit breaker
●  Modem / phone line surge protection
●  Surge suppression 320 Joules
MODEL PlusShield 9-3000G PlusShield 9-4000G PlusShield 9-5000G
CAPACITY 3000VA/1500W 4000VA/2000W 5000VA/2500W
INPUT
Voltage 220/230Vac
Voltage Range -25%, +20%
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage 220/230Vac
Voltage Range +/-10%
Frequency 50Hz or 60Hz
Steps of Regulation 2 Boost + 1 Buck
Outlet: Schuko 6pcs for AVR/Surge protectoed
PROTECTION
Overload Manual Reset Circuit Switch
Over-temperature Thermal Switch
Over-voltage Cut-off Yes
Low-voltage Cut-off Yes
Surge Suppression 320 Joules
Delay Timer Selectable 2 sec. / 10 sec. / 30 sec.
STATUS INDICATOR
LCD display Input voltage, Output voltage, Normal / Low Volt. / Boost / Buck / High Volt. / Overheat / Overload / Delay information
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity <95% (Non-condensing)
Acousitc Noise <40dB at 1M
PHYSICAL
Dimension (D*W*H) 250*157*157mm
*Product specifications are subject to change without further notice.

*The capacity of connected loading do not exceed the capacity of AVR.
