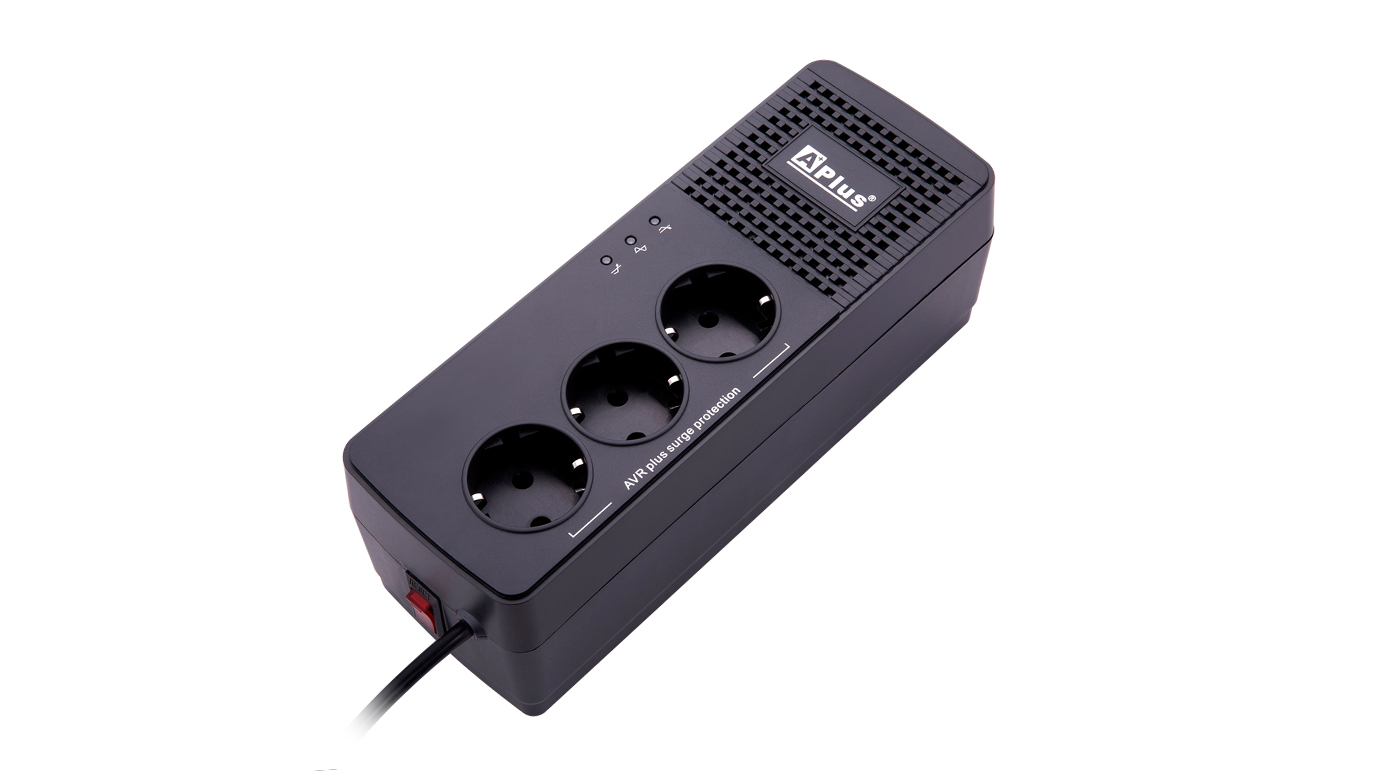

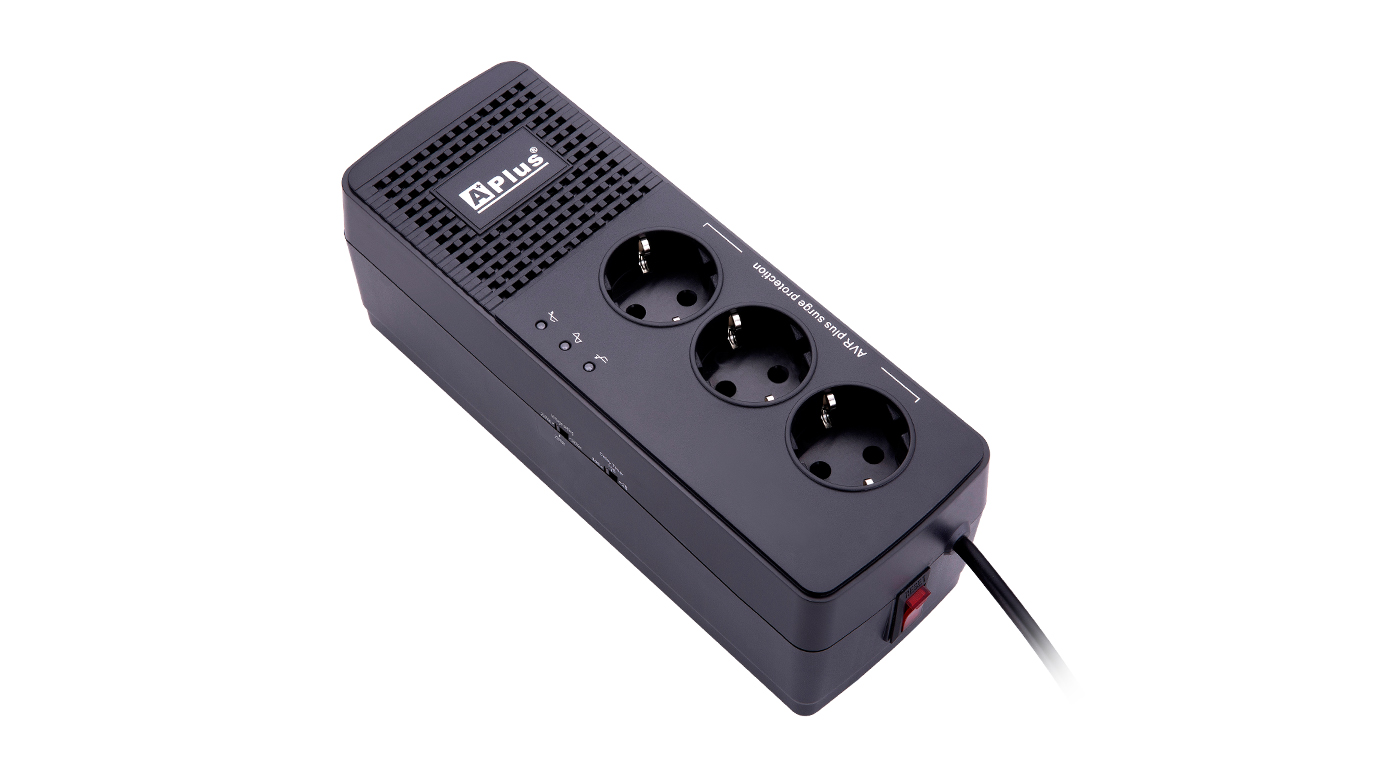

PlusShield 5 Series
1000VA to 2200VA
The PlusShield 5 Series 1000VA to 2200VA is designed to automatically maintain a constant voltage level to protect sensitive electronics from unsafe fluctuations such as power sag, surge, spike or over voltage.
Featuring 1000VA to 2200VA integrated with 3 steps regulation, 3 AVR protected outlets, 2/10/30 sec. delay reconnection and LED status indicator in a compact wall-mount slim unit. PlusShield 5 Series fits into working environments perfectly to protect any sensitive electronics in home or office.
●  Provide stable output voltage through boost and buck stabilizer
●  Built-in thermal switch for over-temperature protection
●  High/low voltage cut-off and overload protection
●  Delay reconnection selector (2/10/30 seconds)
●  Power switch with resettable circuit breaker
●  Microprocessor controlled design
●  Surge suppression 320 Joules
MODEL PlusShield 5-1000G PlusShield 5-1200G PlusShield 5-2200G
CAPACITY 1000VA/500W 1200VA/600W 2200VA/1100W
INPUT
Voltage 220/230Vac
Voltage Range -25%, +20%
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage 220/230Vac
Voltage Range +/-10%
Frequency 50Hz or 60Hz
Steps of Regulation 2 Boost + 1 Buck
Outlet: Schuko 3pcs AVR/surge protectoed
PROTECTION
Overload Manual Reset Circuit Switch
Over-temperature Thermal Switch
Over-voltage Cut-off Yes
Low-voltage Cut-off Yes
Surge Suppression 320 Joules
Delay Timer Selectable 2 sec. / 10 sec. / 30 sec.
STATUS INDICATOR
AC Normal Green
Boost Yellow
Buck Yellow
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity <95% (Non-condensing)
Acousitc Noise <40dB at 1M
*Product specifications are subject to change without further notice.

*The capacity of connected loading do not exceed the capacity of AVR.
