PlusPRO 2 Series Rack/Tower
6000VA to 10000VA

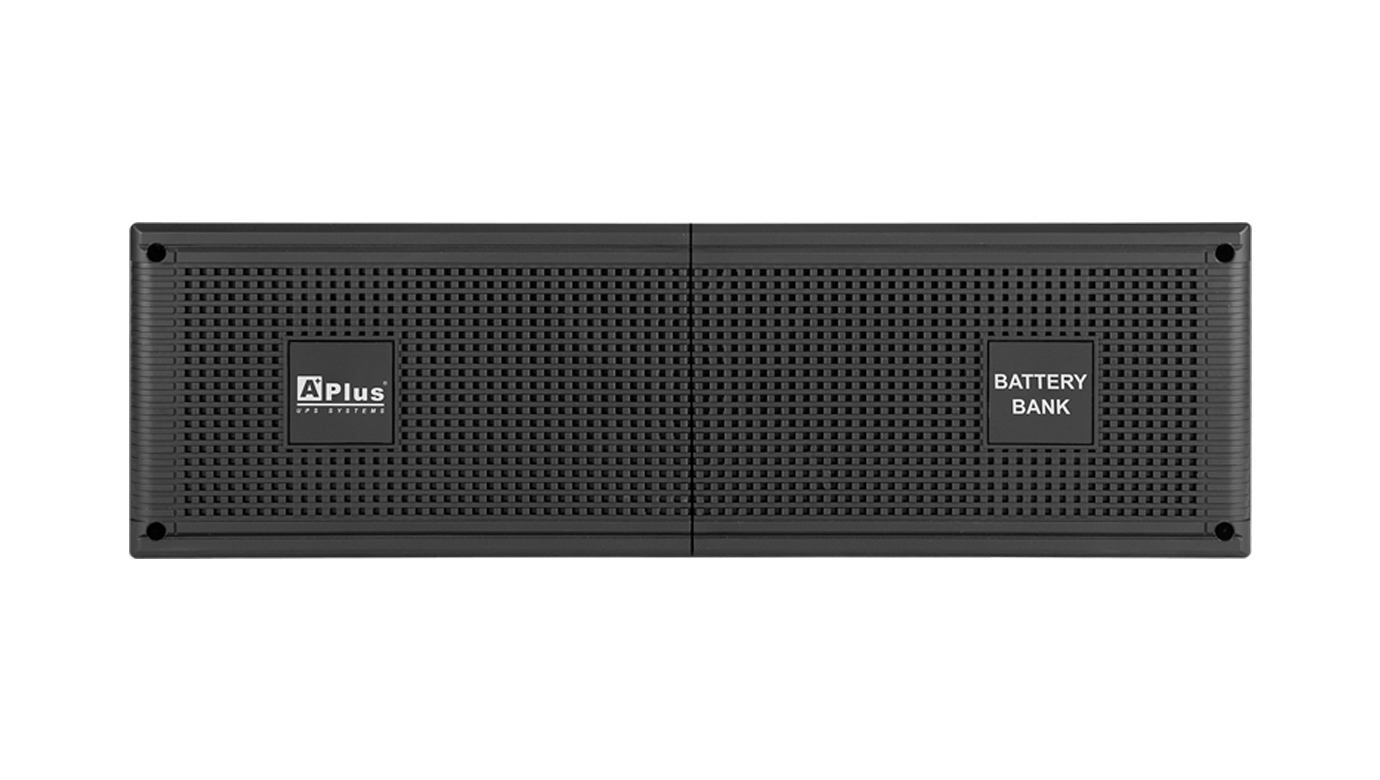

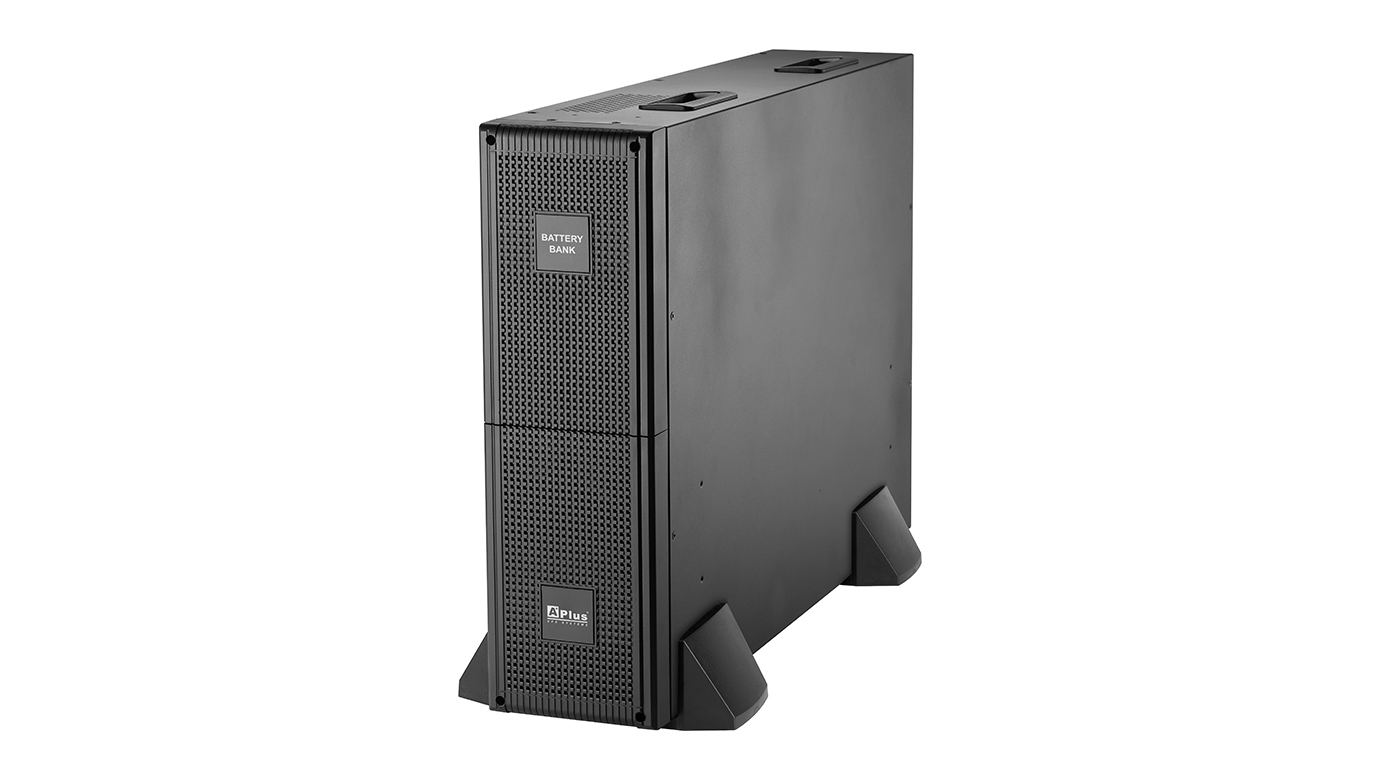

Battery Pack
The PlusPRO 2BB-240V-7AH external battery pack is connected to PlusPRO 2 Series ; Rack/Tower 6000VA UPS models. The PlusPRO 2BB-240V-9AH external battery pack is connected to PlusPRO 2 Series ; Rack/Tower 10000VA UPS models. External battery pack provides continuous power from the batteries for flexible runtime extension of UPS systems.
●  Extended-run battery pack provide flexible runtime for UPS systems
●  Advanced battery management included
●  Multiple battery pack configuration
MODEL PlusPRO 2BB-240V-7AH PlusPRO 2BB-240V-9AH
BATTERY
Type Maintenance-free Lead Acid battery
Voltage 240VDC 240VDC
Capacity 12V/7AH*20pcs 12V/9AH*20pcs
Expected Battery Life 3-5 years
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
PHYSICAL
Rack Height 3U
Dimension (D*W*H) 610*440*135mm
*Product specifications are subject to change without further notice.
