PlusPRO 1 Series Tower
6000VA to 10000VA
Battery Pack
Battery Pack

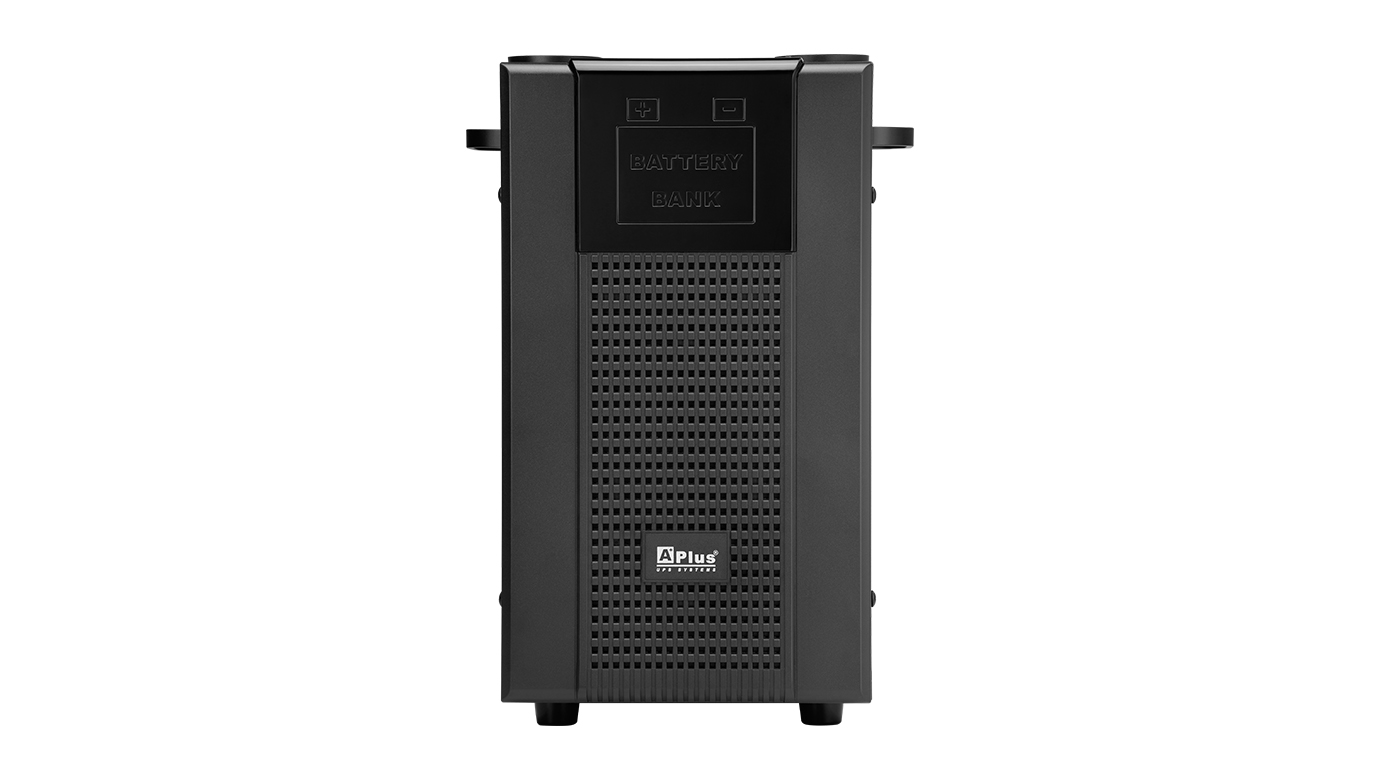

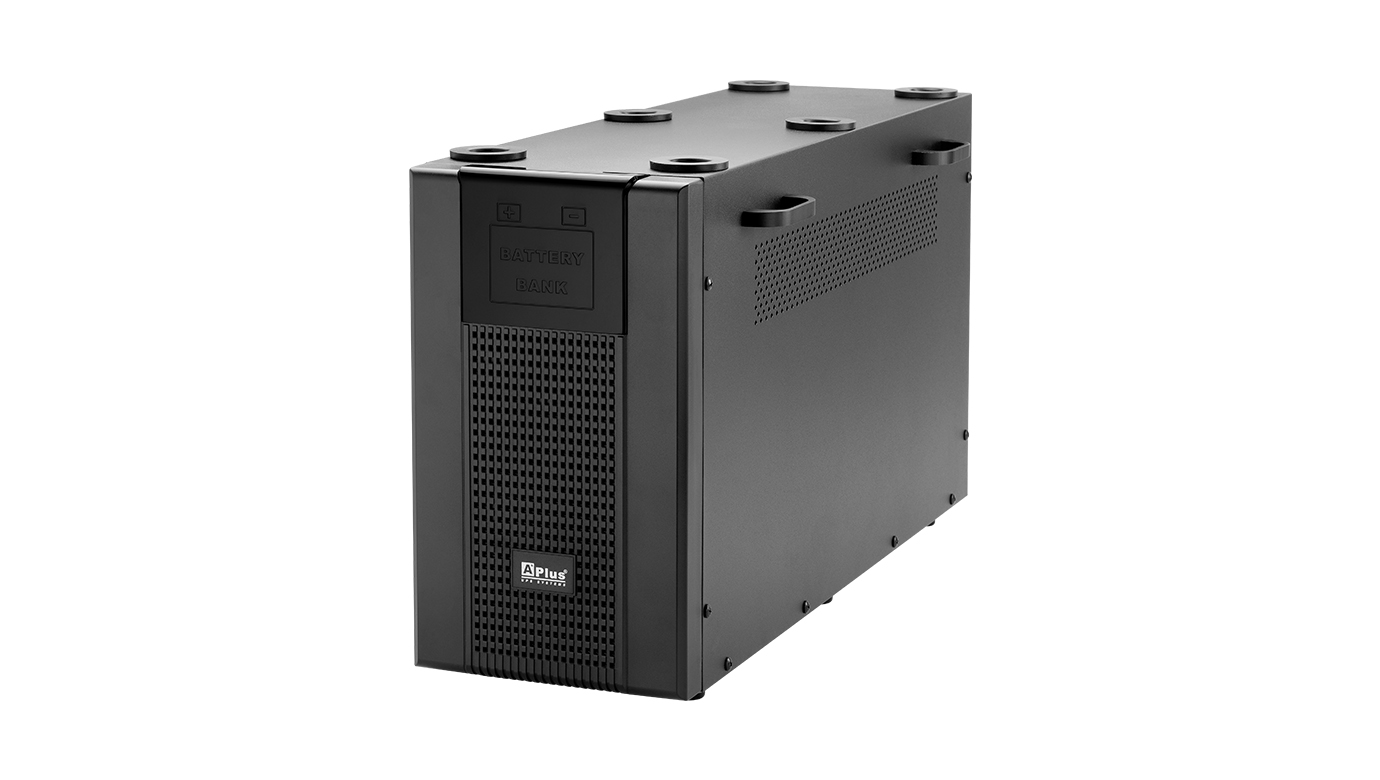

The PlusPRO 1 BB-240V-7AH external battery pack is connected to PlusPRO 1 Series Tower 6000VA UPS models. The PlusPRO 1 BB-240V-9AH external battery pack is connected to PlusPRO 1 Series Tower 10000VA UPS models.
External battery pack provides continuous power from the batteries for flexible runtime extension of UPS systems.
External battery pack provides continuous power from the batteries for flexible runtime extension of UPS systems.
● Extended-run battery pack provide flexible runtime for UPS systems
● Advanced battery management included
● Multiple battery pack configuration
● Advanced battery management included
● Multiple battery pack configuration
| MODEL | PlusPRO 1BB-240V-7AH | PlusPRO 1BB-240V-9AH |
| BATTERY | ||
| Type | Maintenance-free Lead Acid battery | |
| Voltage | 240VDC | 240VDC |
| Capacity | 12V/7AH*20pcs | 12V/9AH*20pcs |
| Expected Battery Life | 3-5 years | |
| ENVIRONMENT | ||
| Operating Temperature | 0°C-40°C (32°F-104°F) | |
| Humidity | 0-95% (Non-condensing) | |
| PHYSICAL | ||
| Dimension (D*W*H) | 623*192*347mm | |
