PlusCharger 7 Series
PD 20W

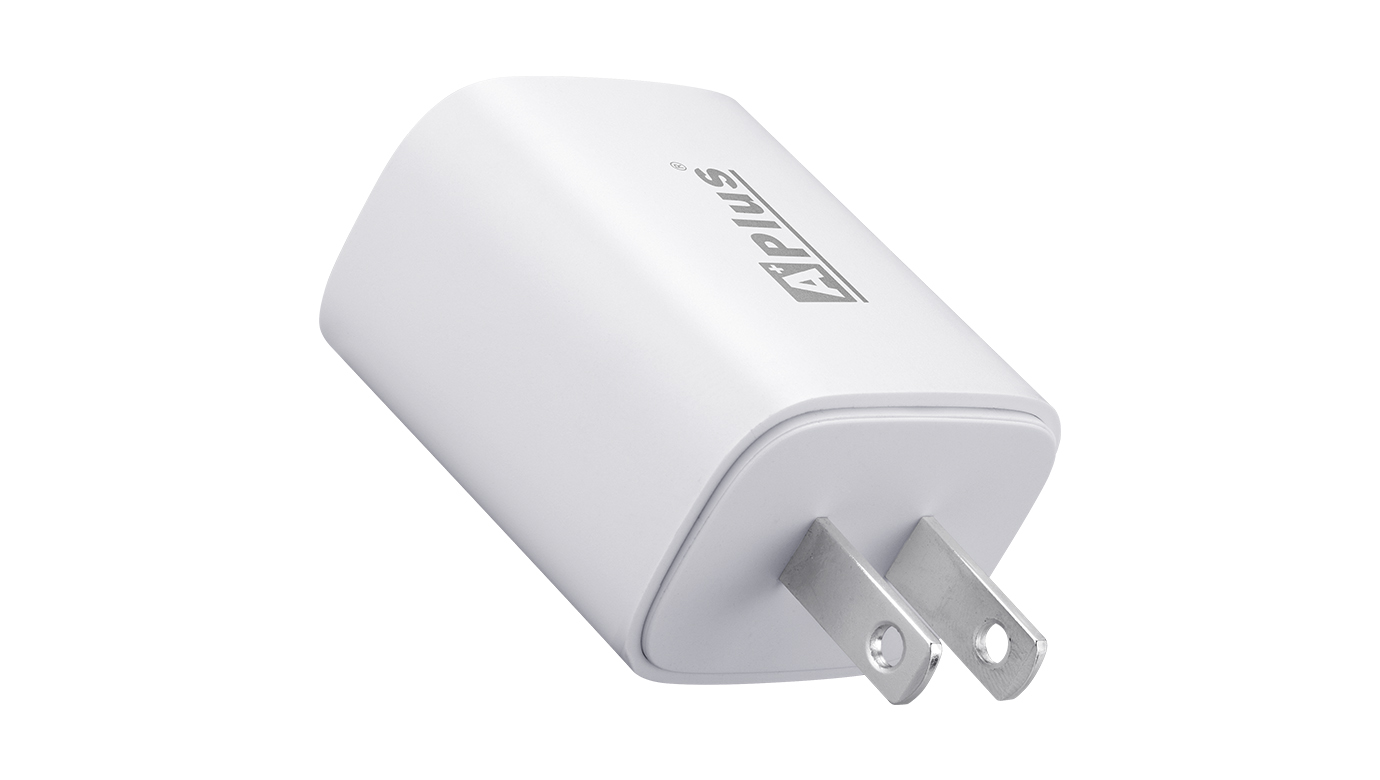

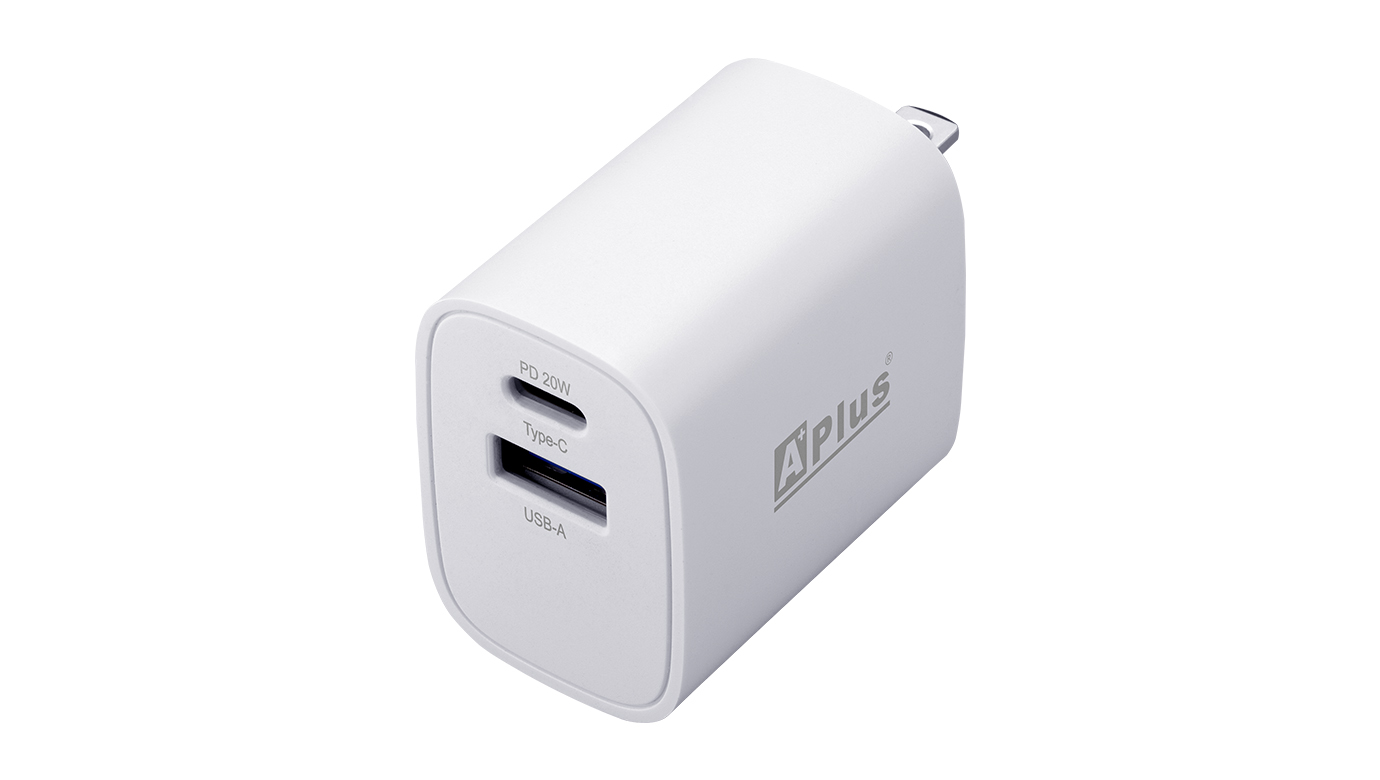

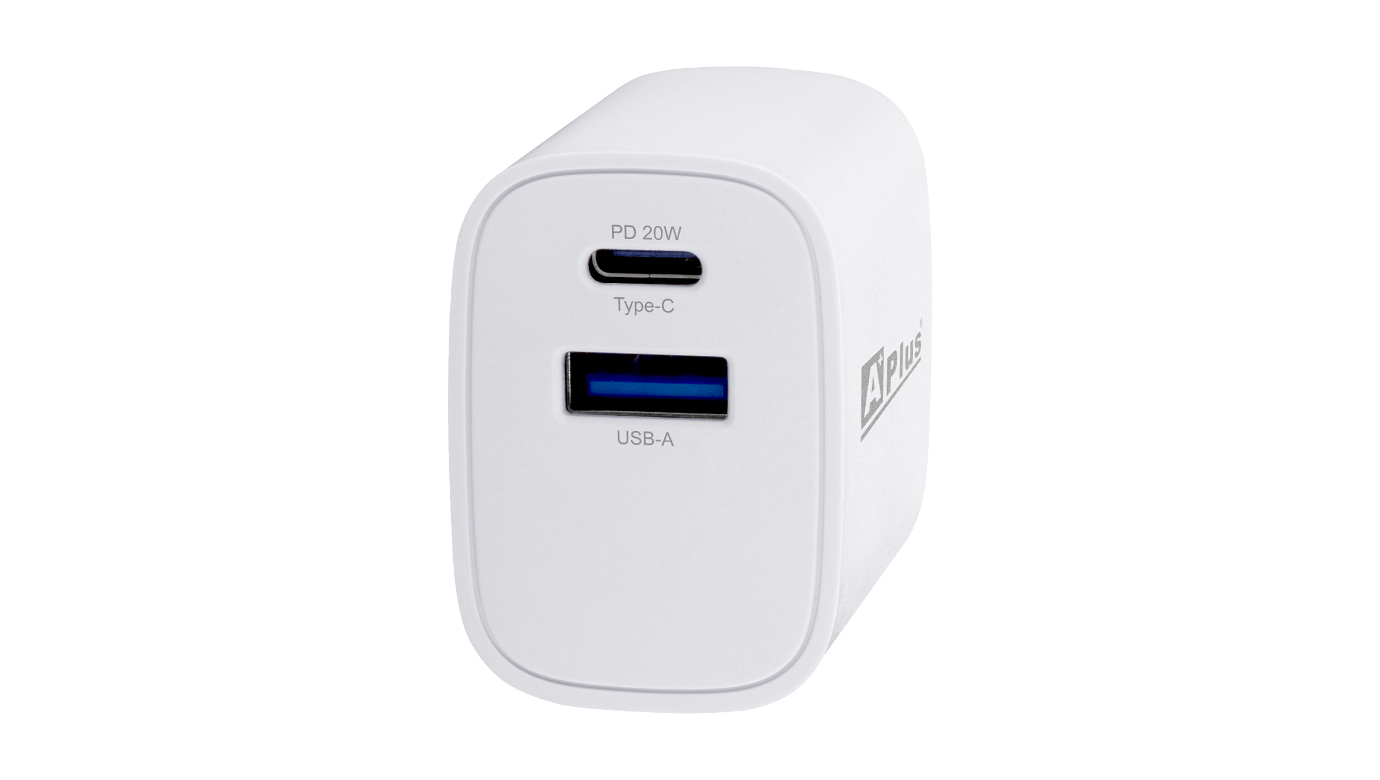

The PlusCharger 7-PD20W is a 20W Power Adaptor with dual USB-C & USB-A charge ports that can quickly and efficiently charge your USB devices. It is compatible with PD 2.0/3.0, QC 2.0/3.0, FCP, SCP fast charging protocol and supports charging mode of BC1.2/Samsung 2A/Apple 2.4A. The USB DCP automatically detects the charging mode for the different USB device and adjusts to maximum charge current. Built-in intelligent IC chip provides multiple security protection against short circuit, temperature control, overvoltage and overcharge. The compact design of PlusCharger 7-PD20W makes it ideal to use at home, in the office, or during travelling.
●  Compatible with fast charging protocol of PD 2.0/3.0, QC 2.0/3.0, FCP, SCP and support charging mode of BC1.2/Samsung 2A/Apple 2.4A
●  USB DCP automatically detects the charging mode for the different USB device and adjusts to maximum charge current
●  Built-in intelligent IC chip provides protection against short circuit, temperature control, overvoltage and overcharge
●  Compact & portable design makes it ideal to use at home or office, or during traveling
●  Wide compatibility with various USB devices
●  Powerful(Maximum) 20W output
MODEL PlusCharger 7-PD20W
Wattage 20W
INPUT
Voltage 100-240Vac
Frequency 50/60Hz
Current 0.55A
OUTPUT
USB-C (PD) 5VDC⎓3A or 9VDC⎓2.22A or 12VDC⎓1.67A
Normal Output: 5VDC⎓3A
USB-A (QC) 5VDC⎓3A or 9VDC⎓2A or 12VDC⎓1.5A
Normal Output: 5VDC⎓3A
Dual USB-C (PD) & USB-A (QC) 5VDC⎓3A Max.
ENVIRONMENT
Operating Temperature  0°C-40°C (32°F-104°F)
PHYSICAL
Net Weight 46g
Dimension (D*W*H) 60*30*40mm
*Product specifications are subject to change without further notice.
