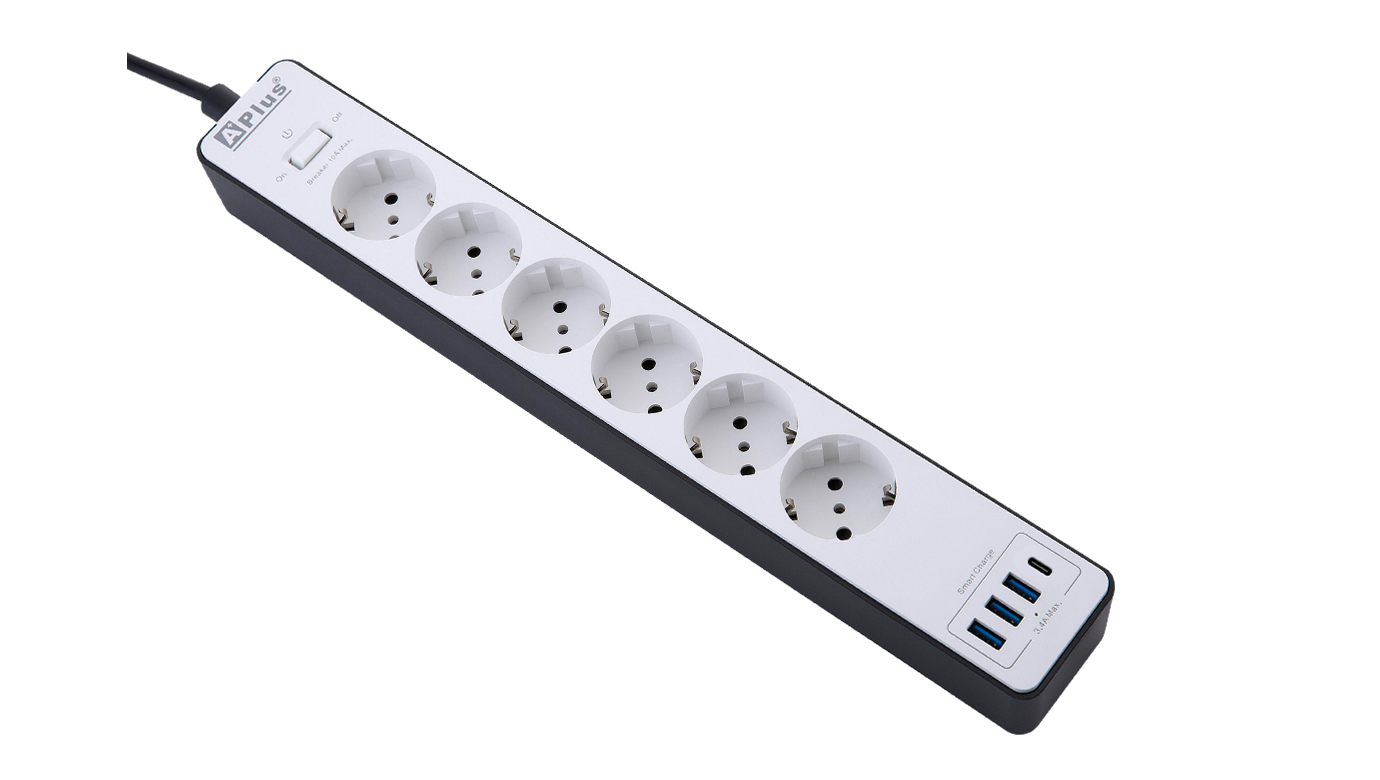

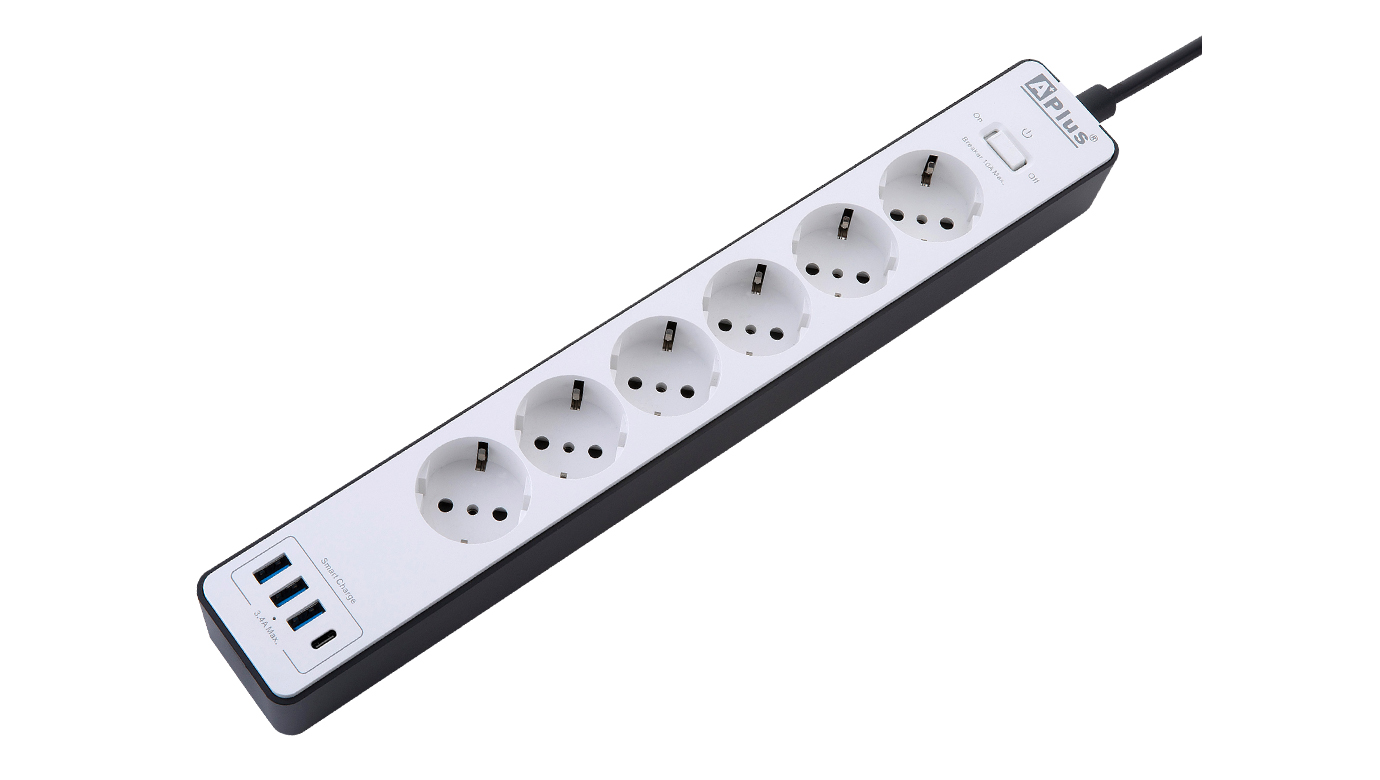

PlusCharger 3 Series
10AMPS
PlusCharger 3WB Series
The PlusCharger 3 Series is a Smart Charger Station rated at 10 Amps, it provides overload protection through power switch with built-in resettable circuit breaker. Built in MOV excess electricity for additional protection. It also equipped with smart charging station, SC-5VDC, USB charging port for smart devices power charging. The PlusCharger 3 Series can ensure electrical safety and also provide power for devices with cables that can't reach any nearby electrical outlets.
Smart Charging Station 5VDC USB Charging Port
Provide Lightning, Surge, Overload Protection
Power Switch with Resettable Circuit Breaker
Absorbs Excess Electricity through MOVs
Grounded Multi-outlet Design
Fire Retardant Plastic Material
Surge Suppression 900 Joules
Wall Mountable
MODEL PlusCharger 3WB-10A-18M
INPUT
Voltage Range 220-240Vac
Frequency 50Hz or 60Hz
Type of Input German plug
Cable Length 1.8M (5.9ft), 1 mm²
OUTPUT
Power Rating 10A
Type of Output: Schuko 6 Receptacles
USB Charging Port 5VDC, 4 ports, 3.4A Max.
PROTECTION
Surge Rating 900 Joules
Overload Protection Yes
Power Safety Shutdown Yes
PHYSICAL
Dimensions 375*55*43mm
*Product specifications are subject to change without further notice.
*The capacity of connected loading do not exceed the capacity of surge protector.
PlusCharger 3 Series Brochure
10AMPS
