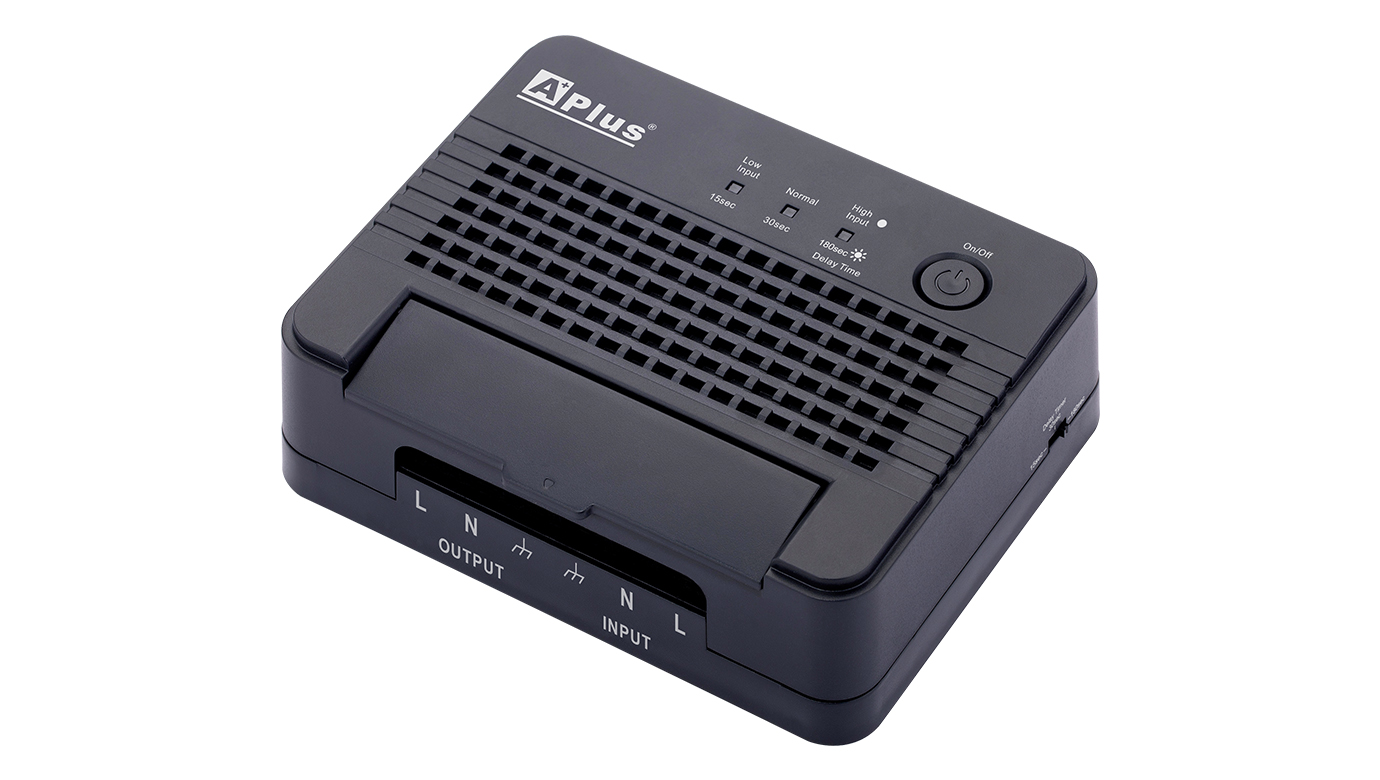

PlusGuard 4 Series
30AMPS

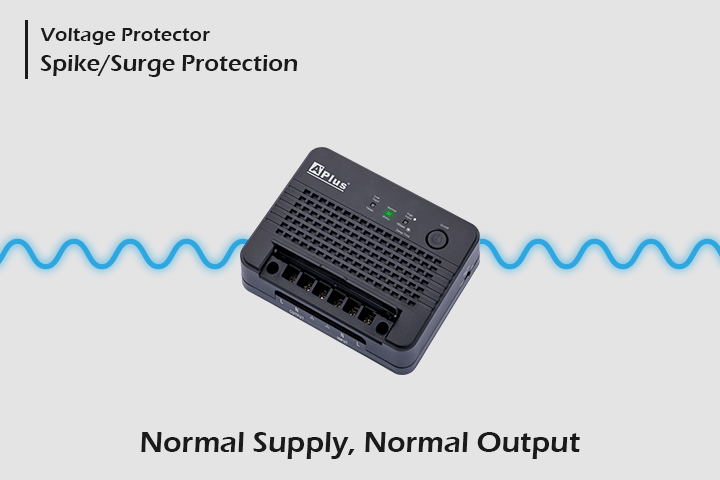

The PlusGuard 4-30A is a Voltage Protector rated at 30 Amps, prevents damages to electrical and electronic equipment from power fluctuation, especially over and under voltage levels of long duration.
The 15 sec / 30 sec / 180 sec delay reconnection provides protection against power-back surge commonly experienced after resumption of power in a power cut situation. Build-in MOV excess electricity for additional protection.
The PlusGuard 4-30A will automatically guard your equipment against brownouts or transient spikes induced by lighting or power line failure.
The 15 sec / 30 sec / 180 sec delay reconnection provides protection against power-back surge commonly experienced after resumption of power in a power cut situation. Build-in MOV excess electricity for additional protection.
The PlusGuard 4-30A will automatically guard your equipment against brownouts or transient spikes induced by lighting or power line failure.
● Delay reconnection selector 15 sec / 30 sec / 180 sec

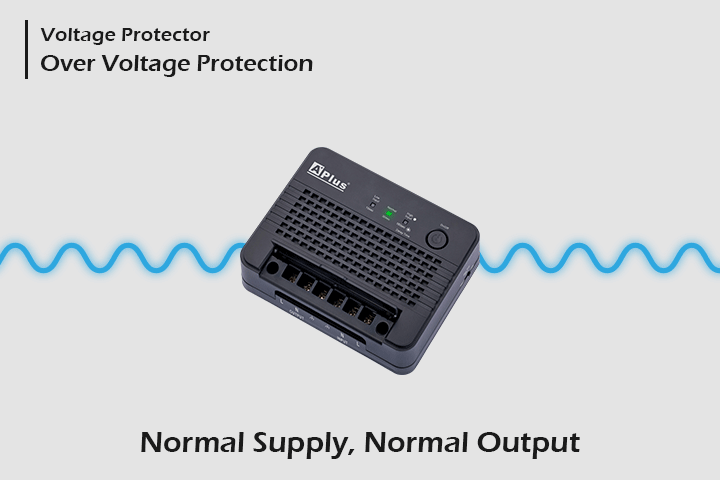

● High voltage and low voltage cut-off protection

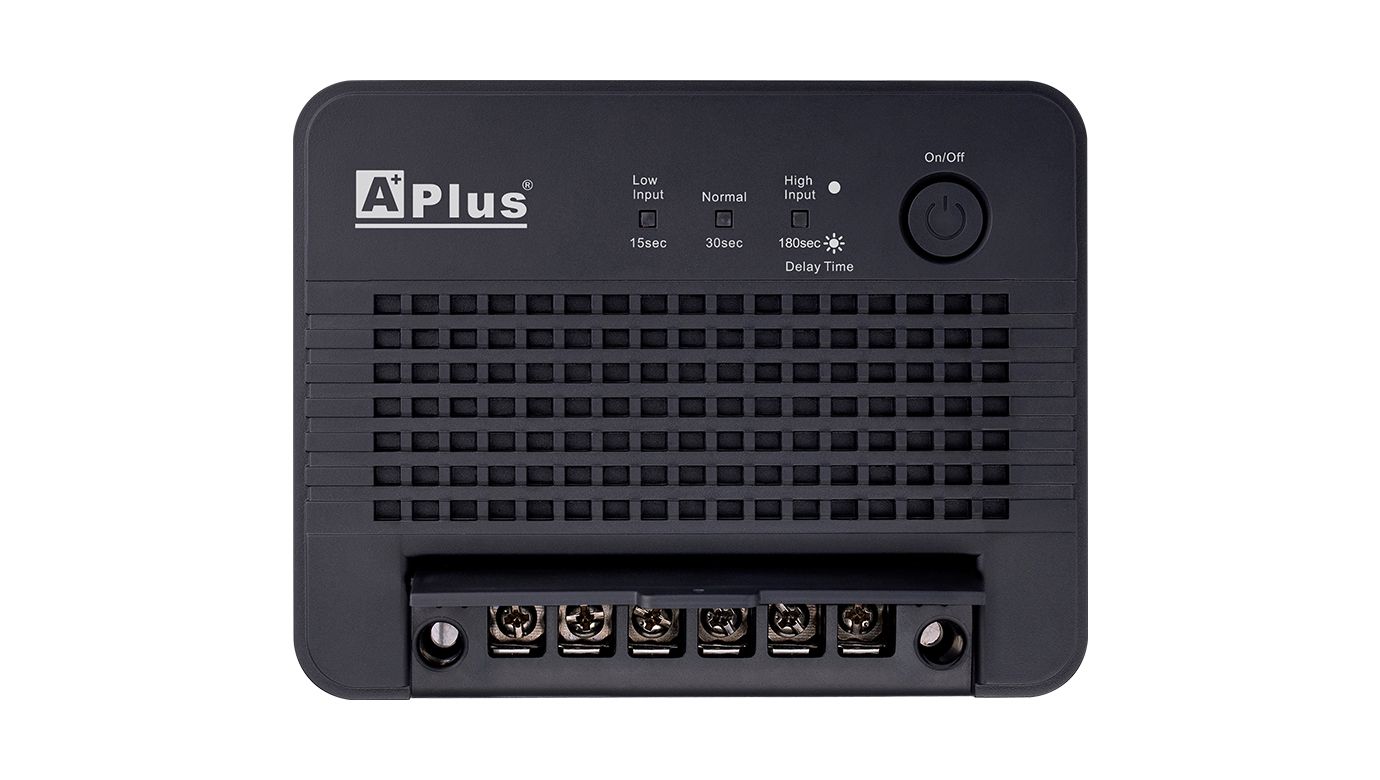

● LED indicators provide status information
● Absorbs excess electricity through MOVs
● Microprocessor controlled design
● Surge suppression 990 Joules
● High voltage and low voltage cut-off protection
● LED indicators provide status information
● Absorbs excess electricity through MOVs
● Microprocessor controlled design
● Surge suppression 990 Joules
| MODEL | PlusGuard 4-30A |
|
| INPUT |
||
| Max. Current | 30 Amps |
|
| Nominal Voltage | 110/115/120Vac | 220/230/240Vac |
| Line Low Loss | 90Vac | 180Vac |
| Line Low Comeback | 95Vac | 190Vac |
| Line High Loss | 140Vac | 265Vac |
| Line High Comeback | 137Vac | 260Vac |
| Frequency | 50/60Hz (Auto-sensing) |
|
| Spike Protection | 990 Joules |
|

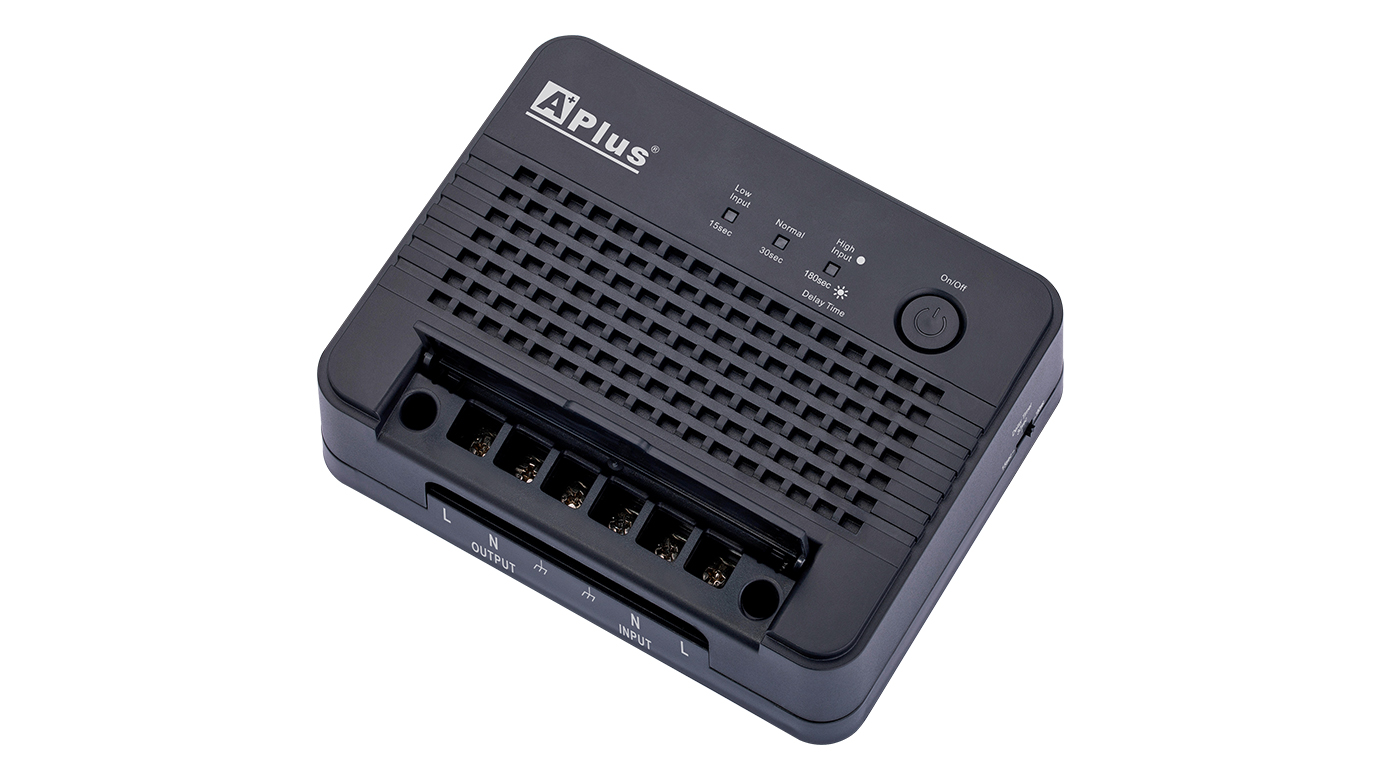

| Connector | Terminal block (L-N-G) |
|
| OUTPUT |
||
| Nominal Voltage | 110/115/120Vac | 220/230/240Vac |
| Frequency | 50Hz or 60Hz |
|
| Delay Timer | 15 sec / 30 sec / 180 sec |
|
| Connector | Terminal block (L-N-G) |
|
| INDICATOR |
||
| LED | 3 LEDs |
|
| ENVIRONMENT |
||
| Operating Temperature | 0°C-40°C (32°F-104°F) |
|
| Humidity | 0-95% (Non-condensing) |
|
| Acousitc Noise | <40dB at 1M |
|
| PHYSICAL |
||
| Dimension (D*W*H) | 125*100*40mm | |
| Net Weight | 220g |
|
*The capacity of connected loading do not exceed the capacity of voltage protector.
